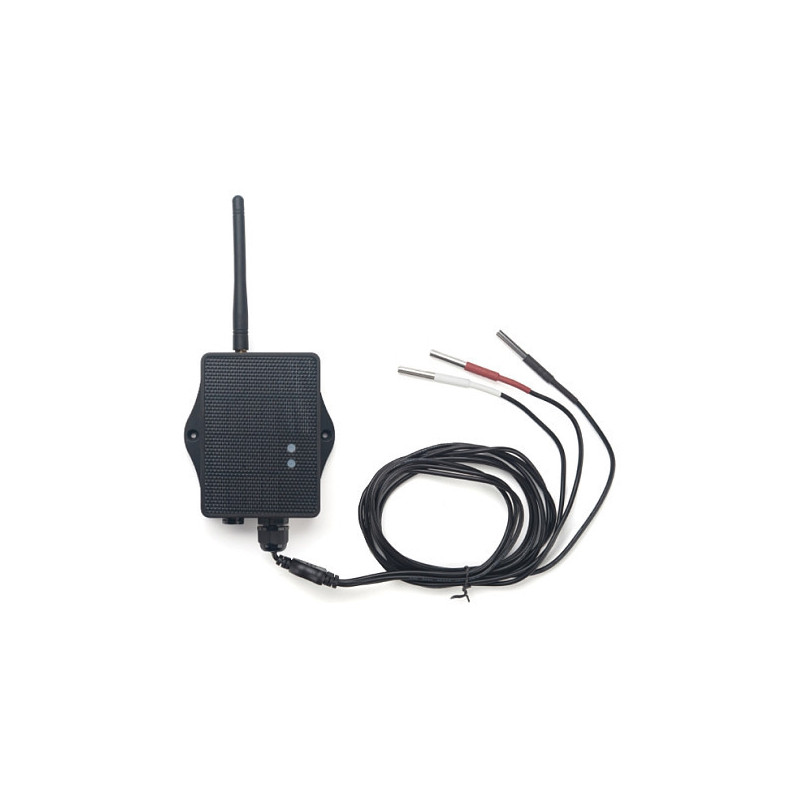

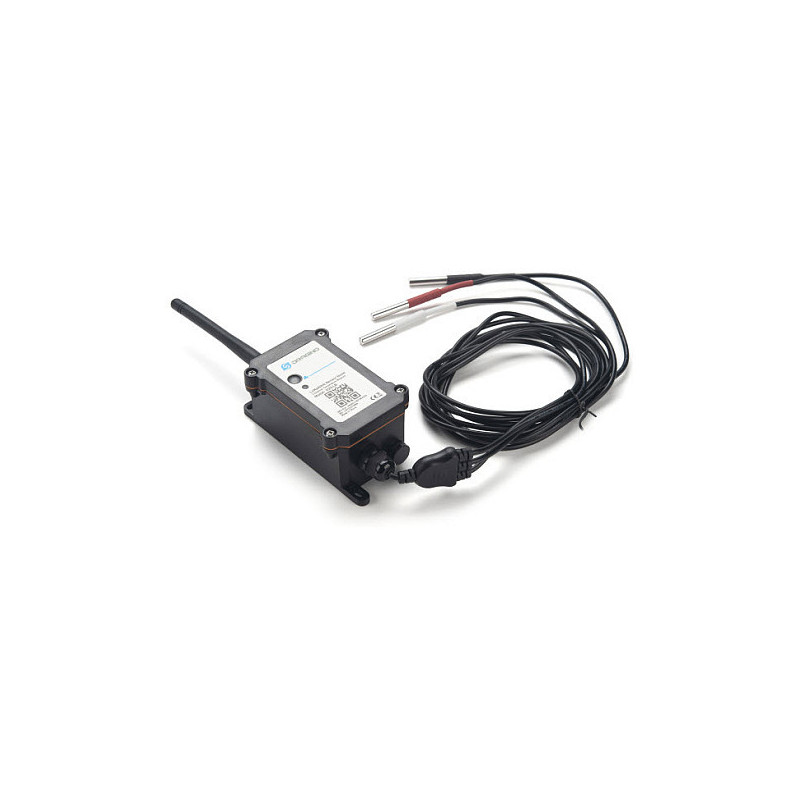

Dragino Technology D23-LB / LS

Dragino Technology D23-LB/LS. Purpose: Outdoor, Sensor type: Temperature sensor, Type: Freestanding. Battery technology: Lithium Thionyl Chloride (LiSoCl2), Battery life (max): 5 year(s). Width: 120 mm, Depth: 55 mm, Height: 200 mm. Quantity per pack: 1 pc(s)

The Dragino D23-LB/LS is a LoRaWAN Temperature Sensor for Internet of Things solution. D23-LB/LS will convert the Temperature reading to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

The LoRa wireless technology used in D23-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

The temperature sensor used in D23-LB/LS can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).

D23-LB/LS supports temperature alarm feature, user can set temperature alarm for instant notice. D23-LB/LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.

D23-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

D23-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use up to 5 years.

Each D23-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features

Purpose: Outdoor
Sensor type: Temperature sensor
Type: Freestanding
Connectivity technology: Wireless
Ports quantity: 1
Temperature measuring range: -55 - 125 °C

Battery

Battery technology: Lithium Thionyl Chloride (LiSoCl2)
Number of batteries supported: 1
Battery life (max): 5 year(s)

Weight & dimensions

Width: 120 mm
Depth: 55 mm
Height: 200 mm
Weight: 372 g

Packaging content

Quantity per pack: 1 pc(s)
