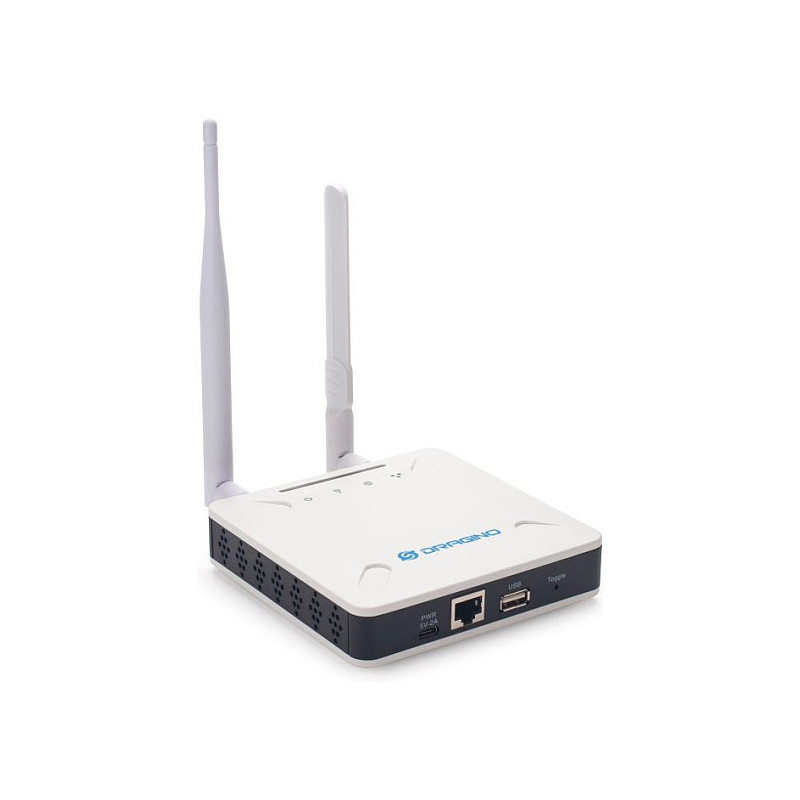

Dragino Technology LPS8v2 gateway / controller

Dragino Technology LPS8v2. Product colour: White. Antenna type: External, Antenna gain level (max): 27 dBi. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Receiver sensitivity: -140dBm. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

The LPS8v2 is an open-source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.

The LPS8v2 is fully compatible with LoRaWAN protocol. It supports different kinds of LoRaWAN Network Connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms in the market.

LPS8v2 also includes a built-in LoRaWAN Server and IoT server, which provide the possibility for the system integrator to deploy the IoT service without cloud service or 3rd servers.

Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network.

LPS8v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.

Design

Product colour: White

Features

Antenna type: External
Antenna gain level (max): 27 dBi
Antennas quantity: 2

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A7
Processor frequency: 1200 MHz
Internal memory: 512 MB
Flash memory: 4000 MB

Data transmission

Receiver sensitivity: -140dBm

Network

Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Feature: Wireless connection

Security

Security algorithms: SSH

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)

Management features

Feature: USB-based deployment
Feature: Graphical user interface (GUI)

Power

Input voltage: 5 V
Input current: 2 A

Weight & dimensions

Width: 120 mm
Depth: 120 mm
Height: 30 mm
Weight: 187 g

Packaging data

Package width: 145 mm
Package depth: 135 mm
Package height: 60 mm
Package weight: 300 g

Packaging content

Feature: AC adapter included
Feature: Manual
Cables included: USB Type-C

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -20 - 70 °C
