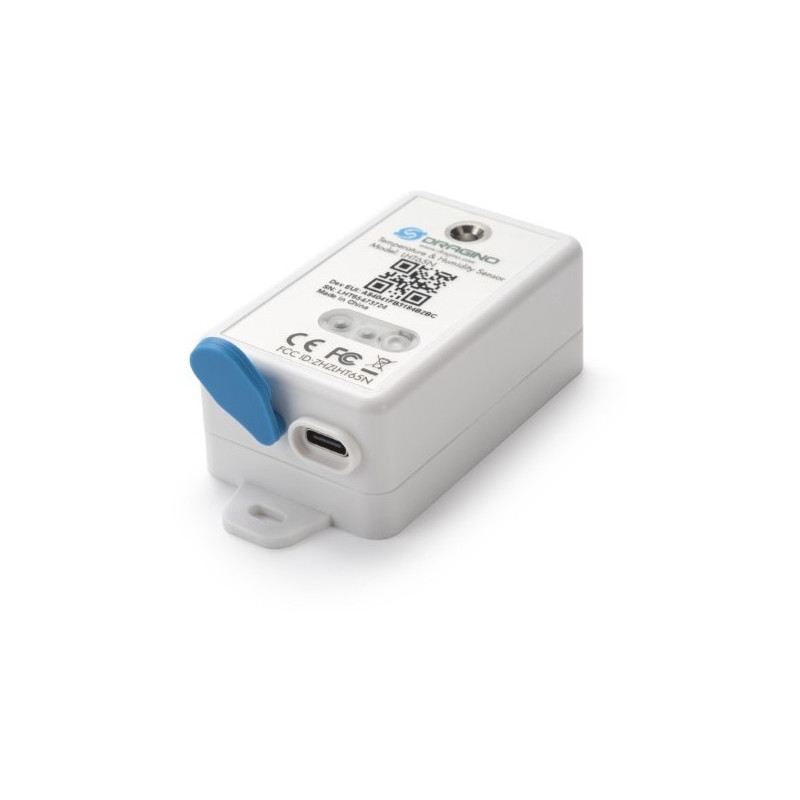

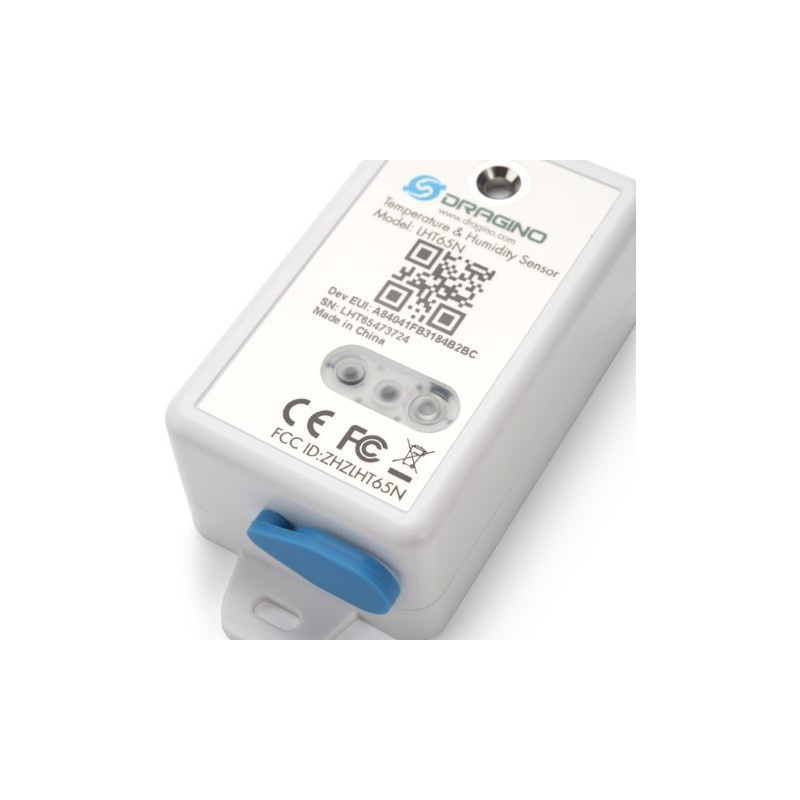

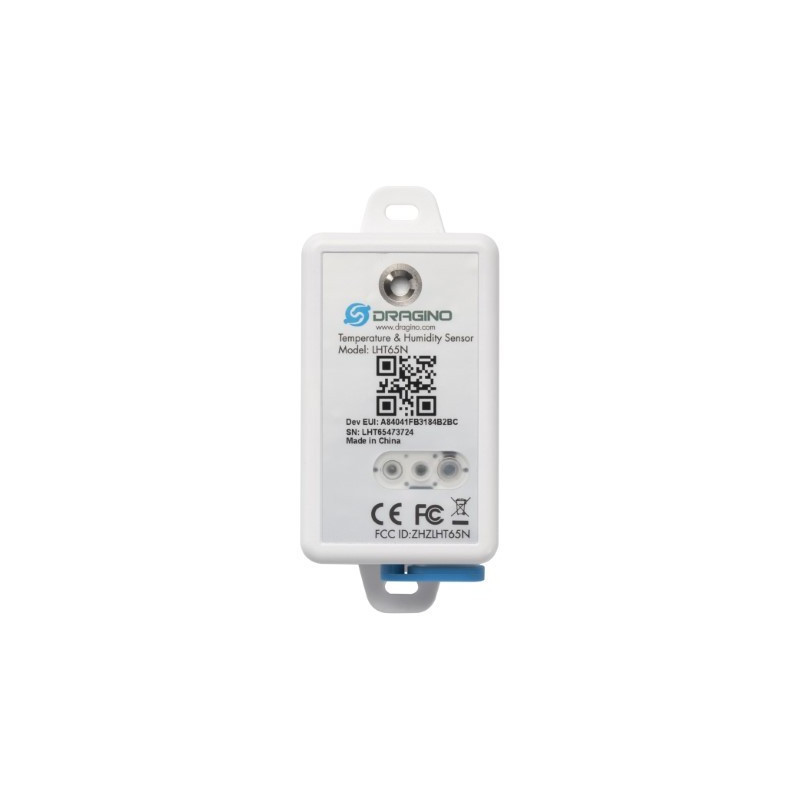

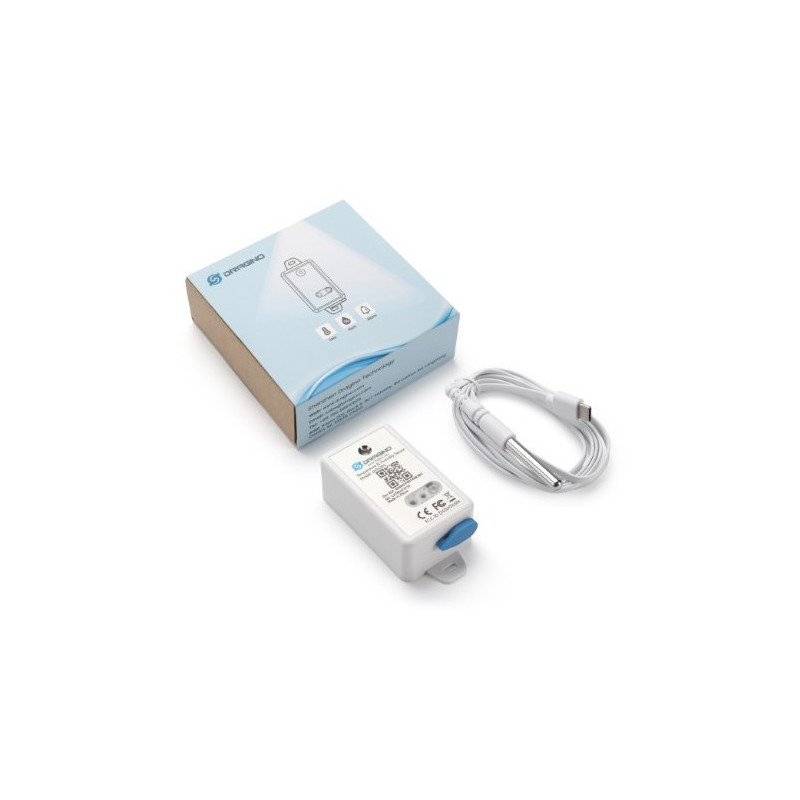

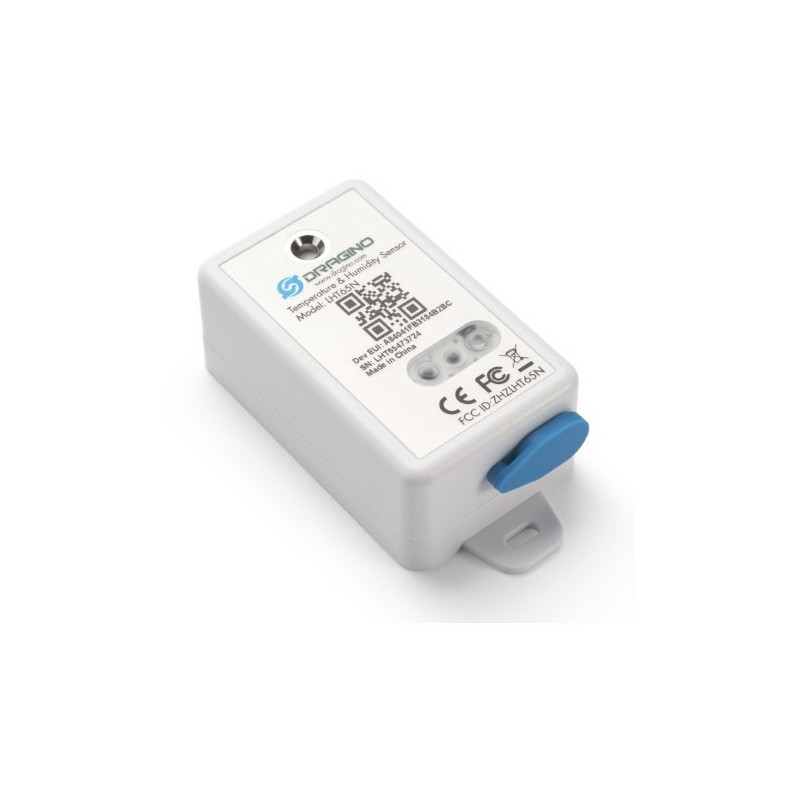

Dragino Technology LHT65S

Dragino Technology LHT65S. Purpose: Indoor/outdoor, Sensor type: Temperature humidity sensor, Type: Freestanding. Width: 95 mm, Depth: 40 mm, Height: 28 mm. Package width: 145 mm, Package depth: 80 mm, Package height: 50 mm
The Dragino LHT65S Temperature Humidity sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature Humidity sensor and has an external sensor connector to connect to an external Temperature Sensor.
The LHT65S allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.
LHT65S has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.
LHT65S is full compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.
LHT65S supports Datalog feature. It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.
*The actual battery life depends on how often to send data, please see battery analyzer chapter.

Features

Purpose: Indoor/outdoor
Sensor type: Temperature humidity sensor
Type: Freestanding
Connectivity technology: Wireless
Ports quantity: 1
Temperature measuring range: -40 - 80 °C
Humidity measuring range: 0 - 96%
Accuracy: 0.01 °C
Accuracy: 3%

Weight dimensions

Width: 95 mm
Depth: 40 mm
Height: 28 mm
Weight: 105 g

Packaging data

Package width: 145 mm
Package depth: 80 mm
Package height: 50 mm
Package weight: 170 g
