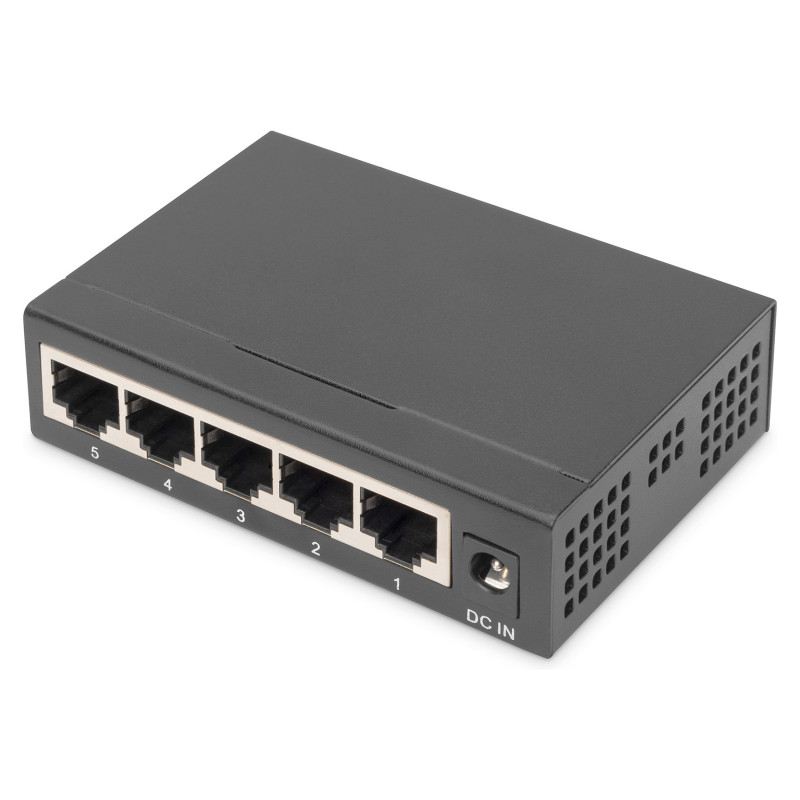

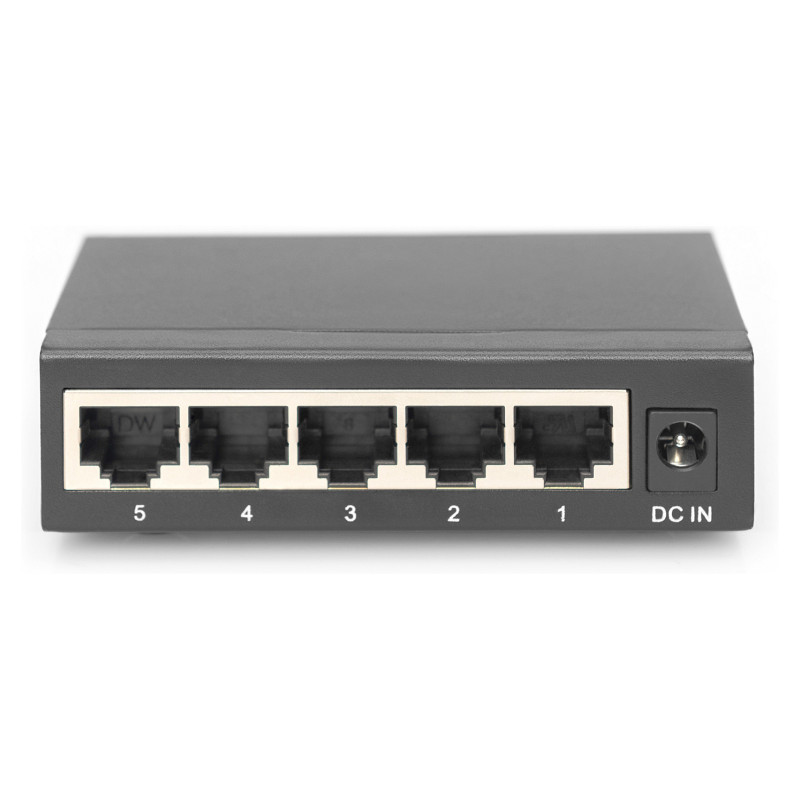

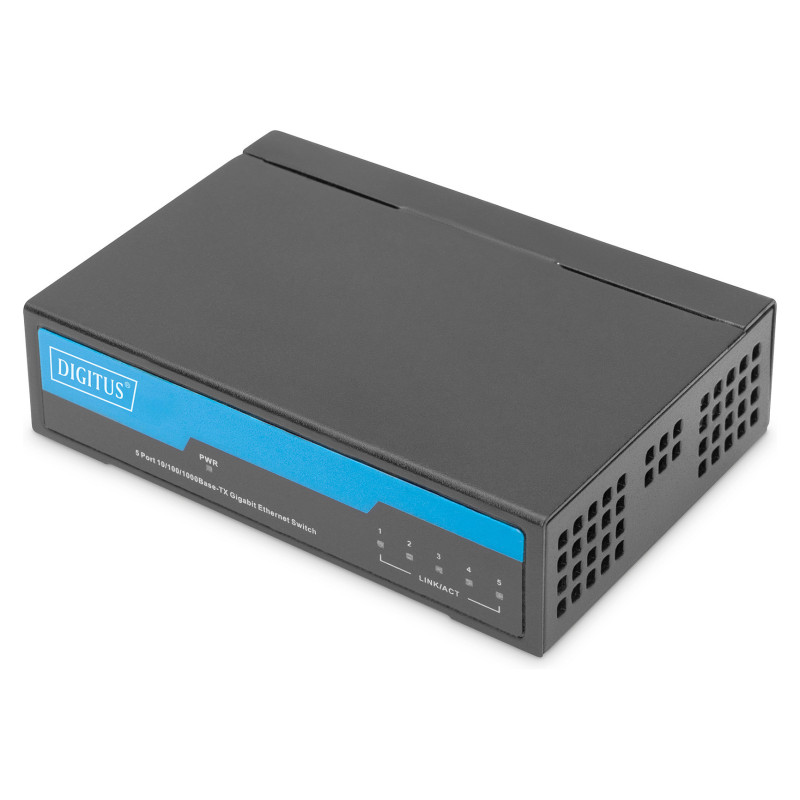

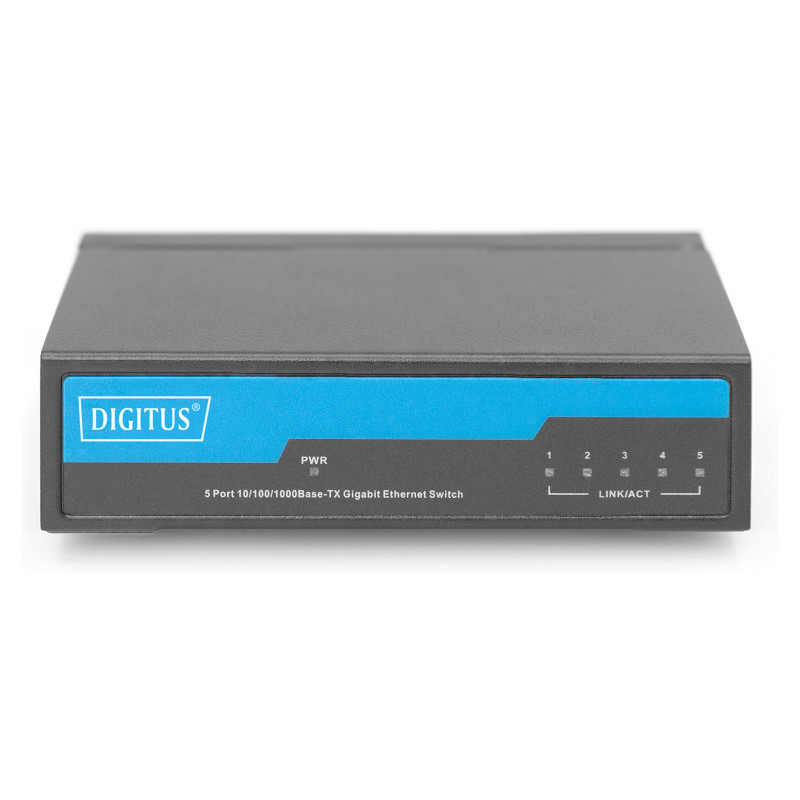

Digitus DN-80202-1 network switch

Digitus 5 Port Gigabit Switch, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V

Fast and easy expansion of your network - Plug and Play

- Expands your network by 4 additional ports
- Auto-MDI/MDIX & Auto-negotiation
- Energy-Efficient Ethernet (EEE) IEEE802.3az
- Full-duplex flow control IEEE802.3x
- Fanless design without noise
- Sturdy metal housing
- Plug and Play - no configuration or software required
- Suitable for use on the desktop
- Ideal for home and small offices

The 5-Port Gigabit Switch from DIGITUS® is perfectly suited for the easy expansion of your network. Thanks to its fanless design, the switch operates completely noise-free and does not require configuration. Each port can be used as a LAN or uplink port, the cable and network speed are detected automatically. The switch also supports the energy saving features IEEE802.3az & Full-Duplex Flow Control IEE802.3x. Real Plug and Play - Just plug in the network cable and get started.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 10 Gbit/s
Throughput: 7.44 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward

Design

Product colour: Black
LED indicators: Activity, Link, Power

Performance

Feature: Plug and Play
Feature: Fanless

Power

Power source: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 5 V
Input current: 1 A
Power consumption (max): 3 W
Power plug type: Type C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 69 mm
Depth: 92 mm
Height: 25 mm
Weight: 180 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
