Digitus DS-55500 AV extender

Digitus 4K HDMI extender set, HDBaseTTM, 4K/30Hz, 70 m. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Output current: 2 A, Power consumption (typical): 8 W. Dimensions (WxDxH): 66.5 x 98.5 x 23 mm. Package width: 149 mm, Package depth: 199 mm, Package weight: 896 g

Extends the maximum length for HDMI cables to up to 70 m using only a single network cable between a transmitter and a receiver unit

- Extends the maximum length for HDMI cables to up to 70 m using only a single network cable between a transmitter and a receiver unit
- Extends 4K video content up to 40 m with a CAT 6 cable
- Provides simple and fast distribution for HDMI video signals - place your screens wherever you want
- Supports 4K2K (30Hz), 4096 x 2160p resolution
- Uses HDBaseTTM technology

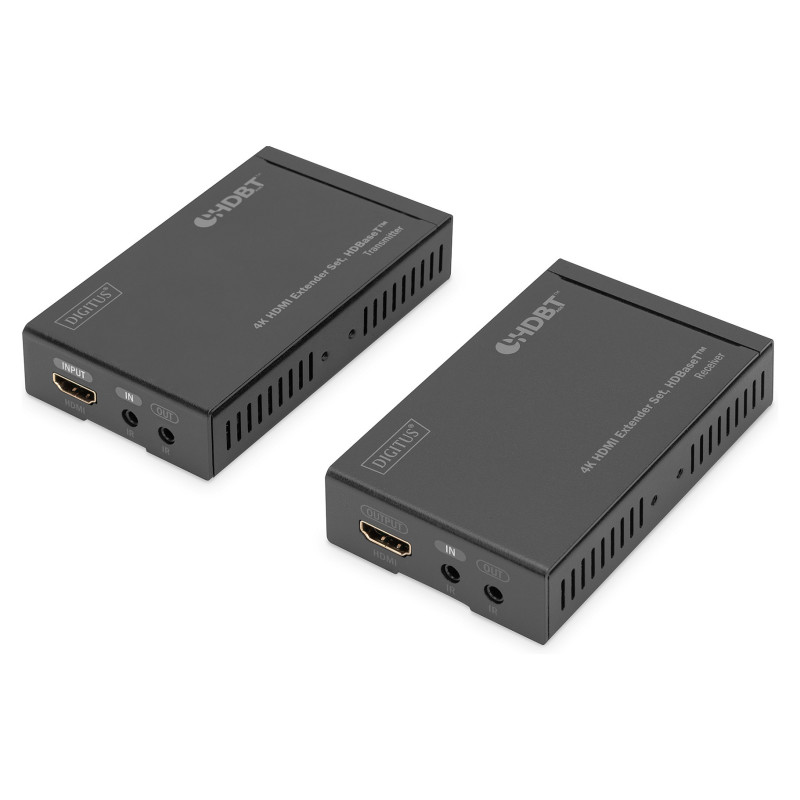

The Digitus 4K Extender Set, HDBaseTTM offers an extender solution up to 70 m for the highest demands - both for high-resolution graphics display and for absolutely smooth video playback. It transmits digital video and audio signals over a maximum length of up to 70 m. 4K content can be transmitted up to 40 m using a CAT 6 network cable. It consists of a transmitter and receiver unit. Also included are two bidirectional infrared units (transmitter, receiver) via which the remote control of the connected input source can be used.

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance: 40 m
Maximum refresh rate: 60 Hz
LED indicators: Yes
Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Audio formats supported: LPCM
Feature: HDCP
Material: Metal
Feature: 3D
Product colour: Black

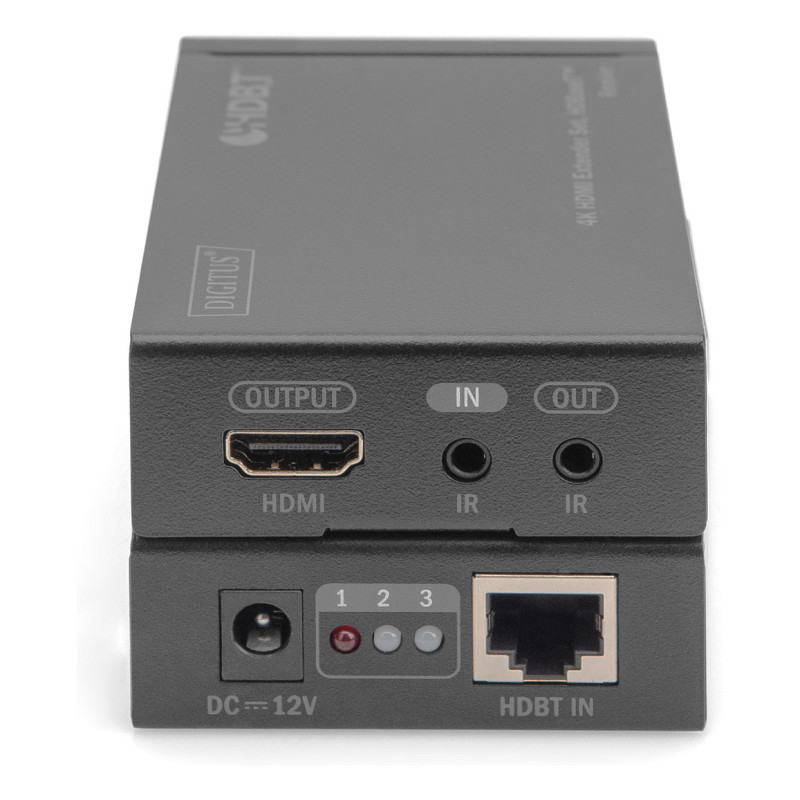

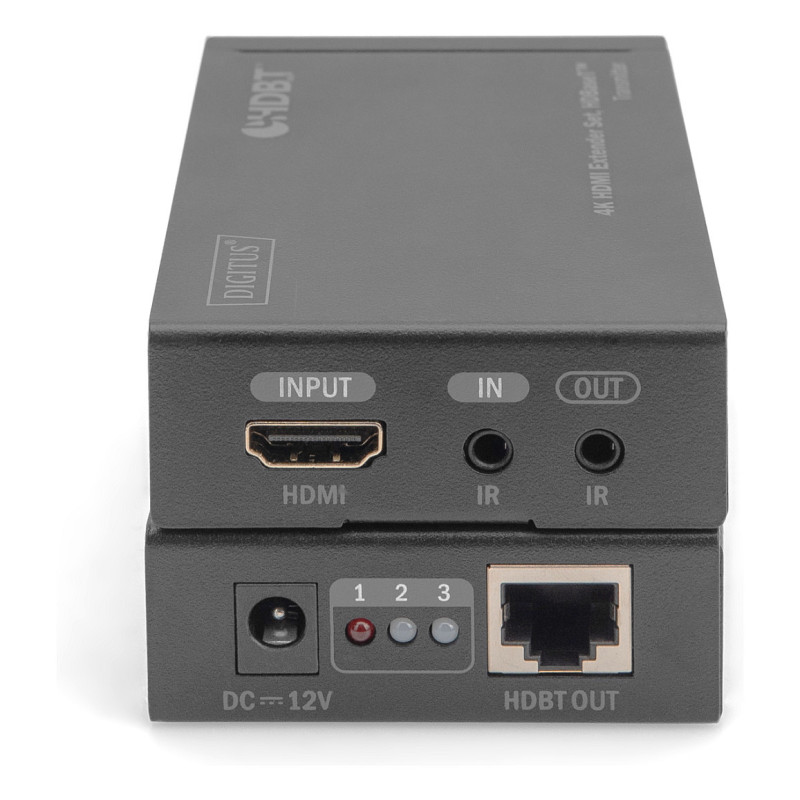

Ports & interfaces

Feature: HDBaseT port
HDMI in: 1
Number of HDMI outputs: 1
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Output current: 2 A
Power consumption (typical): 8 W

Weight & dimensions

Dimensions (WxDxH): 66.5 x 98.5 x 23 mm

Packaging data

Package width: 149 mm
Package depth: 199 mm
Package weight: 896 g

Packaging content

Feature: Manual
Feature: Mounting kit

Technical details

Country of origin: China
Package volume: 2372.08 cm³

Logistics data

UK Trade Tariff code: 85176200
