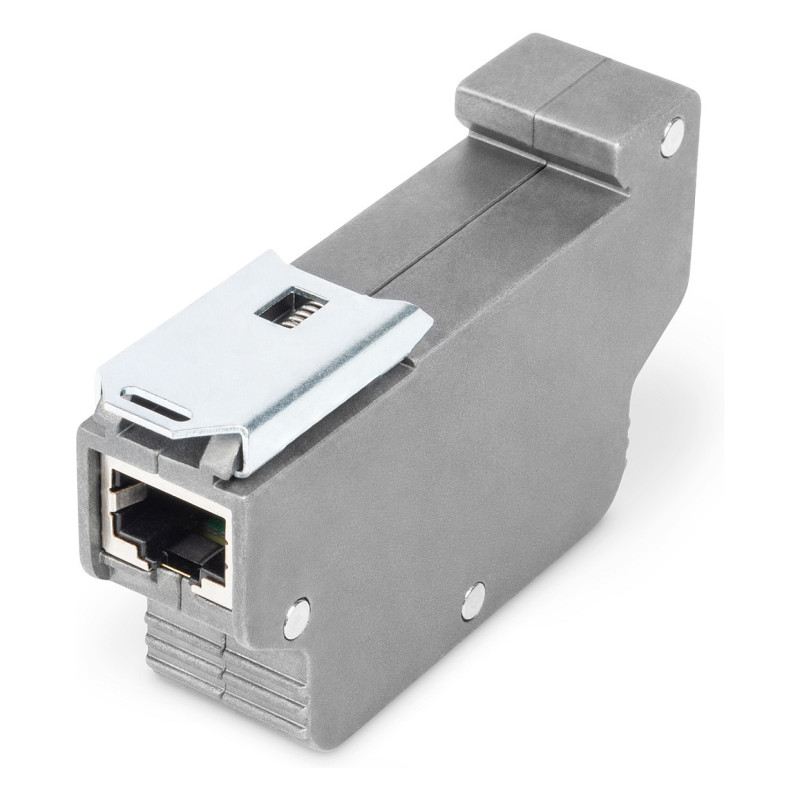

Digitus DN-95421 surge protector

Digitus PoE surge protector (RJ45), DIN rail installation, indoor. Product colour: Grey, Material: Zinc, International Protection (IP) code: IP40. Weight: 115 g, Width: 19 mm, Depth: 45 mm. Package width: 87 mm, Package depth: 55 mm, Package weight: 154 g
Surge protection up to 10 kV for network and PoE devices
- Protects your network devices against voltage surges up to 10 kV
- Support for Gigabit networks (10/100/1000Mbps)
- Supports PoE-Standards up to PoE++ (IEEE802.3af/at/bt)

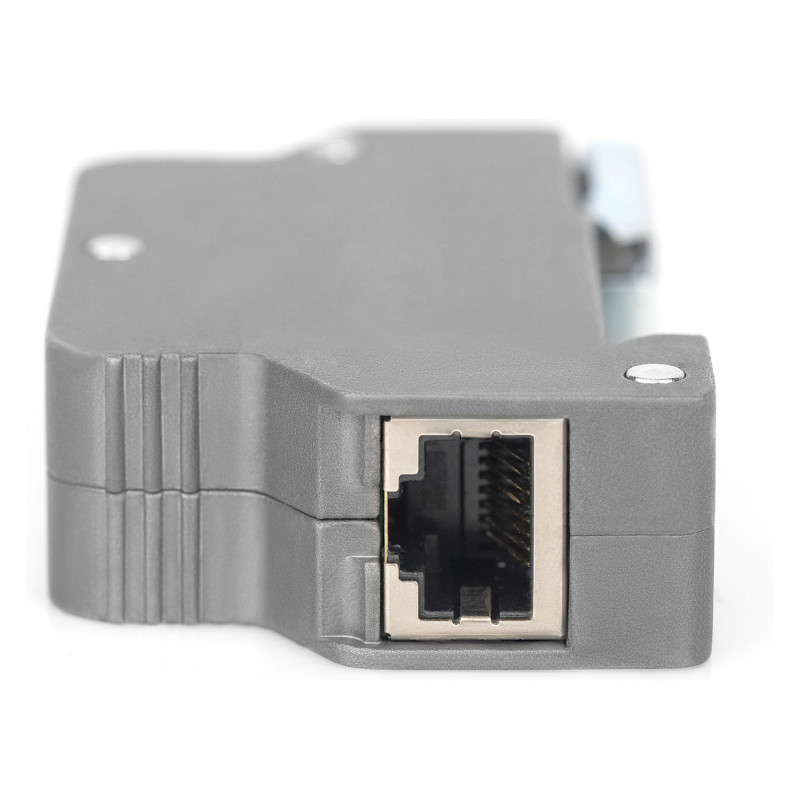

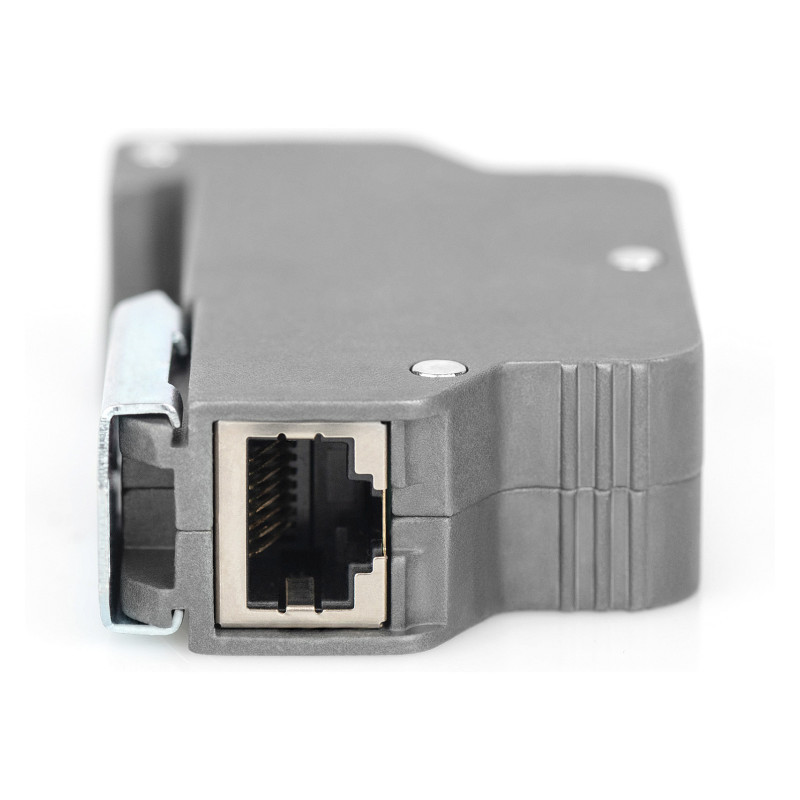

- Single-port (1 x RJ45 input / 1 x RJ45 output)

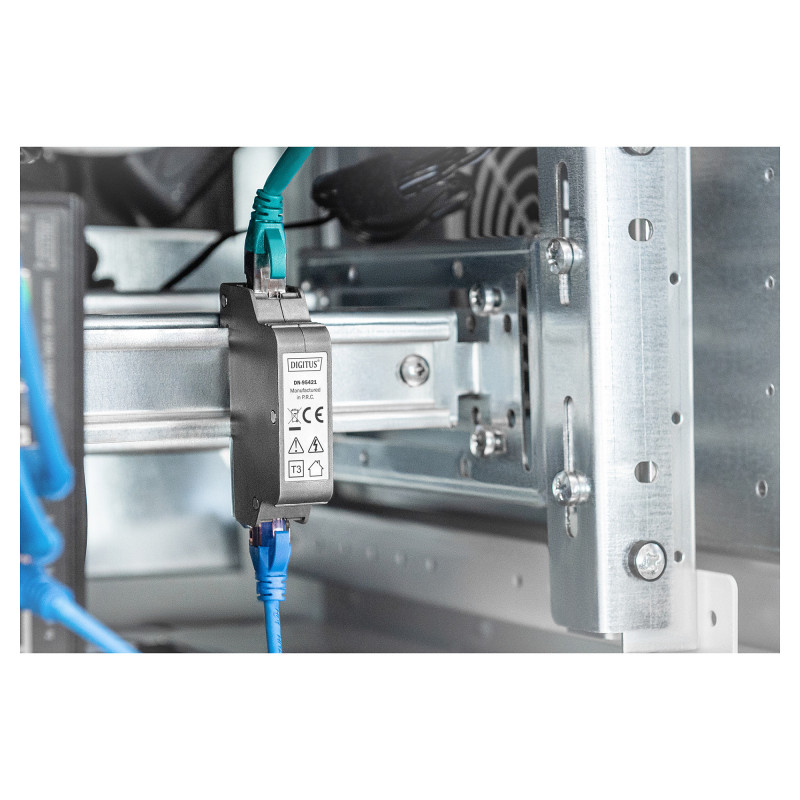

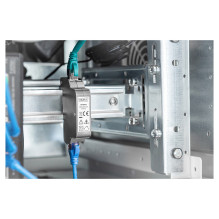

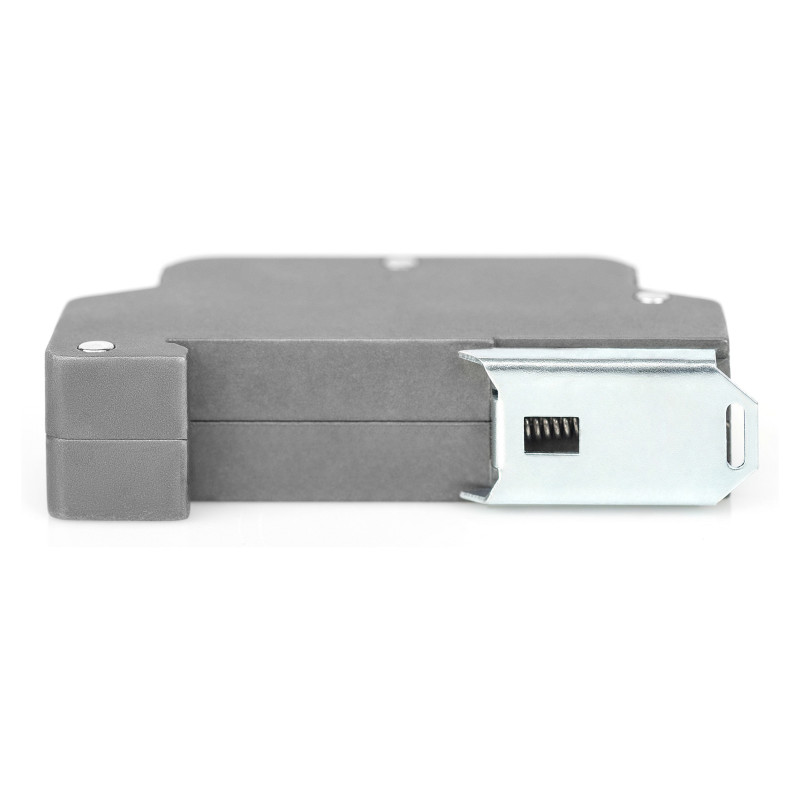

- Easy installation by snapping onto a DIN rail (35 mm profile rail)
- Designed for a high temperature range from -40 °C to +85 °C
- Developed for industrial use
- Reliable protection against weather and lightning

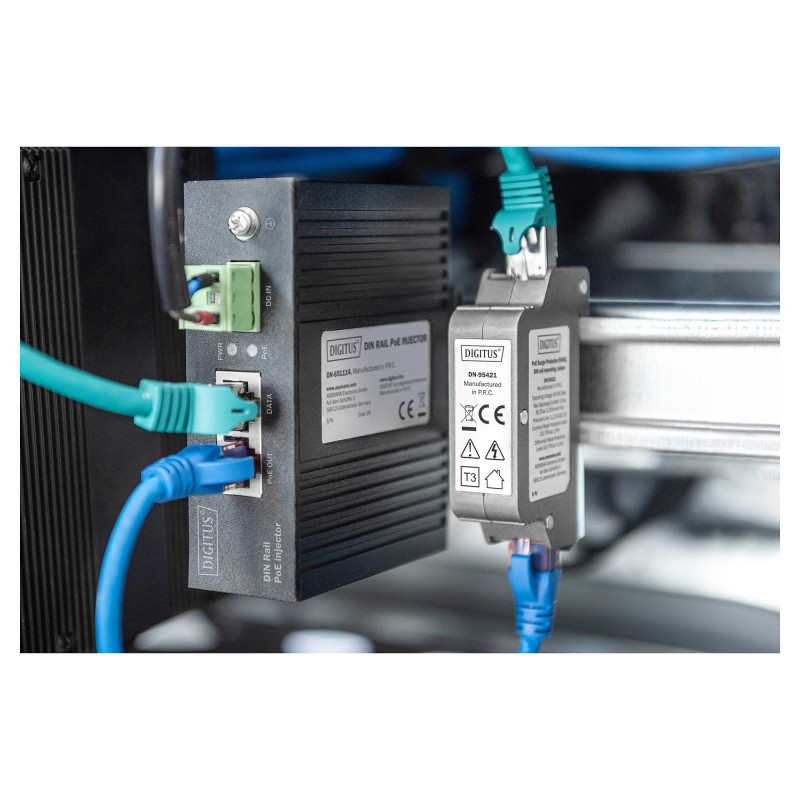

The DIGITUS® Surge Protector is designed for industrial network applications and protects against voltage surges up to 10 kV. Supports data transmission of up to 1000 Mbps in Gigabit networks and PoE standards PoE, PoE+ and PoE++ (IEEE802.3af/at/bt). To ensure that not only your conventional network devices are protected against voltage surges, you can also use the profile rail module for a variety of PoE applications (PoE, PoE+, PoE++), for example IP cameras or PoE switches. Installation is very easy: simply snapping onto a 35 mm DIN rail that can also serve as grounding for the surge protector. Don't make any compromises: protect your sensitive equipment against excess voltages and environmental influences.

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Features

Product colour: Grey
Material: Zinc
International Protection (IP) code: IP40
Country of origin: China

Weight dimensions

Weight: 115 g
Width: 19 mm
Depth: 45 mm
Height: 77.2 mm

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 2000 m

Packaging data

Package width: 87 mm
Package depth: 55 mm
Package weight: 154 g
Package volume: 148.335 cm³

Logistics data

UK Trade Tariff code: 85363010
Harmonized System (HS) code: 85364900
