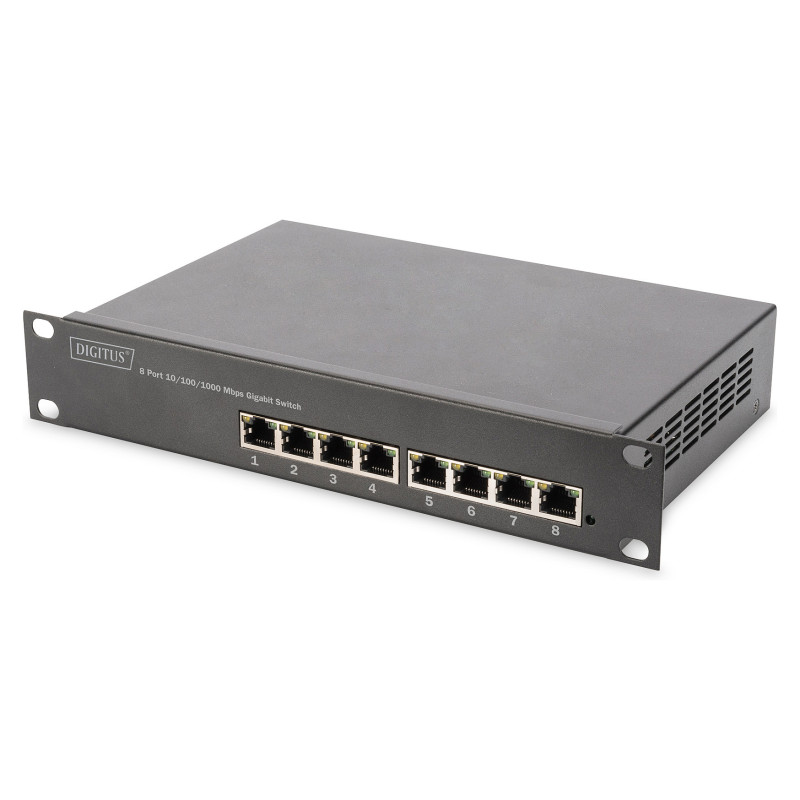

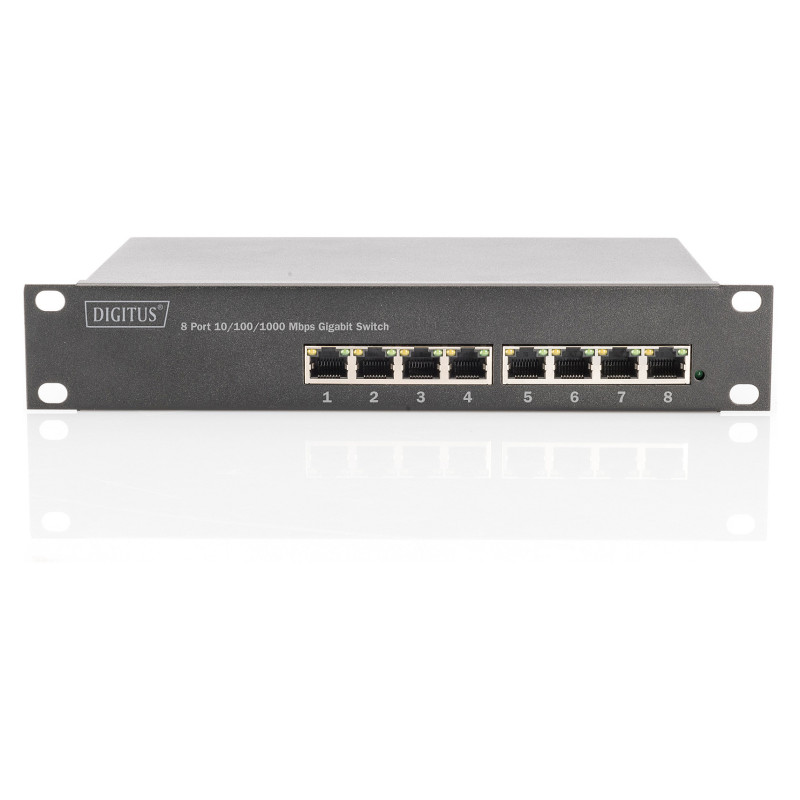

Digitus DN-95331 network switch

Digitus 10" Gigabit 8-Port L2+ Managed PoE+ Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3at. Power over Ethernet (PoE)

Combines professional-grade network security, VLAN segmentation, and PoE+ power delivery in a compact, quiet 10-inch switch.

- 8× Gigabit PoE+ ports for access points, cameras, VoIP, and IoT (30 W per port)
- L2+ Managed for Professional Network Management
- 80 W total PoE budget
- VLAN (port-based / 802.1Q) for secure segmentation
- QoS for Prioritizing VoIP and Video
- IGMP Snooping for Monitoring & IPTV
- Link Aggregation (LACP) for High Availability and Bandwidth
- Port Security & Access Control
- Management via Web GUI, SNMP, and CLI
- Fanless metal enclosure for 24/7 operation

The DIGITUS® DN-95331 is a professional 8-port Gigabit PoE+ switch in a compact 10-inch form factor designed for high-performance networks in enterprise, security, and building automation applications. Eight PoE+ ports (IEEE 802.3af/at, up to 30 W per port) provide centralized power to IP cameras, Wi-Fi access points, VoIP phones, and IoT components. Unlike basic PoE switches, the DN-95331 offers comprehensive L2+ management features—VLAN, QoS, IGMP snooping, link aggregation, port mirroring, access control, and traffic control—enabling precise segmentation, security, and prioritization. It is managed via a web GUI, SNMP, or CLI. The fanless metal housing ensures silent, continuous operation. The combination of PoE+, Gigabit performance, and L2+ management makes it the ideal foundation for CCTV systems, digital building infrastructure, and connected workplaces.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3at
Feature: Full duplex
Feature: IP routing
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Interface-based VLAN, Port-based VLAN, Tagged VLAN

Data transmission

Forwarding rate: 11.9 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 16000

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support

Multicast features

Feature: Multicast support

Design

Feature: Stackable
Product colour: Black

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 96 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Total Power over Ethernet (PoE) budget: 80 W

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 250 mm
Depth: 150 mm
Height: 44 mm
Weight: 1.14 kg

Packaging data

Package width: 240 mm
Package depth: 70 mm
Package volume: 5376 cm³
Package weight: 1.6 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
