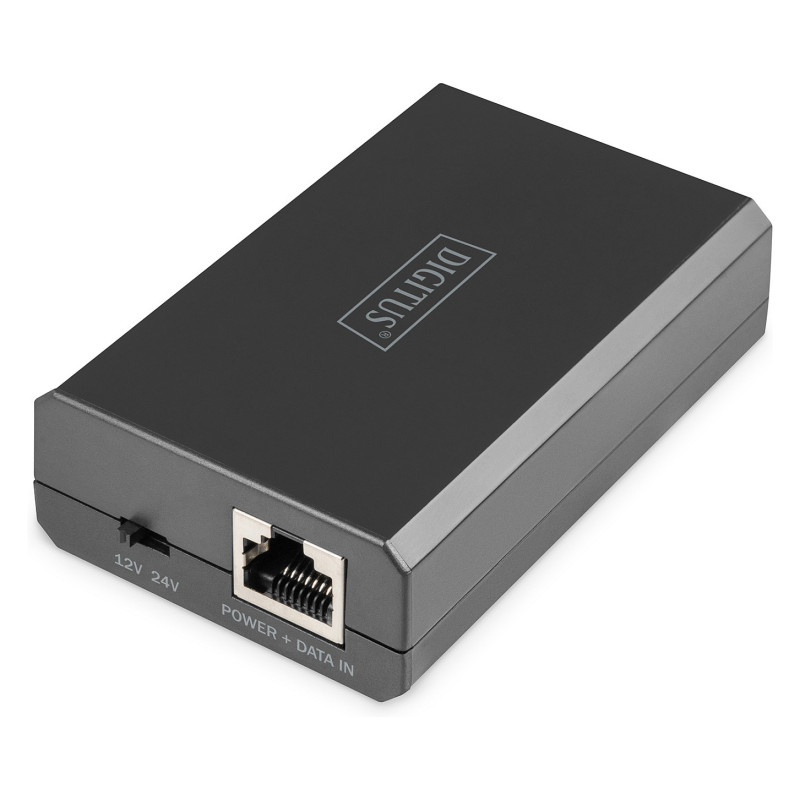

Digitus DN-95211 PoE adapter

Digitus Gigabit Ethernet PoE splitter, 802.3bt, 51 W. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3bt. Product colour: Black. Power over Ethernet (PoE) voltage: 48 V, Output power: 51 W, Input voltage: 36 - 57 V. Width: 55 mm, Depth: 80 mm, Height: 23 mm. Number of products included: 1 pc(s), Packaging content: 1x Gigabit PoE Splitter 1x QIG 1x RJ45 Ethernet cable 1x DC power cable

The PoE splitter delivers data and power of up to 51W to devices via a single Ethernet cable.

- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard: IEEE802.3at/bt

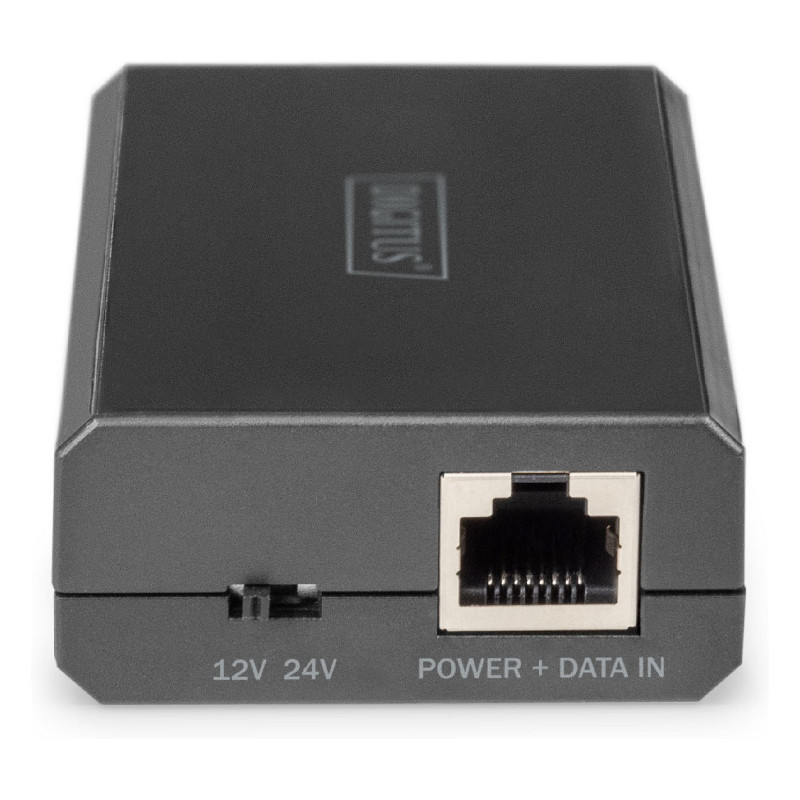

- Input: Power + data input (RJ45)

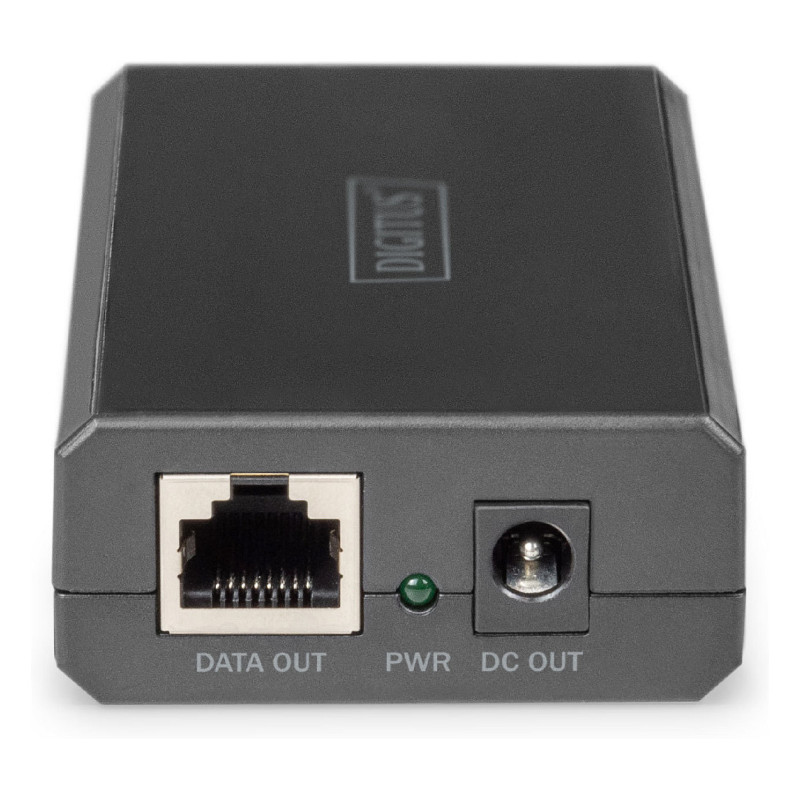

- Output: Data output (RJ45), DC output
- Plug-and-play installation - no configuration required
- Selectable output voltages: 12V/4.25A, 24V/2.125A,
- Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
- Status LED on the device (PoE ready/PoE in operation)
- Protection through insulation of the circuit
- Maximum output power up to 51W

The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device such as an access point, IP phone or camera to provide power and data. The extender is self-powered via PoE, so no additional power supply is required. The output voltage can be regulated to 12V or 24V via a dip switch. This splitter extends your network wherever you want to place network devices for which no sockets are available. are available.

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3bt
Duplex system: Full, Half

Features

Product colour: Black
Feature: Plug and Play

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Power

Power over Ethernet (PoE) voltage: 48 V
Output power: 51 W
Input voltage: 36 - 57 V
Output current: 4.25 A
DC output voltage: 24 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 55 mm
Depth: 80 mm
Height: 23 mm
Weight: 80 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide
Packaging content: 1x Gigabit PoE Splitter1x QIG1x RJ45 Ethernet cable1x DC power cable

Packaging data

Package width: 105 mm
Package depth: 25 mm
Package height: 150 mm
Package weight: 160 g

Logistics data

Customs product code (TARIC): 8544421000
Master (outer) case width: 278 mm
Master (outer) case length: 317 mm
Master (outer) case height: 545 mm
Master (outer) case gross weight: 15.5 kg
Master (outer) case volume: 48028.67 cm³
Products per master (outer) case: 100 pc(s)
