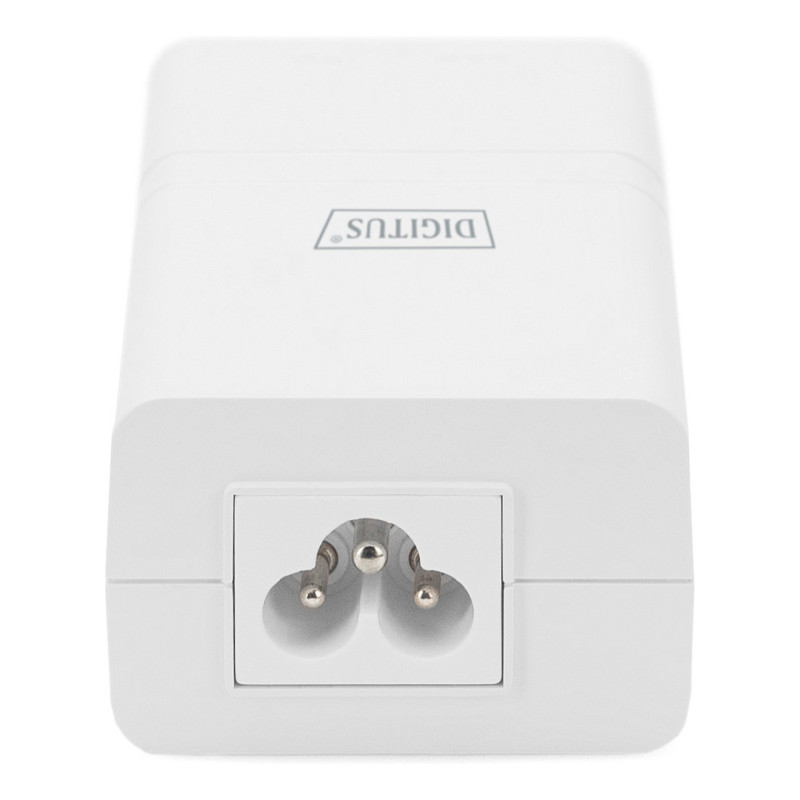

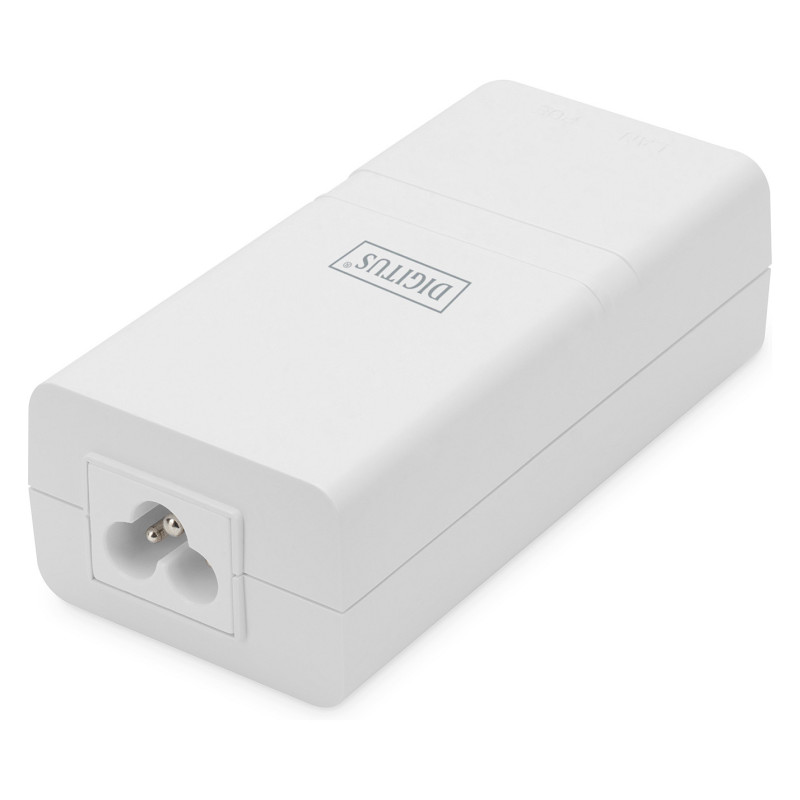

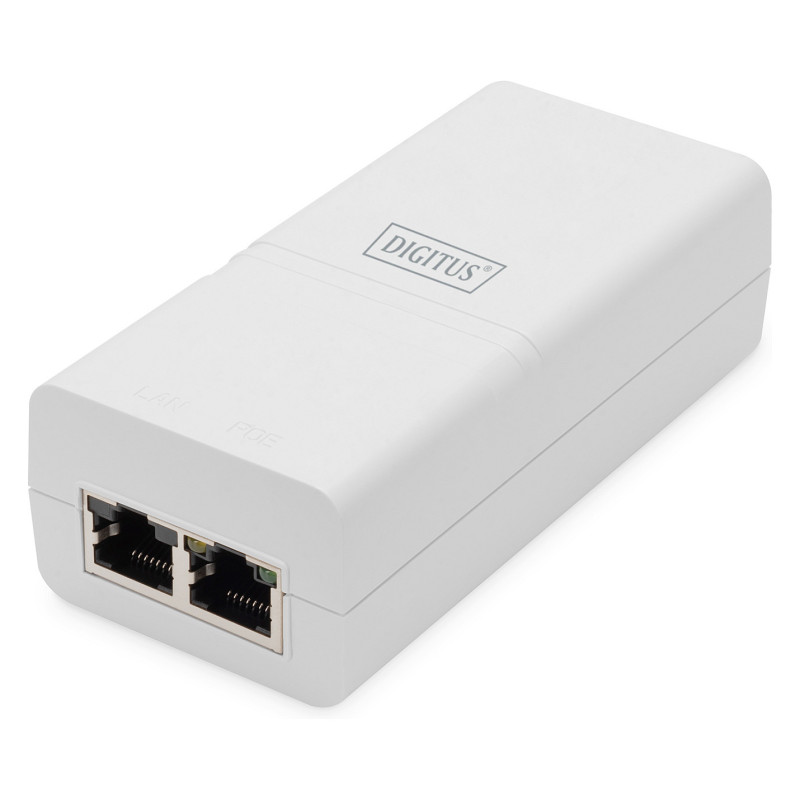

Digitus DN-95132 PoE adapter

Digitus Gigabit Active 802.3at PoE Midspan. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3at. Product colour: White, Housing material: Plastic, Safety: CE/FCC. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Compliance certificates: RoHS, WEEE. Width: 107.3 mm, Depth: 56 mm, Height: 34 mm

The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance

- Provides 52Vdc, 0.58A power for remote PDs over 2 pairs output
- Supports both 10/100 Base-T and Gigabit device
- Works with a wide input voltage of 100-240 VAC, 50 or 60 Hz.
- Easily merge of power and data cables into a single cable
- Each output port has output current limited, short-circuit protection, complete Powered Device (PD) detection and classification
- The Injector can be used independent of operating system

DN-95132 is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 52Vdc, 0.58A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless APs, WLAN routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to IEEE802.3af/at PoE standard. Enclosed in an IP40 fire retardant plastic case. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3at

Features

Product colour: White
Housing material: Plastic
Feature: Plug and Play
LED indicators: Yes
Safety: CE/FCC
International Protection (IP) code: IP40

Ports & interfaces

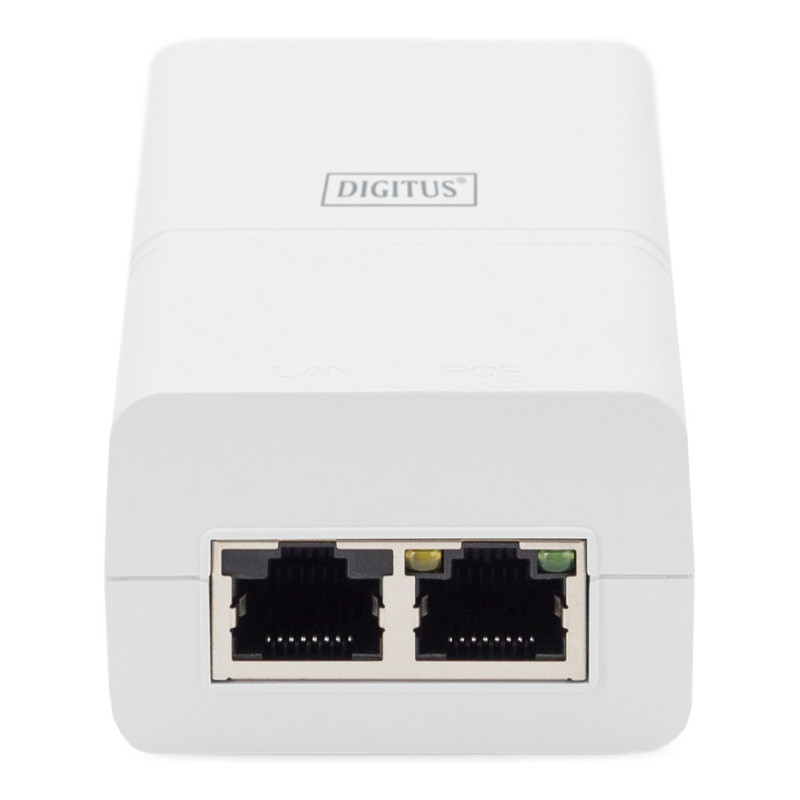

Ethernet LAN (RJ-45) ports: 2

Power

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 1 A
Output current: 0.58 A
Total Power over Ethernet (PoE) budget: 30 W
DC output voltage: 52 V

Certificates

Compliance certificates: RoHS, WEEE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 70 °C
Operating altitude: 0 - 2000 m

Weight & dimensions

Width: 107.3 mm
Depth: 56 mm
Height: 34 mm
Weight: 146.8 g

Packaging content

Number of products included: 1 pc(s)
Feature: Manual

Packaging data

Package width: 168 mm
Package depth: 100 mm
Package height: 43 mm
Package weight: 36.25 g
Package volume: 722.4 cm³

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
