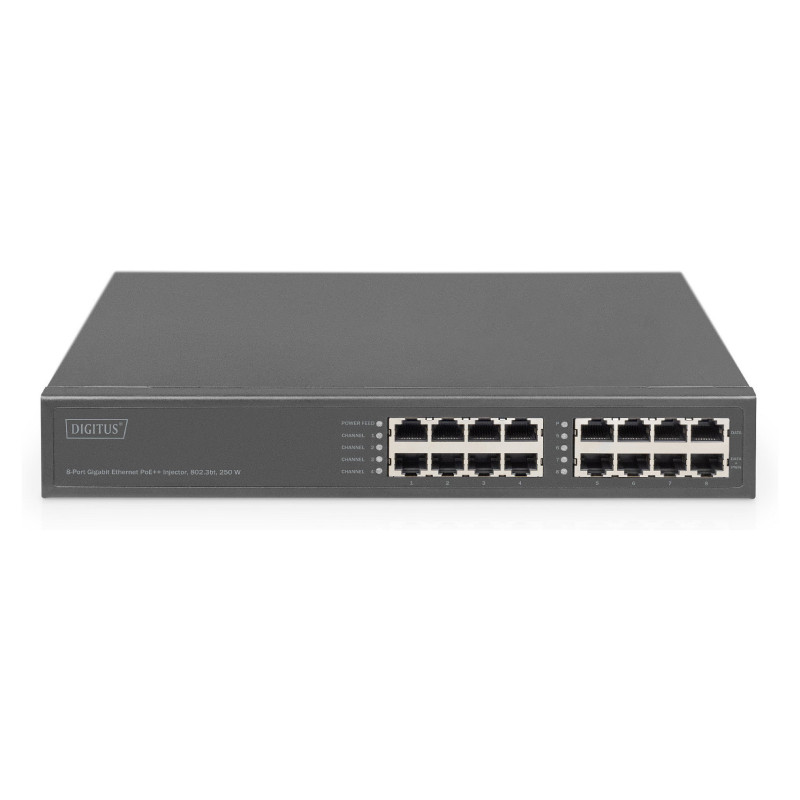

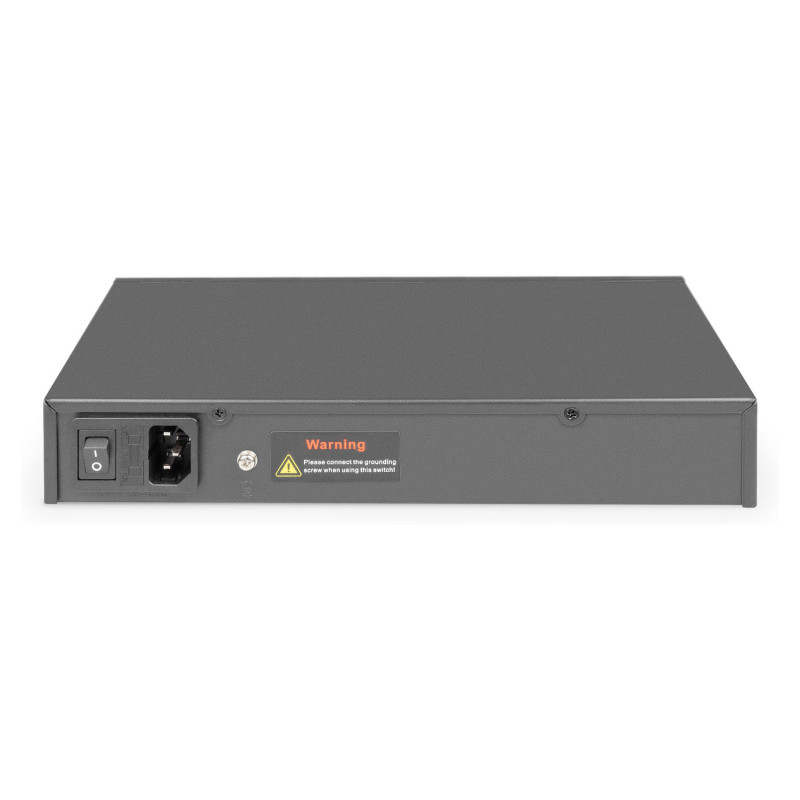

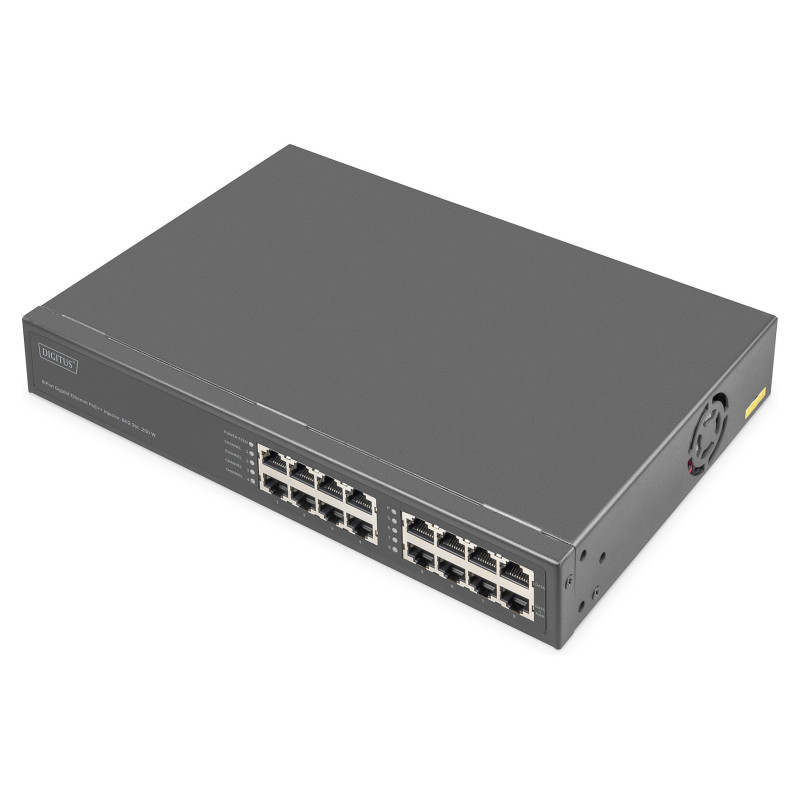

Digitus DN-95118 PoE adapter

Digitus 8-Port Gigabit Ethernet PoE Injector, 802.3bt, 250 W. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Product colour: Grey, Maximum operating distance: 100 m, Number of fans: 1 fan(s). Power over Ethernet (PoE) voltage: 54 V, Output power: 85 W, Input voltage: 100 - 240 V. Width: 275 mm, Depth: 200 mm, Height: 44 mm. Number of products included: 1 pc(s), Packaging content: 1 x PoE injector 6 x Screws 1 x QIG 1 x AC power cord 2 x Mounting brackets 4 x Rubber feet

Upgrade your power infrastructure with the DN-95118 8-Channel Mid-Span PoE solution - unlocking a new level of efficiency, reliability, and cost-effectiveness for your networked devices.

- 8-Channel Power Distribution: The DN-95118 supports up to 8 channels, providing a versatile solution for multiple device installations.
- IEEE802.3bt Compliance: Ensures adherence to the latest PoE standards, guaranteeing compatibility with a wide range of devices.
- Compact and Cost-Effective: The space-saving design and affordability of the DN-95118 make it an efficient choice for businesses of all sizes.
- Eliminates External Power Supply: Say goodbye to the hassle of external power supplies and AC/DC cabling, reducing installation complexity and costs.
- Remote Powering: Perfect for installations where device accessibility is a challenge, the DN-95118 offers remote power delivery over existing Ethernet infrastructure.

Introducing the DN-95118 8-Channel Mid-Span Power over Ethernet (PoE) solution - a cutting-edge, compact, and cost-effective solution designed to revolutionize the way you power and connect your devices. Whether you're managing wireless LAN access points, IP security cameras, VoIP telephones, or other low port density installations, the DN-95118 is engineered to provide a seamless and efficient power solution. Compliance with the IEEE802.3bt standard ensures that the DN-95118 meets the latest industry requirements for PoE technology, delivering power and data over a single Ethernet cable. This eliminates the need for an external power supply and the associated AC/DC power cabling, streamlining your infrastructure and reducing installation costs. One of the standout features of the DN-95118 is its ability to remotely power a variety of devices, making it an ideal choice for installations where accessibility is a challenge. By utilizing existing Ethernet infrastructure, this mid-span PoE solution offers a convenient and reliable power source without the complexities of additional wiring. The compact design of the DN-95118 ensures that it seamlessly integrates into your environment without occupying valuable space. Its affordability, combined with its safety and reliability features, makes it an attractive choice for businesses looking to optimize their power solutions without compromising on performance.

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Features

Product colour: Grey
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Yes
Number of fans: 1 fan(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 16
RJ-45 input ports: 8
RJ-45 output ports: 8

Power

Power over Ethernet (PoE) voltage: 54 V
Output power: 85 W
Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Power over Ethernet (PoE) power per port: 90 W
Total Power over Ethernet (PoE) budget: 250 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C

Weight & dimensions

Width: 275 mm
Depth: 200 mm
Height: 44 mm

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide
Packaging content: 1 x PoE injector6 x Screws1 x QIG1 x AC power cord2 x Mounting brackets4 x Rubber feet

Packaging data

Package width: 280 mm
Package depth: 95 mm
Package height: 340 mm
Package weight: 2.69 kg

Logistics data

Customs product code (TARIC): 8517620000
Master (outer) case width: 350 mm
Master (outer) case length: 300 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 13.4 kg
Master (outer) case volume: 52500 cm³
Products per master (outer) case: 5 pc(s)
