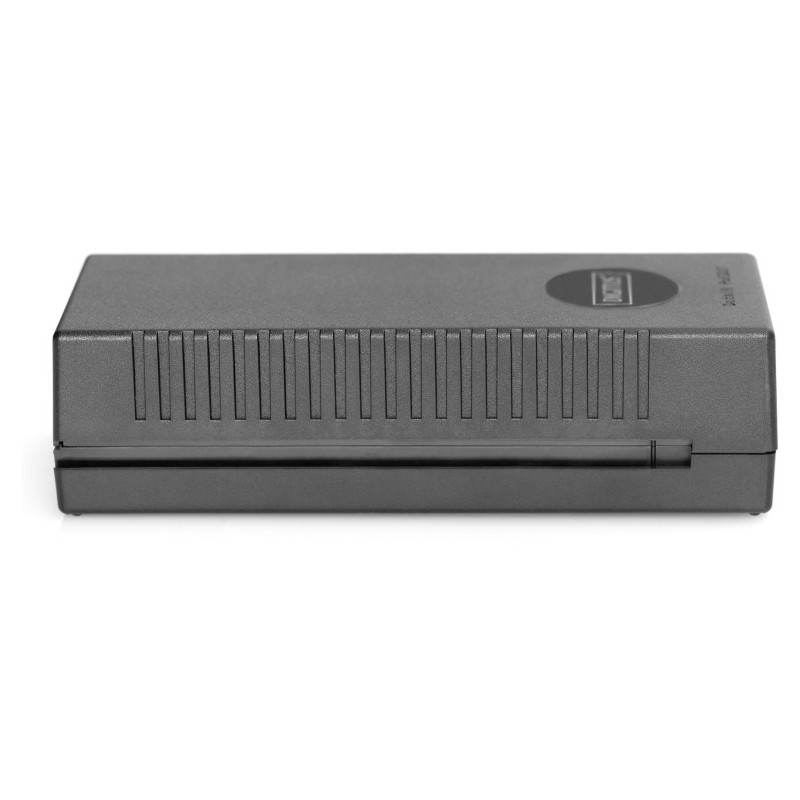

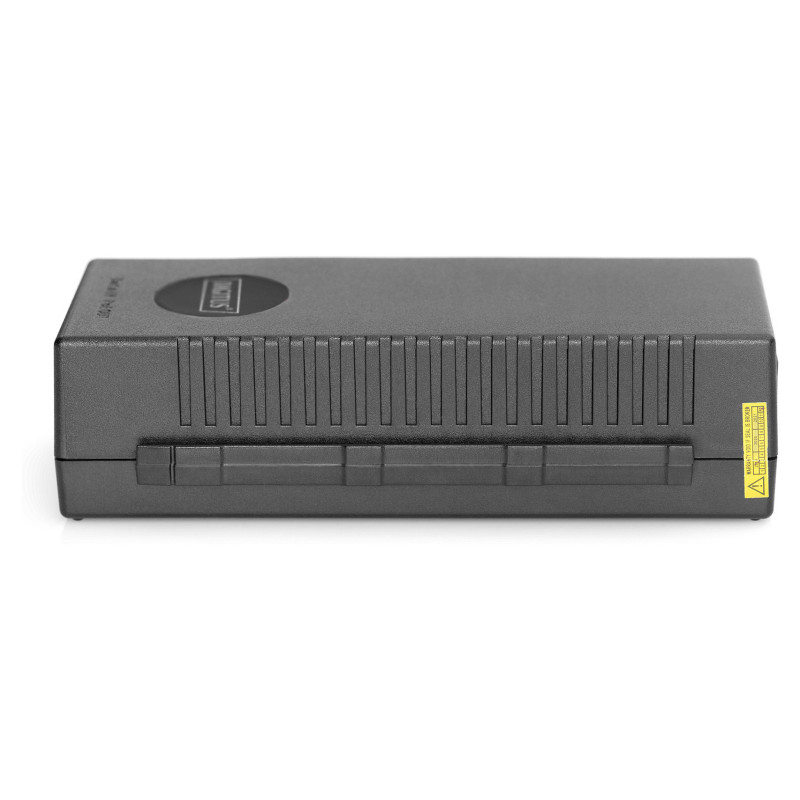

Digitus DN-95108 PoE adapter

Digitus 10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s, Networking standards: IEEE 802.3at. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, AC adapter input voltage: 100-240 V, AC adapter frequency: 50/60 Hz. Width: 61.5 mm, Depth: 145.5 mm, Height: 40 mm. Number of products included: 1 pc(s)

Power supply and data transfer with up to 10G bandwidth and 30 watt output with just one network cable, for PoE-enabled devices such as access points, IP phones or IP cameras

- PoE power supply with up to 30 W and 10 Gbps
- Supports the IEEE 802.3af/at PoE standard
- Supports 10G, 5G, 2.5G, 10/100/1000 Base-T
- PoE output: 30 W
- For distances of up to 100 m
- LED operating display

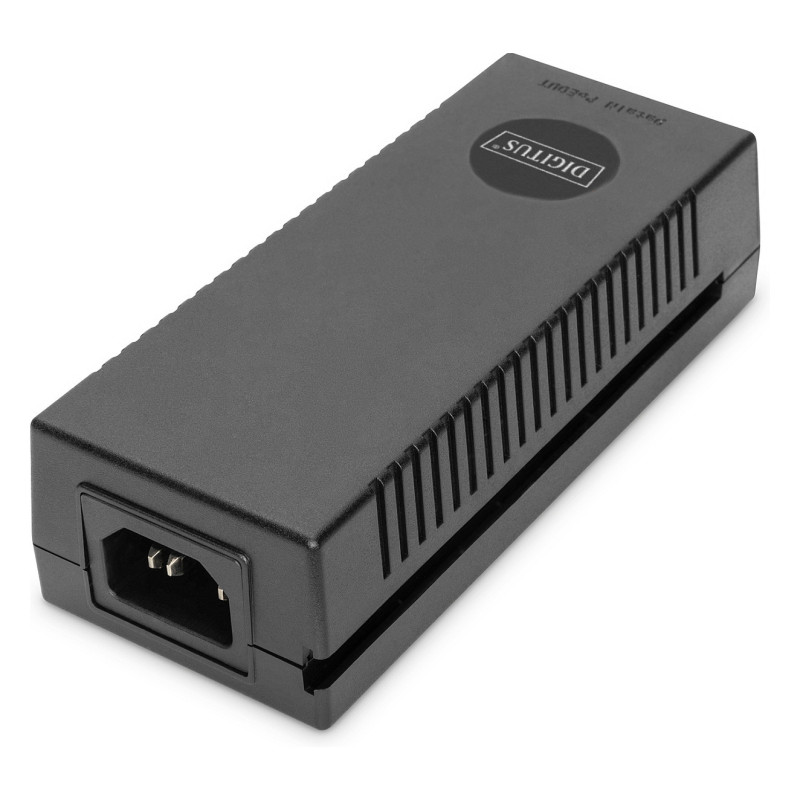

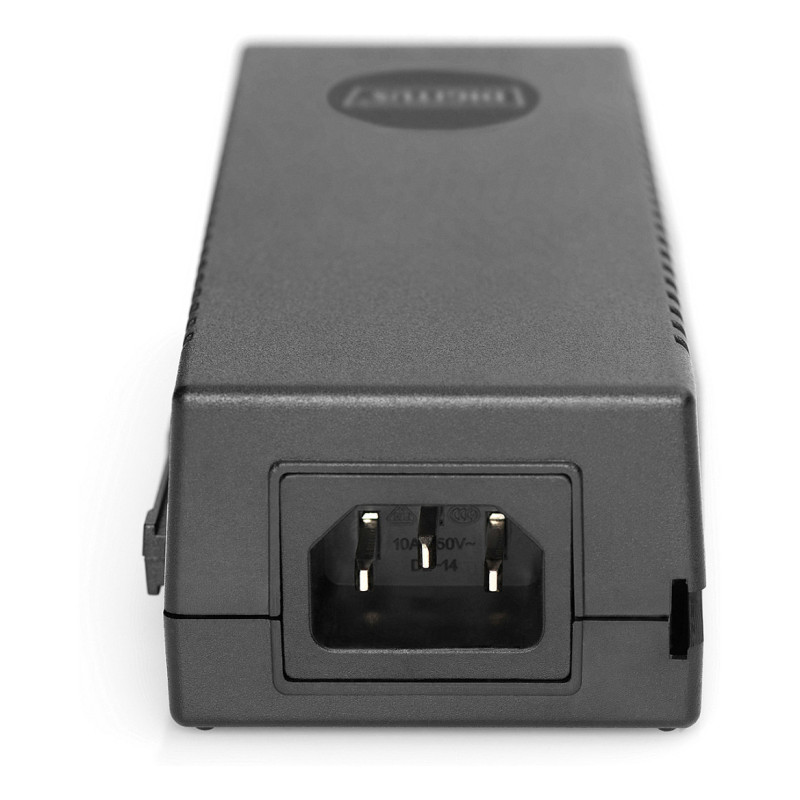

- Integrated power connection for non-heating appliances (C14)
- Excess voltage and short circuit protection
- Automatic detection of PoE devices
- Suitable for wall installation

The PoE+ injector from DIGITUS® offers a 30 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3at-compliant. With support for 10 Gbps network connections, the PoE injector can also be used in environments where the highest possible data transfer speed is essential. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones and other installations with PoE functionality. The injector makes an external power supply for your devices unnecessary, eliminating the connected power cables / plugs. PoE & PoE+ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure.

Network

Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3at

Features

Product colour: Black
Feature: Wall mountable
Maximum operating distance: 100 m

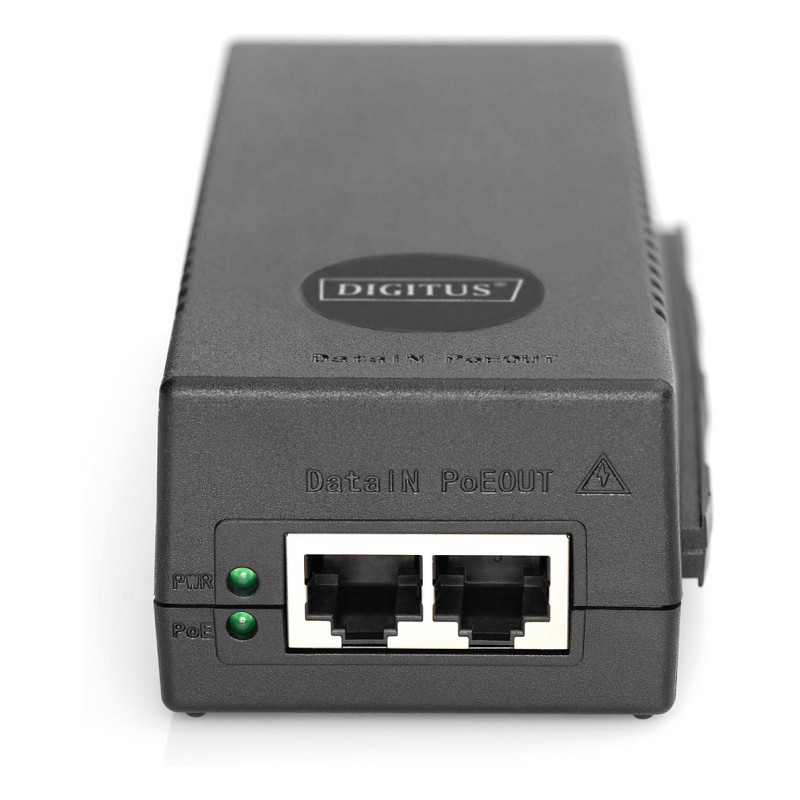

LED indicators: PoE, Power
Power protection features: Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 52 V
AC adapter input voltage: 100-240 V
AC adapter frequency: 50/60 Hz
Input current: 0.58 A
Total Power over Ethernet (PoE) budget: 30 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C

Weight & dimensions

Width: 61.5 mm
Depth: 145.5 mm
Height: 40 mm
Weight: 450 g

Packaging content

Number of products included: 1 pc(s)

Packaging data

Package width: 120 mm
Package depth: 60 mm
Package weight: 287.4 g
Package volume: 1260 cm³

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85044095
Country of origin: China
