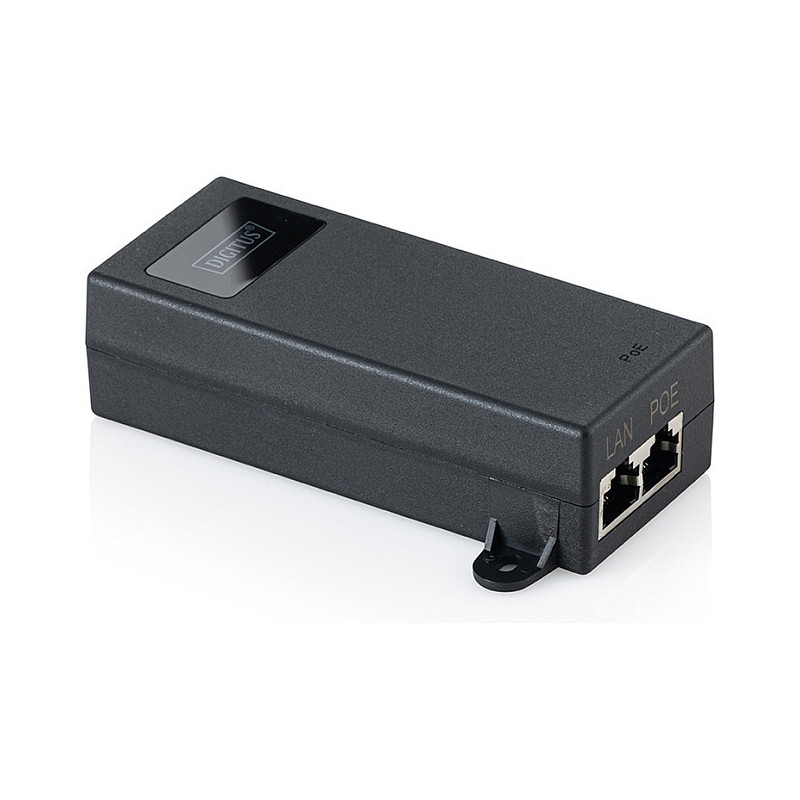

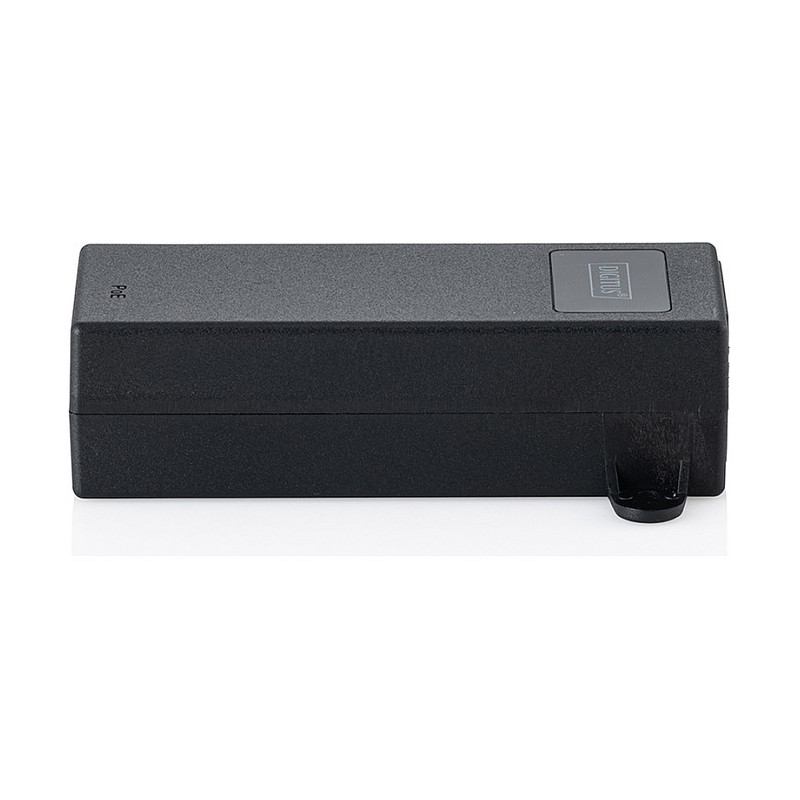

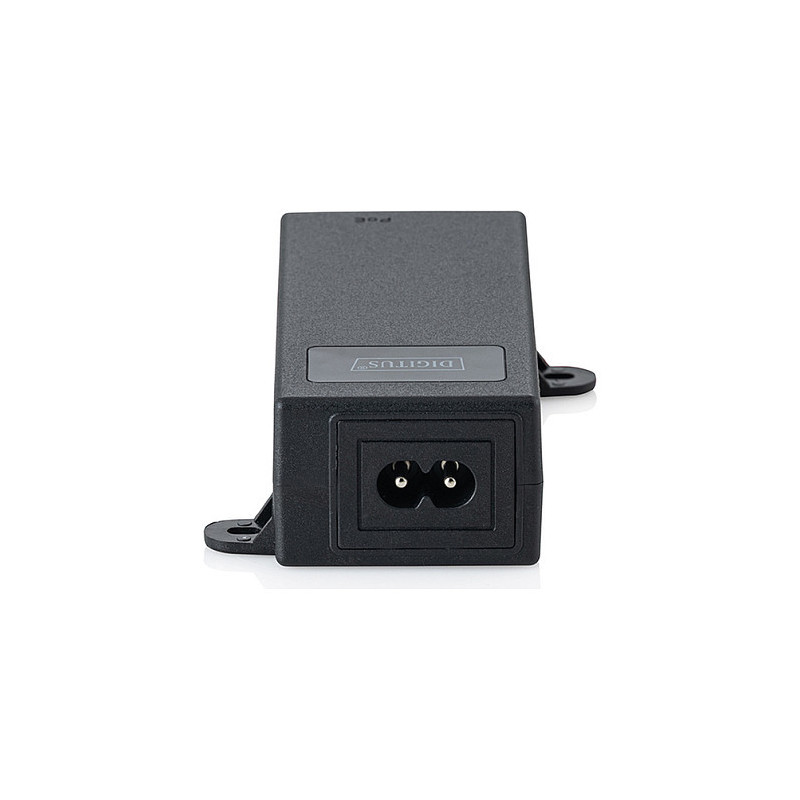

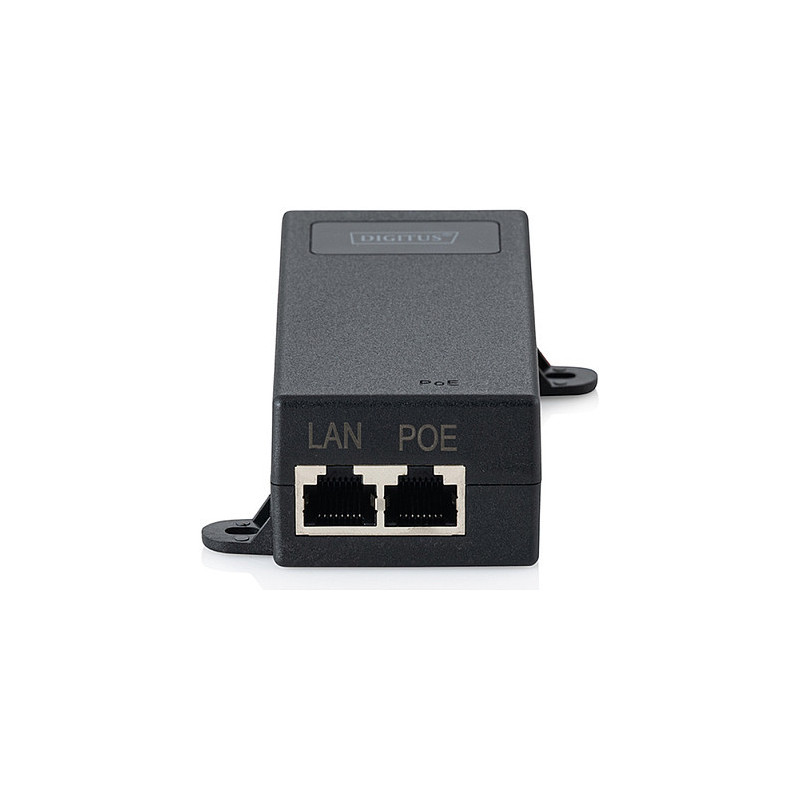

Digitus DN-95104-1 PoE adapter

Digitus Gigabit Ethernet PoE++ injector, 802.3bt. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m. Power over Ethernet (PoE) voltage: 55 V, Output power: 60 W, AC adapter input voltage: 100 - 240 V. Width: 193 mm, Depth: 85 mm, Height: 41 mm. Number of products included: 1 pc(s)
Minimize your cabling effort for wireless APs, IP phones or any other PoE-enabled device!
- Complies with the 802.3bt PoE++ standard
- Easy merging of power and data cables into a single cable
- Expand your network where there are no power lines or sockets
- No configuration required
- The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE 802.3bt Ultra PoE standard and delivers an output power of 60 watts.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
Networking standards: IEEE 802.3bt

Features

Product colour: Black
Maximum operating distance: 100 m

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Power

Power over Ethernet (PoE) voltage: 55 V
Output power: 60 W
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 1.5 A
Power consumption (max): 10 W
Power consumption (typical): 1.6 W

Operational conditions

Operating temperature (T-T): -10 - 45 °C

Weight dimensions

Width: 193 mm
Depth: 85 mm
Height: 41 mm
Weight: 164.7 g

Packaging content

Number of products included: 1 pc(s)
Feature: Quick installation guide

Packaging data

Package width: 75 mm
Package depth: 118 mm
Package height: 85 mm

Logistics data

Master (outer) case width: 400 mm
Master (outer) case length: 490 mm
Master (outer) case height: 295 mm
Products per master (outer) case: 60 pc(s)
