Digitus DN-9010 / 8-1 socket outlet

Digitus CAT 6A class EA network socket, design-compatible, shielded, flush-mounted, 4 directions. Socket type: RJ-45, Modules quantity (max): 1 module(s), Networking cable category: 6a. Product colour: White, Housing material: ABS synthetics, Metal. Width: 80 mm, Depth: 80 mm, Height: 43 mm. Quantity per pack: 1 pc(s), Package width: 90 mm, Package depth: 90 mm. Country of origin: China
Future-oriented standards and high-end quality for your network.
- Design-capable - compatible with all common switch ranges

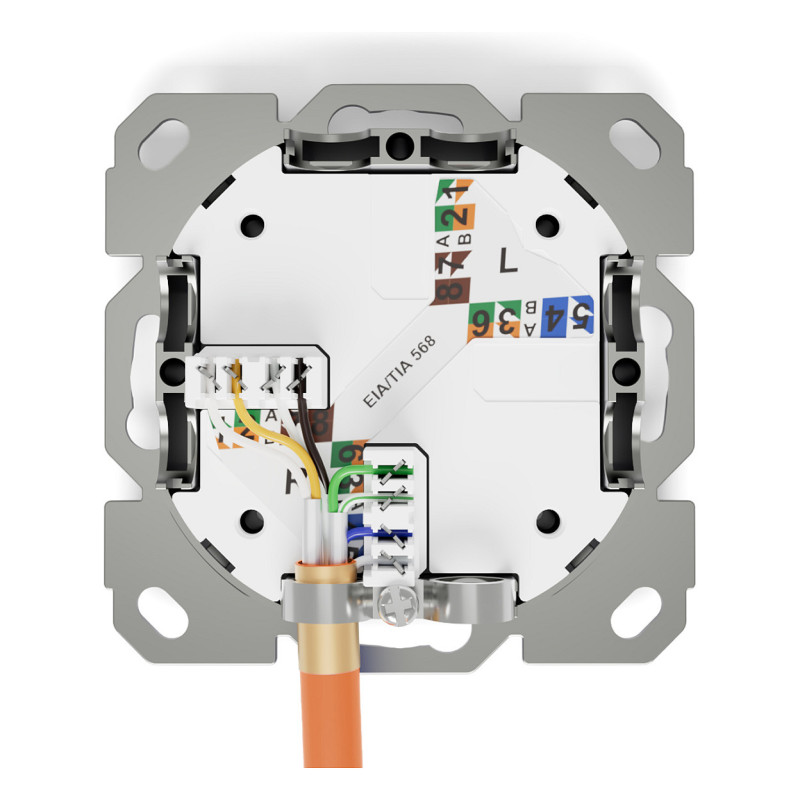

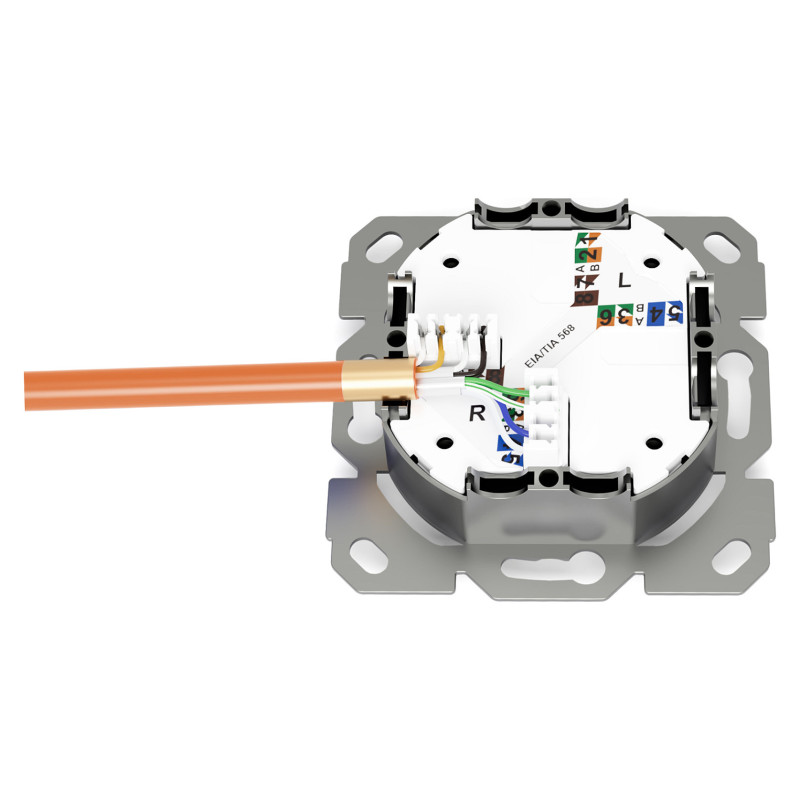

- Easy installation via color-coded LSA insulation displacement connectors
- Central plate with integrated dust protection plate
- Integrated strain relief for the shunting cable
- Flexible cable entry in 4 directions for versatile installations
The CAT 6A data connection sockets from DIGITUS® are design-compatible with all standard switch ranges. They are certified to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 1 shielded RJ45 socket. The cable is installed via LSA strips, color-coded in accordance with EIA/TIA 568 A B. The flush-mounted junction box is ideal for connecting your installation cables neatly and tidily. Suitable for installation depths from 28 mm. The box is rounded off by the integrated field of vision, which allows you to label the junction box with an inscription insert.

Features

Socket type: RJ-45
Sockets quantity: 1
Modules quantity (max): 1 module(s)
Networking cable category: 6a
Frequency: 500 MHz
Insulation resistance: 500 MΩ
Input impedance: 0.02 Ω
Output impedance: 0.02 Ω
Mounting type: Wall

Design

Product colour: White
Housing material: ABS synthetics, Metal

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight dimensions

Width: 80 mm
Depth: 80 mm
Height: 43 mm

Packaging data

Quantity per pack: 1 pc(s)
Package width: 90 mm
Package depth: 90 mm
Package height: 60 mm
Package weight: 11.667 g
Package volume: 486 cm³

Logistics data

UK Trade Tariff code: 85369010
Country of origin: China
