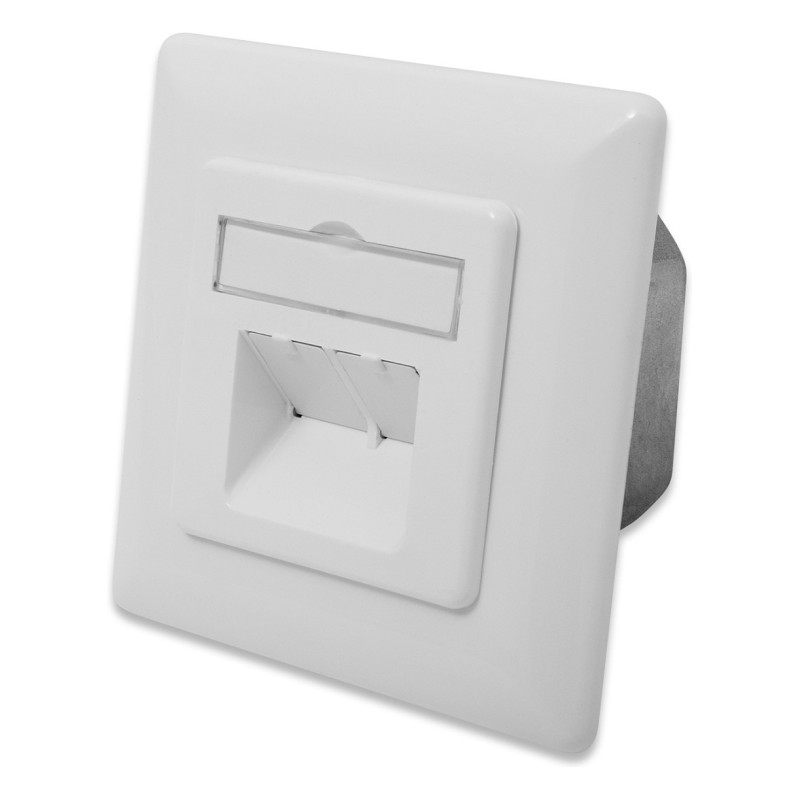

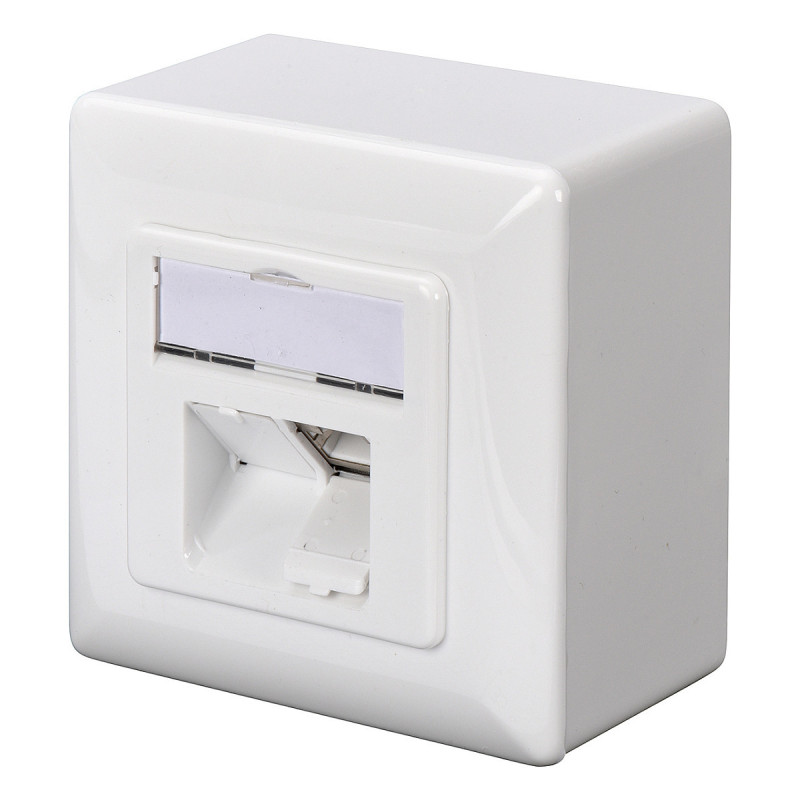

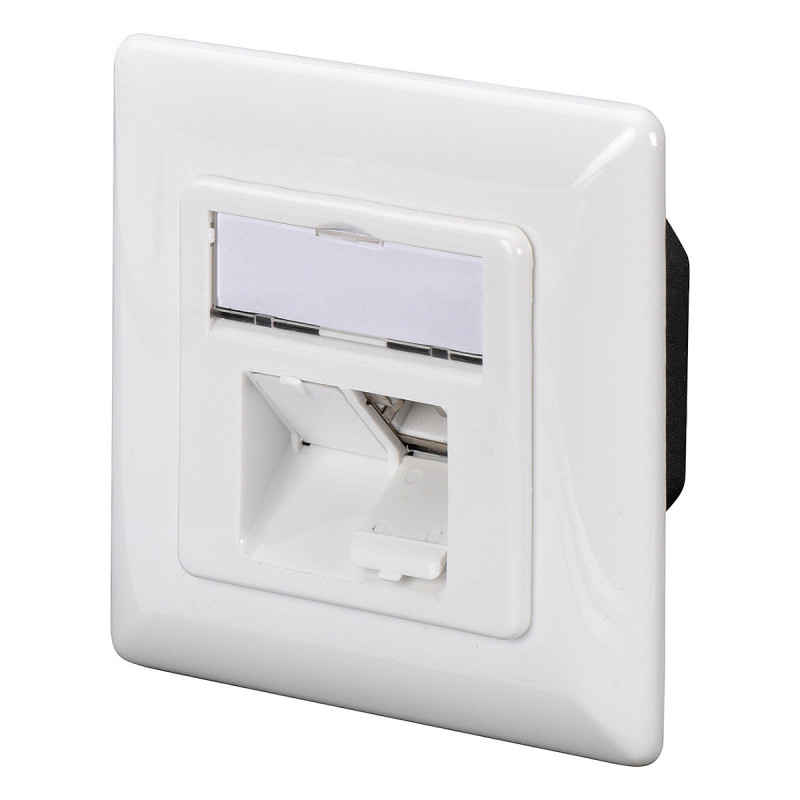

Digitus DN-9007-S-1 socket-outlet

Digitus CAT 6A, class EA, data socket, design-compatible, surface-mounted. Socket type: 2 x RJ-45, Modules quantity (max): 1 module(s), Networking cable category: 6a. Product colour: White, Housing material: ABS synthetics. Width: 80 mm, Depth: 38.5 mm, Height: 80 mm. Country of origin: China

Future-oriented standards and high-end quality for your network.

- Design compatible with standard switch ranges

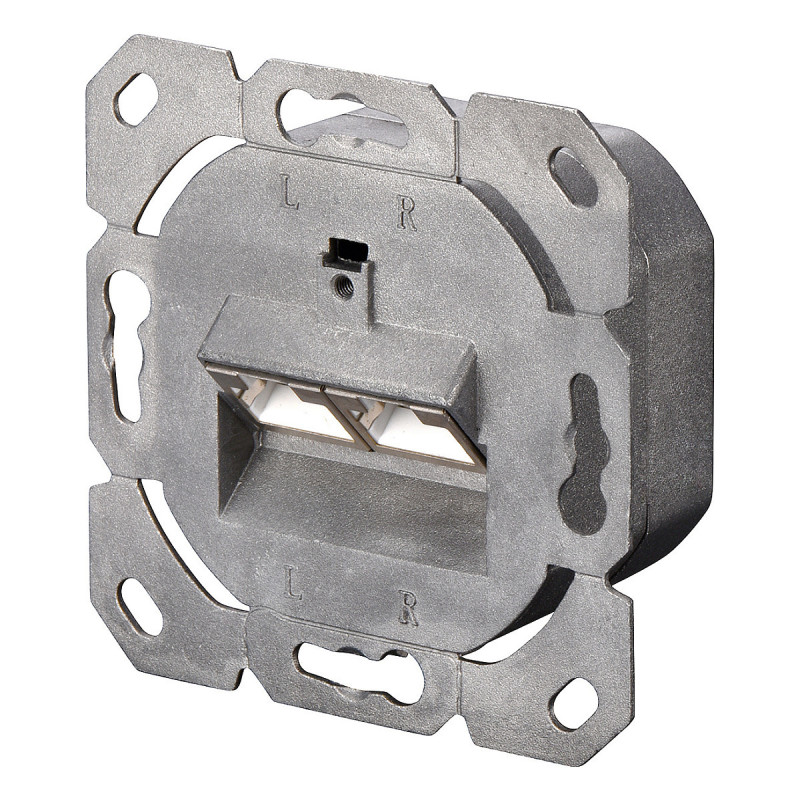

- Guaranteed safety thanks to fully shielded RJ45 sockets and LSA strips
- Easy installation thanks to color-coded IDC strips
- Central plate with integrated dust protection caps

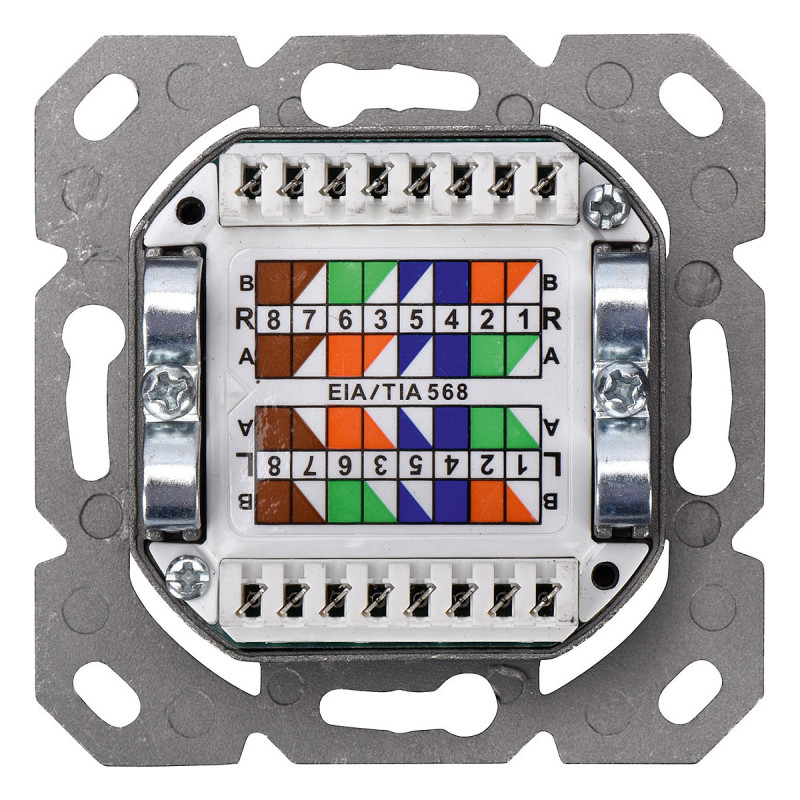

The CAT 6A data outlets from DIGITUS® are design-compatible with all standard switch ranges. They are certified to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 2 shielded RJ45 sockets. The cable is installed via LSA strips, color-coded in accordance with EIA/TIA 568 A & B.

Features

Socket type: 2 x RJ-45
Sockets quantity: 2
Modules quantity (max): 1 module(s)
Networking cable category: 6a
Insulation resistance: 500 MΩ

Design

Product colour: White
Housing material: ABS synthetics
Feature: Frame

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 80 mm
Depth: 38.5 mm
Height: 80 mm

Logistics data

Country of origin: China
Harmonized System (HS) code: 85366990
