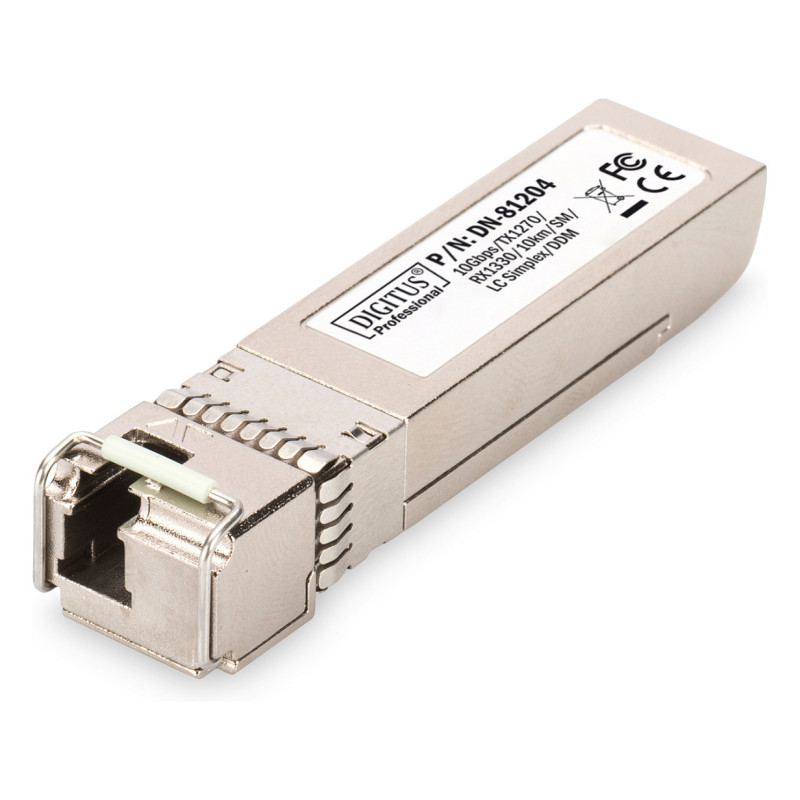

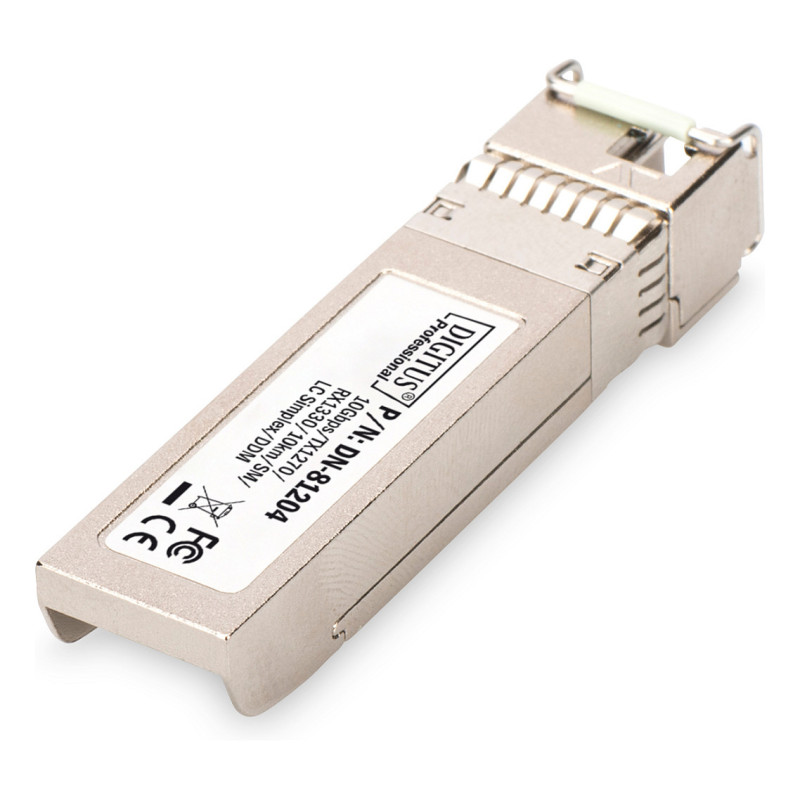

Digitus DN-81204 network transceiver module

Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Metallic, Brand compatibility: MSA Compliant. Certification: EN 60825-1. Quantity per pack: 1 pc(s). Package width: 93 mm, Package depth: 117 mm, Package volume: 348.192 cm³

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Distance up to 10km at a maximum data rate of 10Gbps
- Sends data in high quality and additionally provides excellent reliability

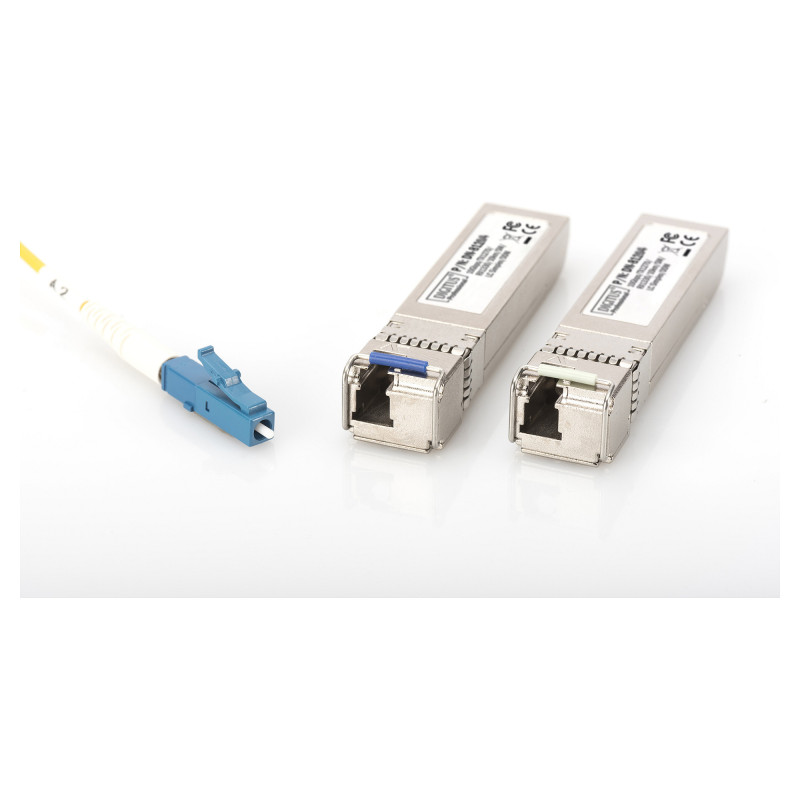

- Bidirectional WDM Module - Only one fiber is needed
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Single-mode fiber (SMF) supported
Feature: Multi-mode fiber (MMF) supported

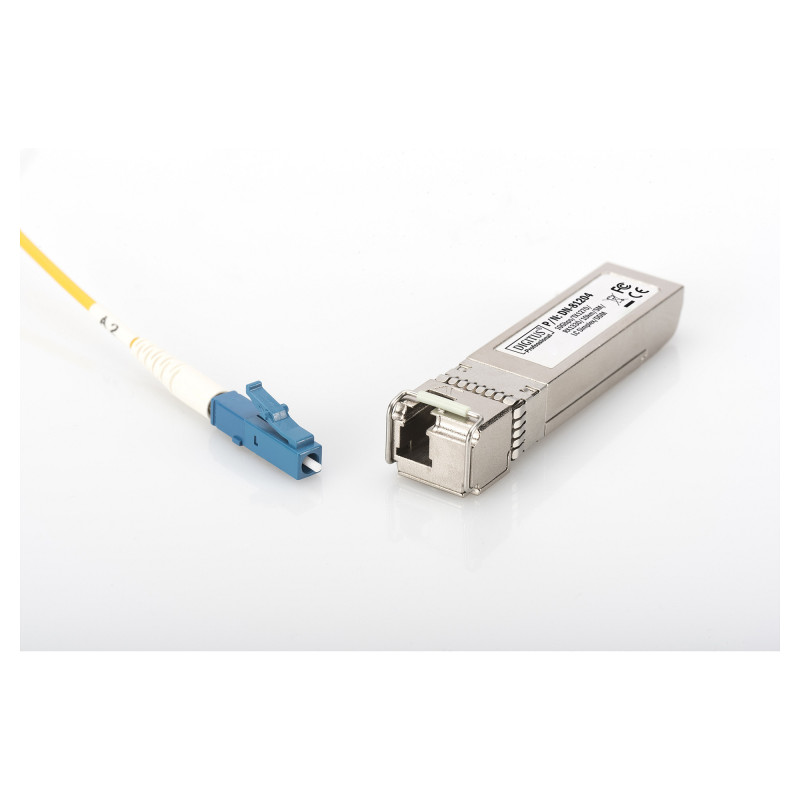

Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Tx wavelength (max): 1270 nm
Rx wavelength (max): 1330 nm
Ethernet interface type: 10 Gigabit Ethernet
Networking standards: IEEE 802.3ae
Feature: Digital Diagnostics Monitoring (DDM)
Fiber ports quantity: 1

Features

Product colour: Metallic
Feature: Plug and Play
Feature: Hot-Plug support
Brand compatibility: MSA Compliant

Certificates

Certification: EN 60825-1

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 93 mm
Package depth: 117 mm
Package volume: 348.192 cm³
Package weight: 58.333 g

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85369010
Country of origin: China
