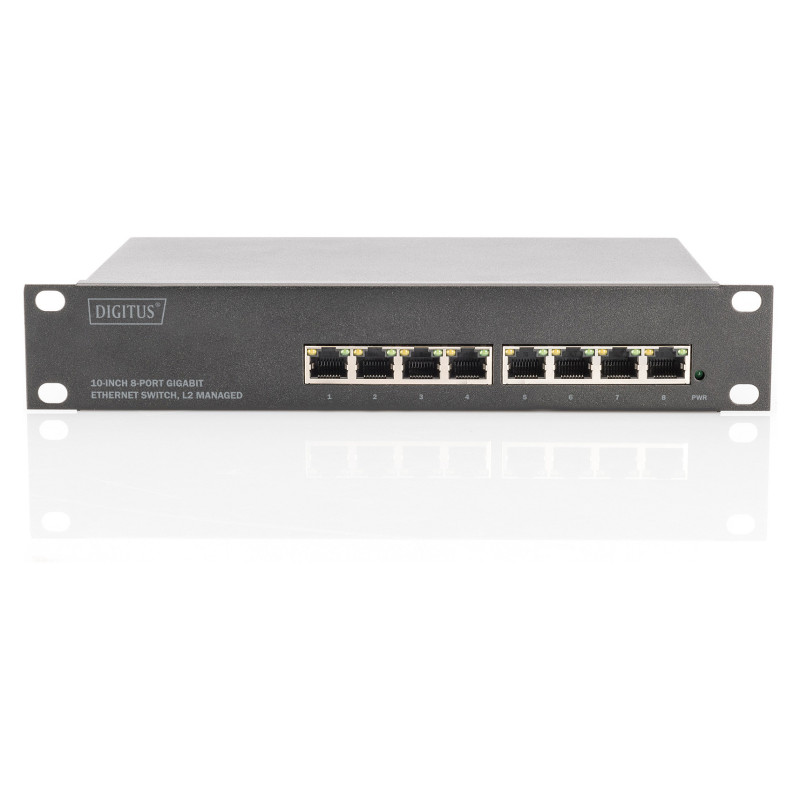

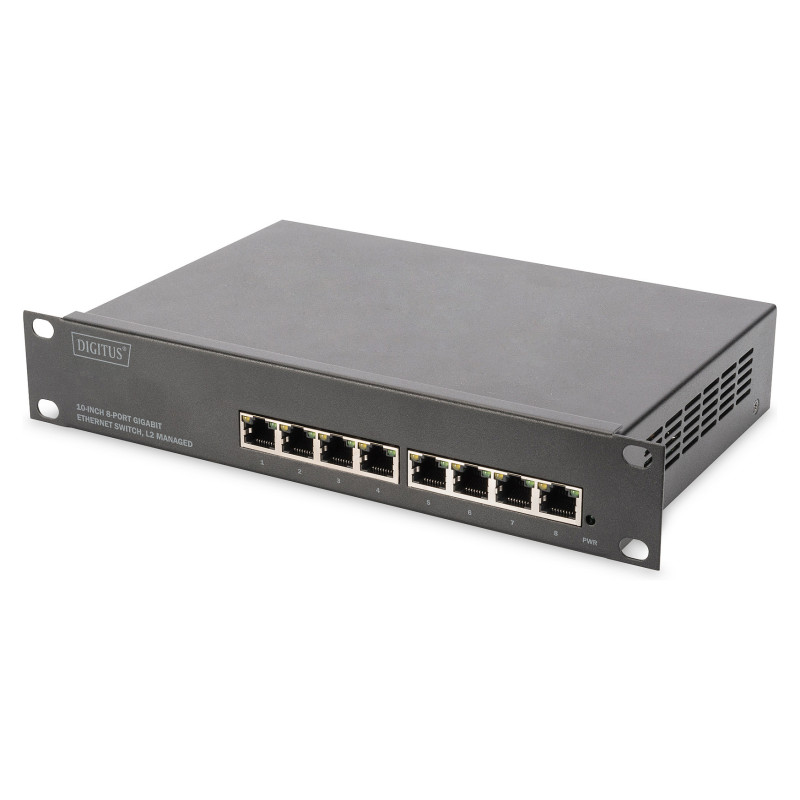

Digitus DN-80117 network switch

Digitus 10" Gigabit 8-Port L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Wall mountable, Rack mounting

Enables professional segmentation, prioritization and protection of networks in a compact 10" switch.

- L2+ managed switch with extensive enterprise features
- VLAN support (port-based & 802.1Q tag-based)
- Link aggregation with up to 8 groups
- STP, RSTP and MSTP for redundant structures
- IGMP snooping & multicast management for IPTV / CCTV
- QoS with 4 queues per port for prioritized applications
- Extensive ACL support (IP, MAC, ARP)
- Versatile management interfaces: WEB, SNMP, CLI, Telnet, SSH, TACACS+, RMON
- Supports IPv6 (ICMPv6, ND, MLD Snooping, IPv6 Telnet)
- Fanless metal housing for quiet 24/7 operation

The DIGITUS® DN-80117 is a professional 8-port Gigabit L2+ managed switch in 10" format designed for networks of small to medium-sized companies. It combines high Gigabit performance with extensive Layer 2 and Layer 2+ functions such as VLAN, QoS, link aggregation, spanning tree, multicast management and advanced security functions. With eight 10/100/1000Base-TX ports, a 16 Gbps backplane, jumbo frames up to 16 KB and a forwarding capacity of 11.9 Mpps, the switch is ideal for convergent networks with data, voice and video applications. Functions such as port control, port isolation, loop detection, port mirroring and rate limiting enable granular control of the network infrastructure. The DN-80117 also supports IPv6, IGMP snooping, MLD snooping, static routing, up to 32 VLAN interfaces and multiple authentication methods (e.g. RADIUS). It can be managed flexibly via Web GUI, SNMP, CLI, Telnet, SSH or TACACS+, making it ideal for professional IT environments. Top USP: Full L2+ management functions in a compact 10" design for SME networks.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support

Data transmission

MAC address table: 8000 entries

Security

Feature: IGMP snooping
Feature: MAC address filtering
Feature: IP-MAC-Port binding

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Link, Power
Feature: Wall mountable

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 15 W

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 20 - 85%

Weight & dimensions

Width: 250 mm
Depth: 150 mm
Height: 44 mm
Weight: 1.14 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package width: 240 mm
Package depth: 70 mm
Package volume: 5376 cm³
Package weight: 1.6 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
