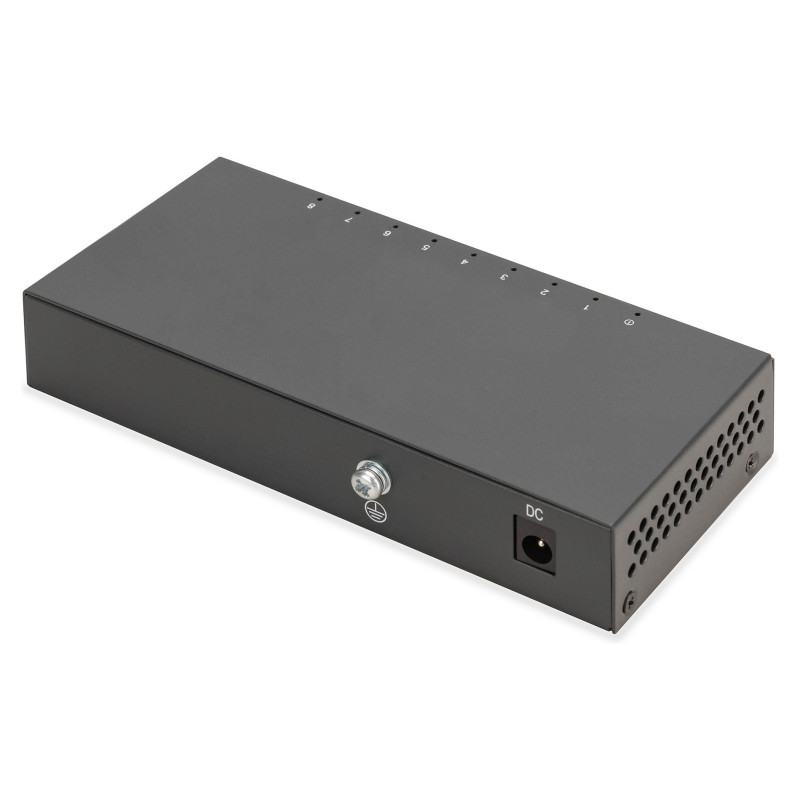

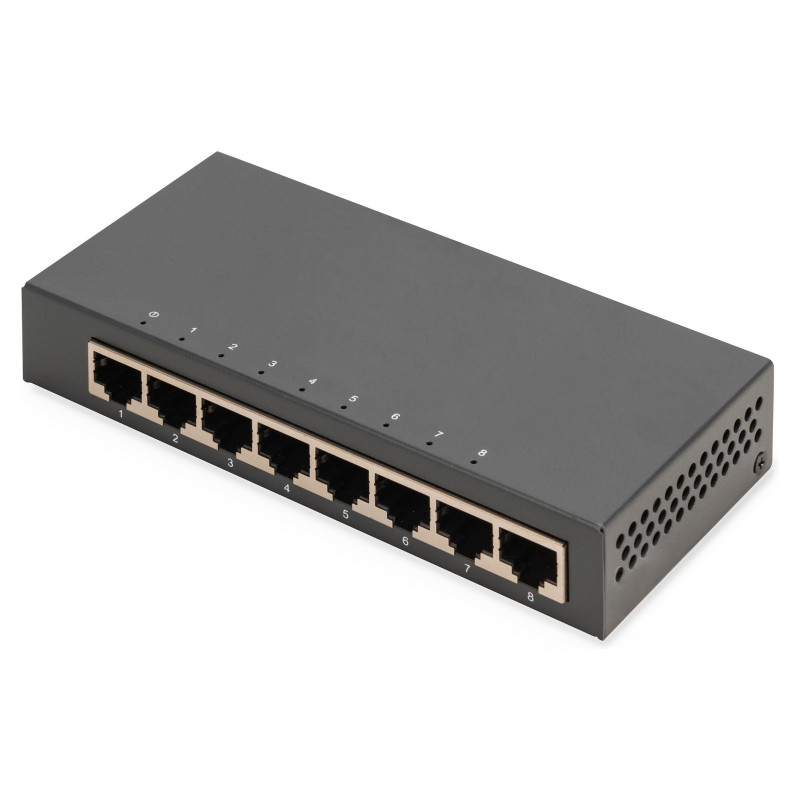

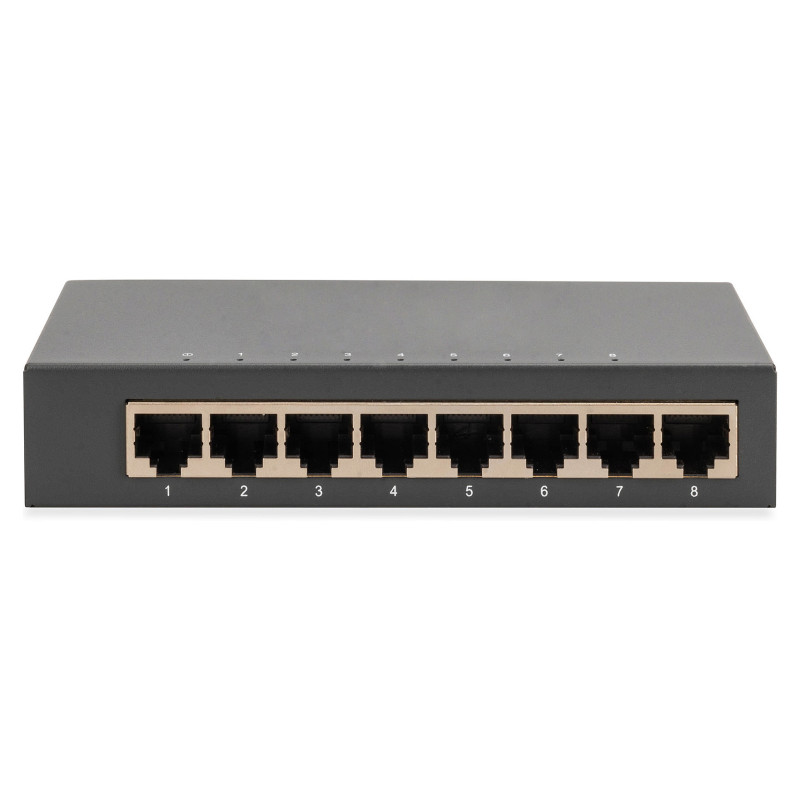

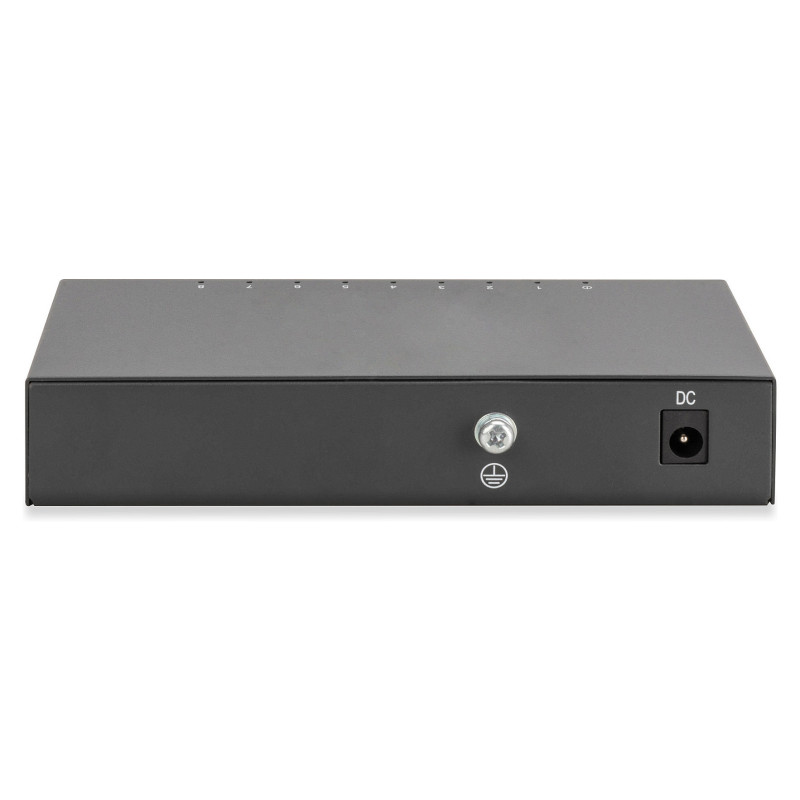

Digitus DN-80066-1 network switch

Digitus 8-port Gigabit switch, desktop, unmanaged, metal housing. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

The DN-80066-1 offers a simple, cost-effective and powerful way to bring your home or office network up to Gigabit speed.

- Gigabit speed: 8 adaptive 10/100/1000Mbps RJ45 ports offer ultra-fast network connections
- Simple installation: plug-and-play functionality, no configuration required
- High compatibility: Supports MDI/MDIX auto-flip for easy connection to various network devices
- Silent operation: fanless design for quiet and trouble-free operation
- Compact design: With dimensions of 140x67x26mm, it fits into any network environment
- Reliable performance: 16Gbps switching capacity and 11.9Mpps forwarding rate ensure smooth data traffic
- Low energy consumption: only 5W power consumption, ideal for continuous operation
- Stable connection: 4K MAC address table with auto-learning and auto-aging for efficient network management
- Safe operation: Supports earthing to protect against lightning strikes and overvoltage
- Wide range of applications: Ideal for home networks, small offices, hotels and campus networks

The DN-80066-1 SOHO network switch is the ideal solution for home networks and small offices. With 8 Gigabit ports, it offers fast and reliable connections for all your devices. Thanks to its simple plug-and-play installation and compact, fanless design, it requires little maintenance and fits perfectly into any network environment.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power

Performance

Feature: Fanless

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 - 240 V
DC input voltage: 5 V
Input current: 1 A
Power consumption (typical): 5 W

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 67 mm
Depth: 140 mm
Height: 26 mm
Weight: 435 g

Packaging content

Feature: Quick start guide

Packaging data

Package width: 92 mm
Package depth: 149 mm
Package height: 69 mm
Package volume: 945.85 cm³
Package weight: 400 g

Logistics data

Country of origin: China
