Digitus DN-652103-1 network media converter

Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-FX, 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX, Converter output interface: 1000Base-FX. Maximum transfer distance: 80000 m, Fiber mode structure: Multi-mode, Single-mode, Buffer size: 1200 KB. LED indicators: Link, Power, Product colour: Black, Blue, Housing material: Aluminium. Fiber optic connector: FX, Connectivity technology: Wired. Input voltage: 12 - 48 V, Power consumption (typical): 3 W

Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire.

- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism, support a variety of protocols
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours

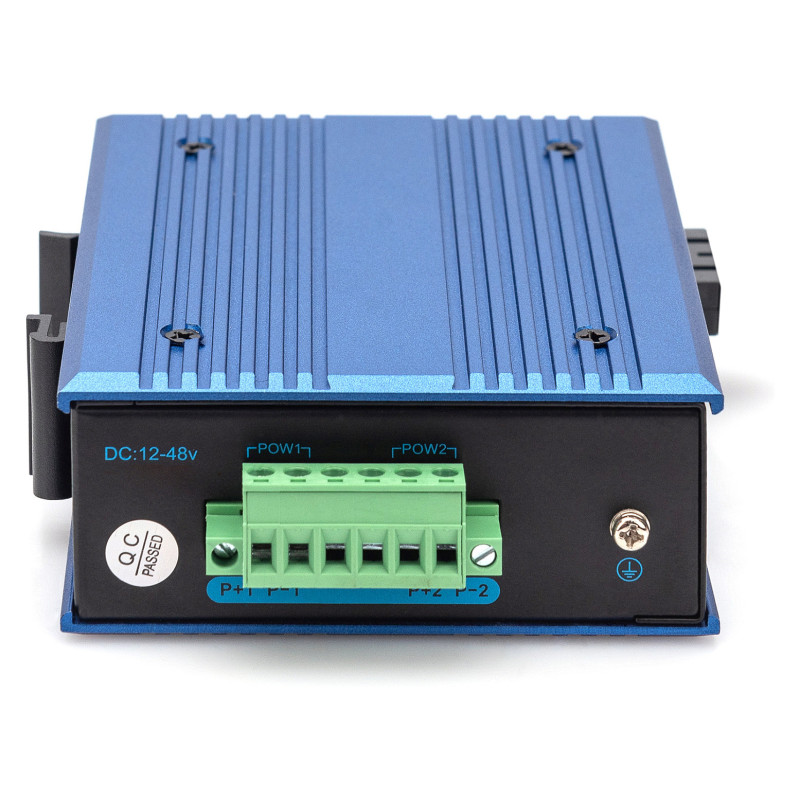

- Working power supply: DC 12-48V to provide reverse protection

Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire. The Digitus DN-652103-1 series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40°C to 80°C allows the Digitus DN-652103-1 series to be placed in almost any difficult environment. Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000 Base-TX and 1000 Base-FX network. The Digitus DN-652103-1 series provides the flexibility to all kinds of 10/100/1000 Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. The Digitus DN-652103-1 series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-FX, 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX
Converter output interface: 1000Base-FX
Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,1000,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
Fiber ethernet cabling technology: 1000BASE-FX
Data transfer rate: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half
Cable types supported: Cat3, Cat4, Cat5

Performance

Maximum transfer distance: 80000 m
Fiber mode structure: Multi-mode, Single-mode
Buffer size: 1200 KB
Mean time between failures (MTBF): 300000 h

Features

LED indicators: Link, Power
Product colour: Black, Blue
Housing material: Aluminium
International Protection (IP) code: IP40

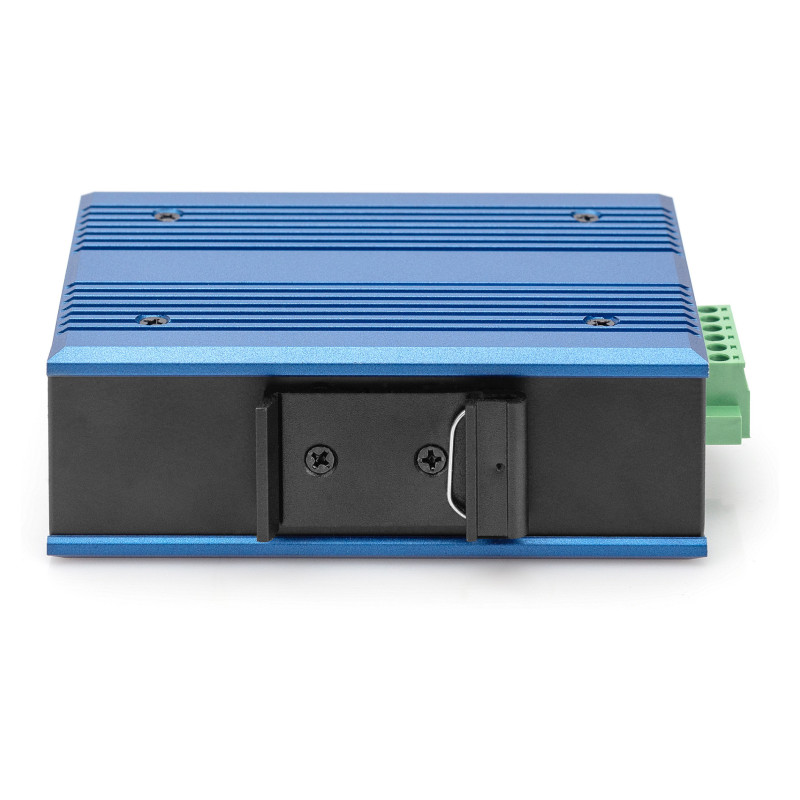

Feature: DIN rail mounting

Ports & interfaces

Connectivity technology: Wired

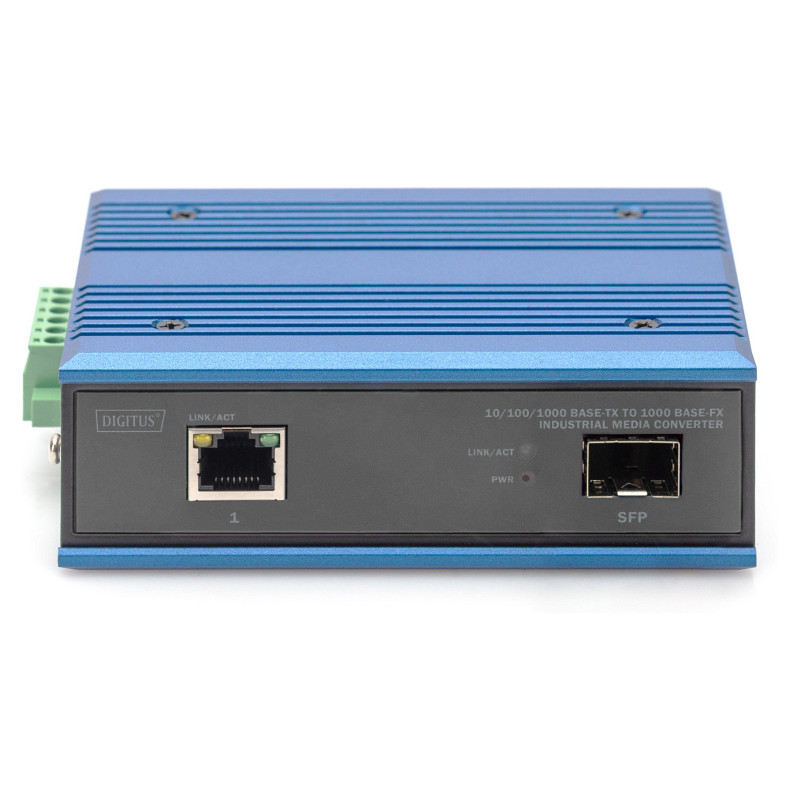

Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 2
Fiber optic connector: FX

Power

Input voltage: 12 - 48 V
Power consumption (typical): 3 W

Weight & dimensions

Width: 118 mm
Depth: 92.4 mm
Height: 40 mm
Weight: 400 g

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C

Packaging content

Feature: Quick installation guide

Packaging data

Package width: 135 mm
Package depth: 54 mm
Package height: 165 mm
Package volume: 1202.85 cm³
Package weight: 558.333 g

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
