Digitus DN-651158 network switch

Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3x. DC input voltage: 12 - 48 V

16x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 Management functions. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C.

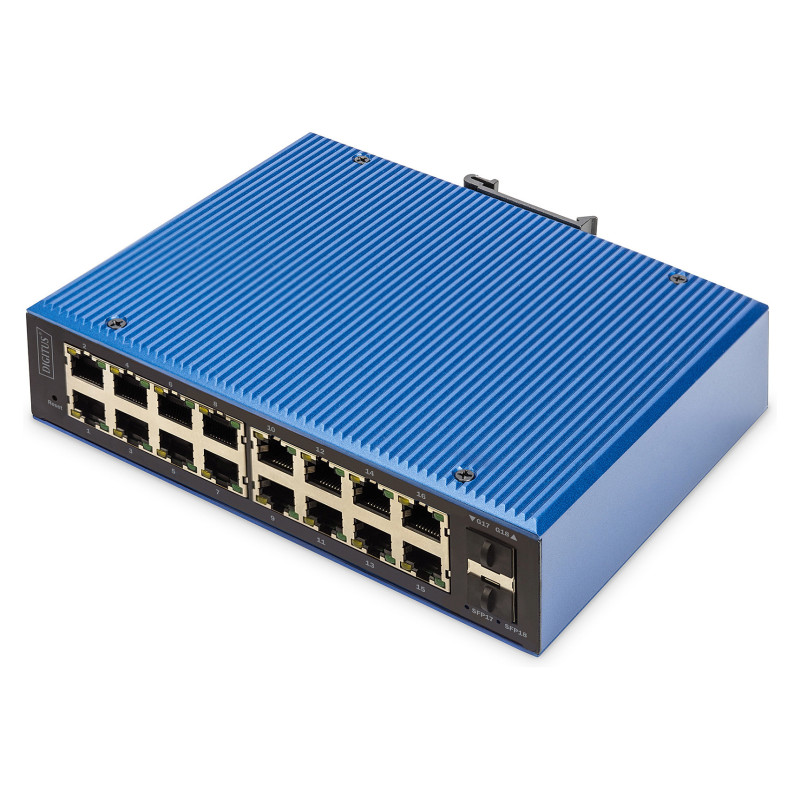

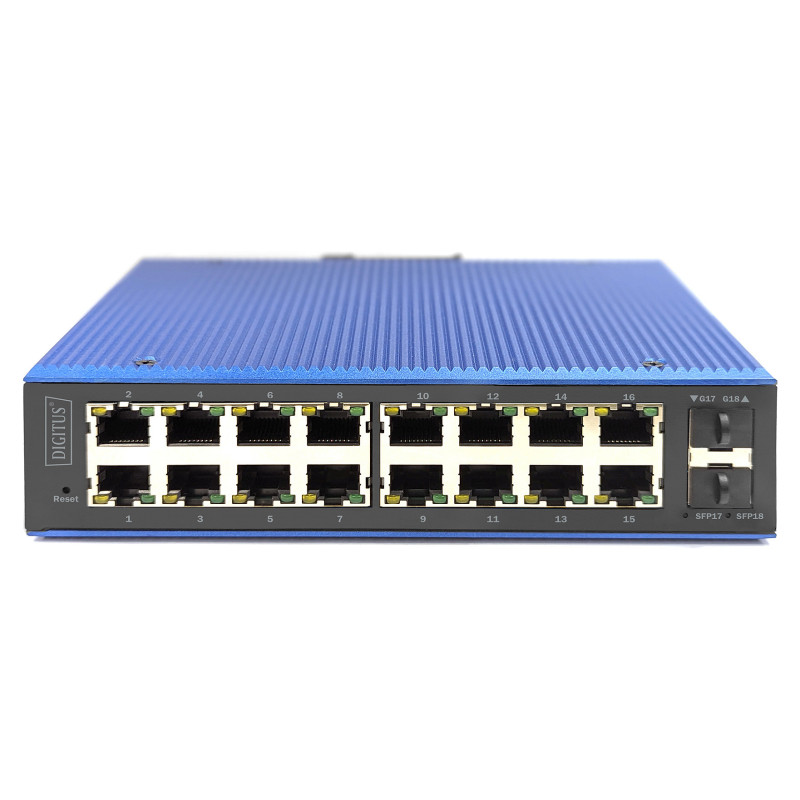

- 16 port GE RJ45, 2 SFP GE ports
- 16 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)

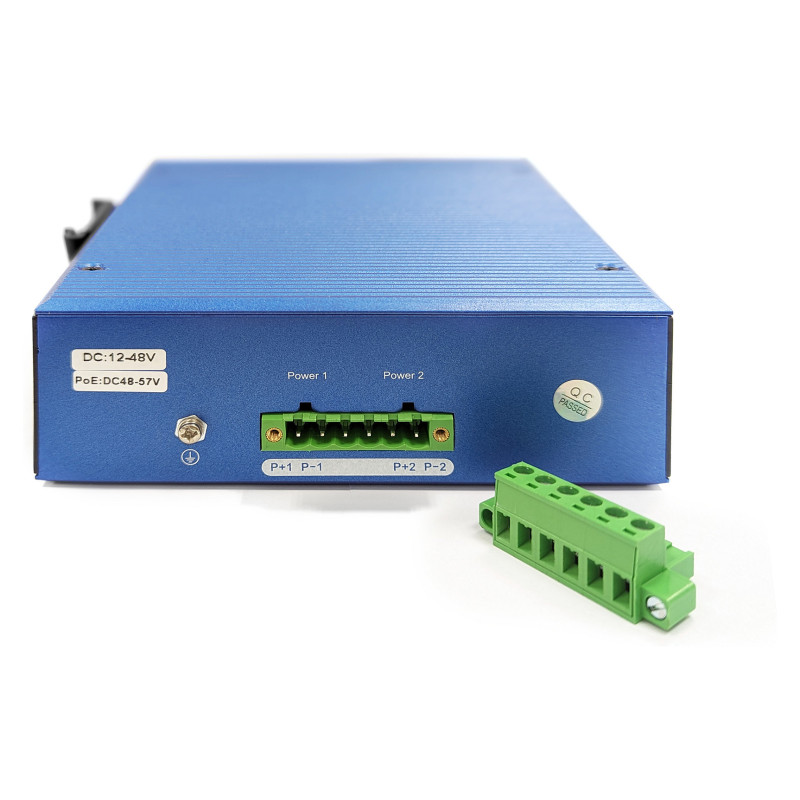

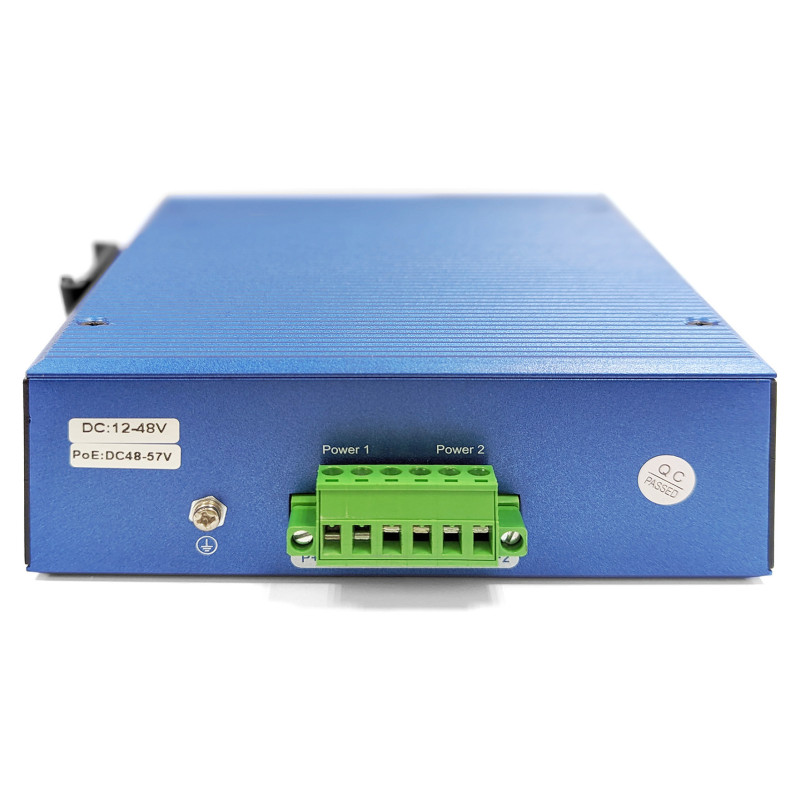

- Redundant power supply 12-48 V (DC)
- Metal housing according to IP40 standard

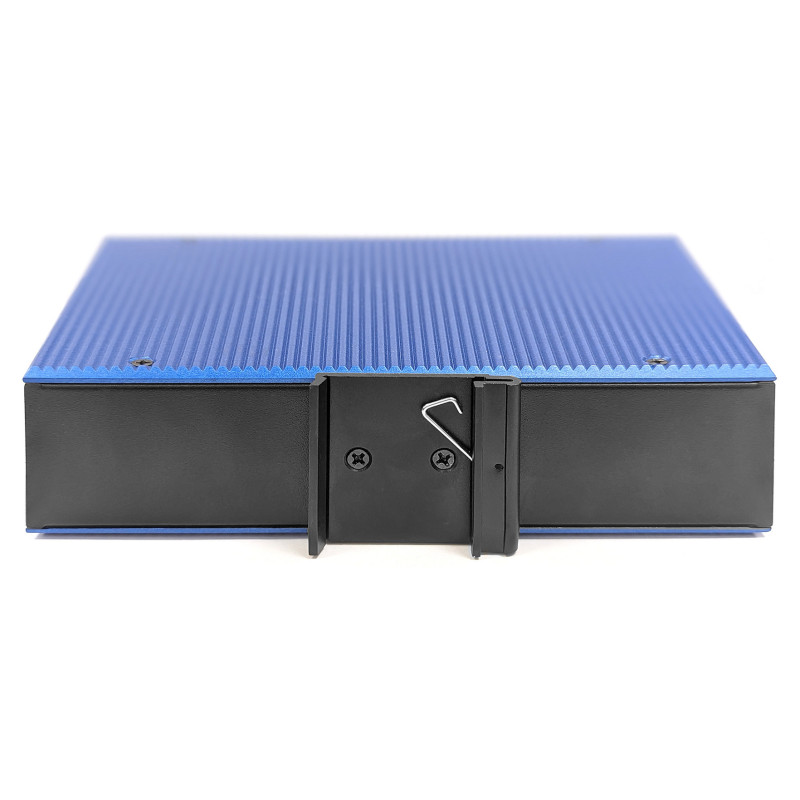

- Easy mounting on a top hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems

The Digitus DN-651158 Ethernet switch with 16 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Stay in control with comprehensive management options such as SNMP and CLI. Our switch is a reliable network solution with advanced features for your needs.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Installed SFP modules quantity: 2
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Ethernet LAN data rates: 10,100,1000 Mbit/s
Virtual LAN features: IP subnet-based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 42 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4.1 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering

Design

Product colour: Black, Blue
Housing material: Metal
International Protection (IP) code: IP40
Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 48 V
Power consumption (typical): 15 W
Feature: Surge protection
Surge protection voltage: 4 kV

Other features

Bandwidth: 56 Gbit/s
Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 175.6 mm
Depth: 135 mm
Height: 45.5 mm
Weight: 1.1 kg

Packaging content

Feature: Quick start guide

Packaging data

Package width: 186 mm
Package depth: 72.5 mm
Package height: 298 mm
Package volume: 4018.53 cm³
Package weight: 685 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
