Digitus DN-651154 network switch

Digitus Industrial 4+2 -Port L2 managed Gigabit Ethernet Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3x. DC input voltage: 12 - 48 V
4 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 manageable, IP40 housing with redundant power supply, ideal for monitoring, control management and wireless services at -40 to 80 .

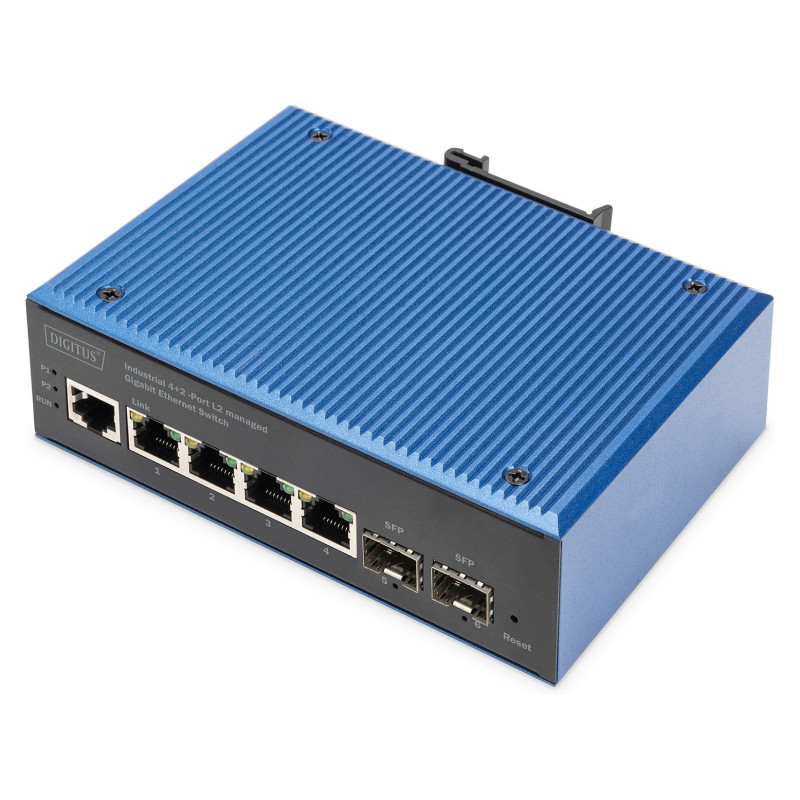

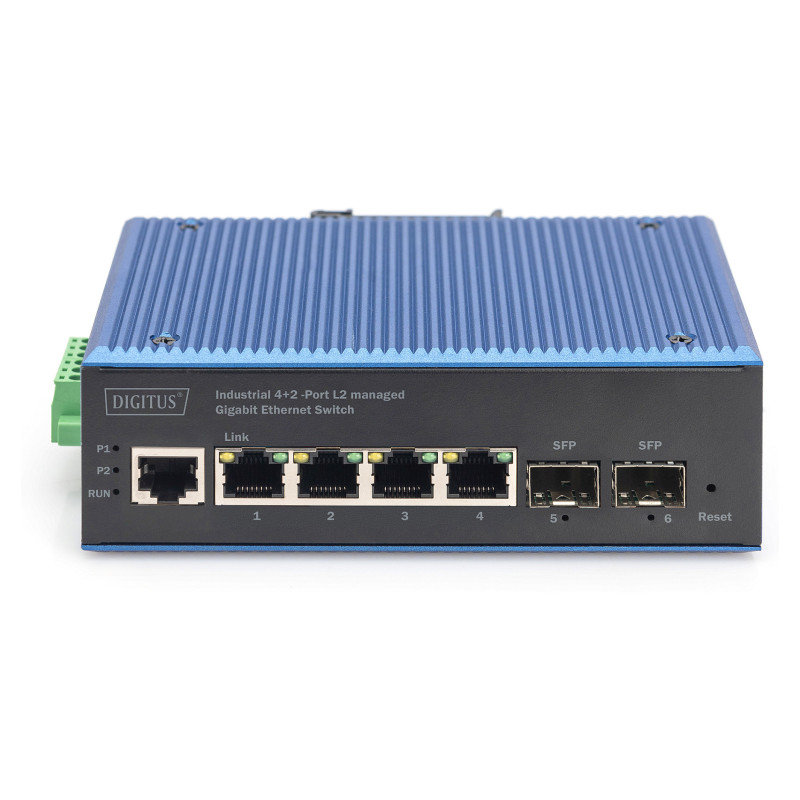

- 4 port GE RJ45, 2 SFP GE ports
- 4 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)

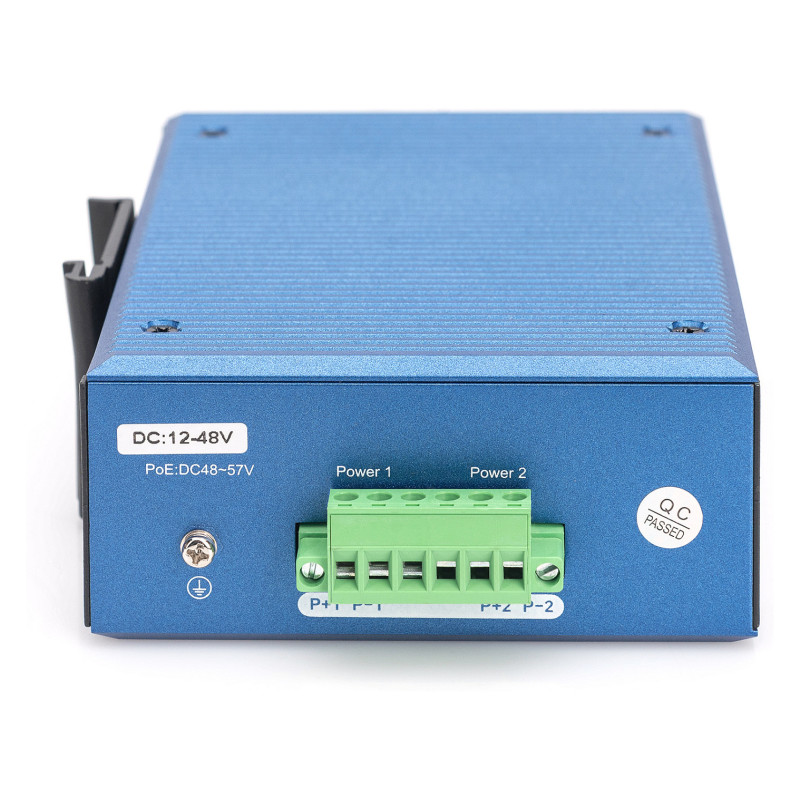

- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

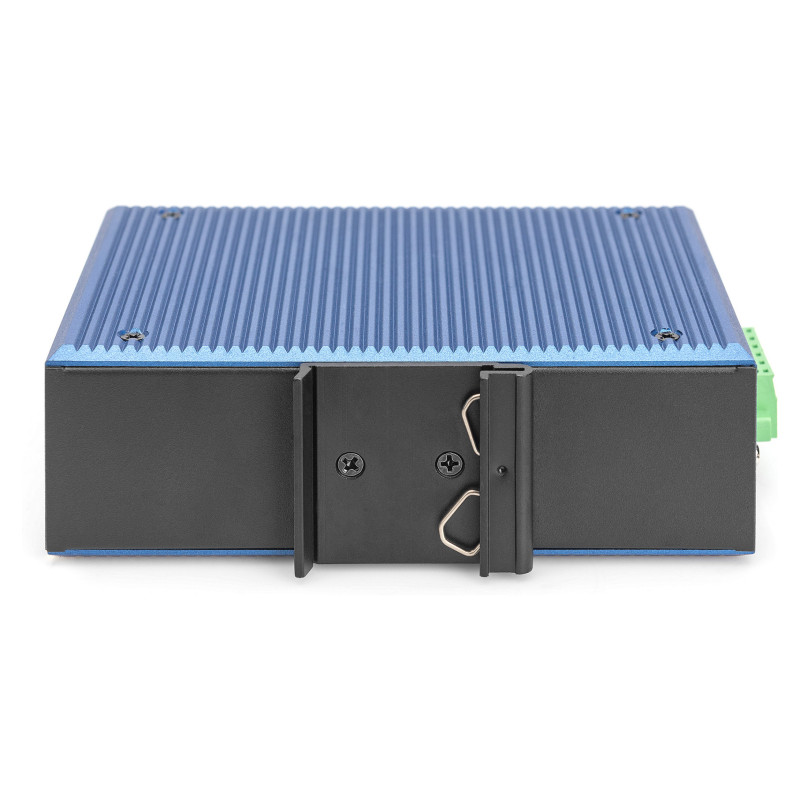

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD EFT protection up to 8 kV (DC)
- Ideal for connecting camera systems
The Digitus DN-651154 Ethernet switch with 4 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in the event of failures. With IGMP and MLD snooping, you can optimize multicast data traffic. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritization. Extensive management options such as SNMP and CLI keep you in control. Our switch is a reliable network solution with advanced features to meet your needs.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
Installed SFP modules quantity: 2
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Ethernet LAN data rates: 10,100,1000 Mbit/s
Virtual LAN features: IP subnet-based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 15 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4.1 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering

Design

Product colour: Black, Blue
Housing material: Metal
International Protection (IP) code: IP40
Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 48 V
Power consumption (typical): 5 W
Feature: Surge protection
Surge protection voltage: 4 kV

Other features

Bandwidth: 20 Gbit/s
Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 143.7 mm
Depth: 104 mm
Height: 47.7 mm
Weight: 700 g

Packaging content

Feature: Quick start guide
Feature: Manual

Packaging data

Package width: 158 mm
Package depth: 66 mm
Package height: 213 mm
Package volume: 2221.16 cm³
Package weight: 635 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
