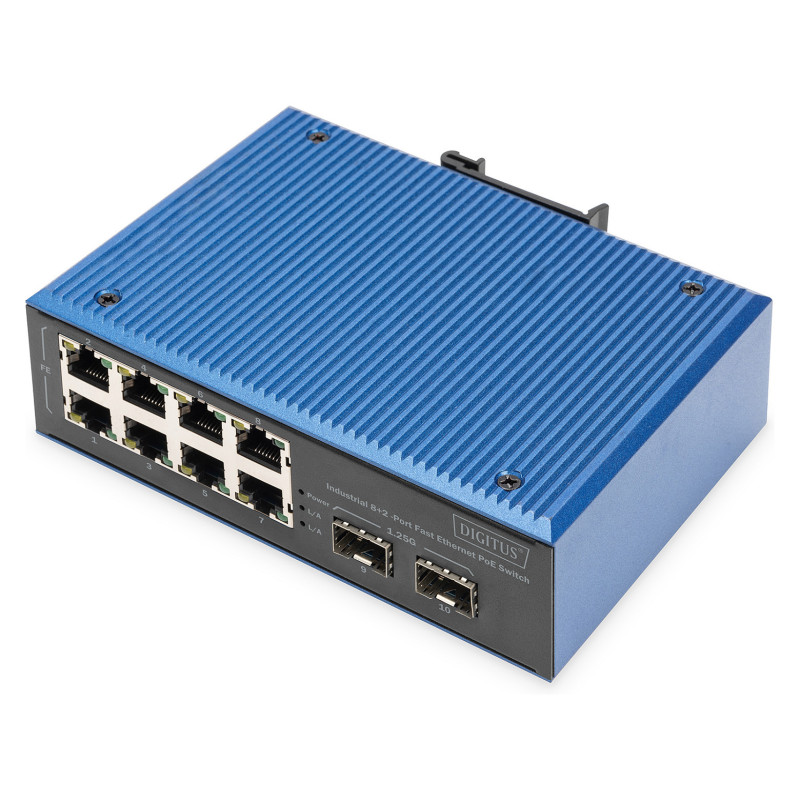

Digitus DN-651147 network switch

Digitus Industrial 8+2 port Fast Ethernet PoE switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

8x PoE 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40 to 80 .

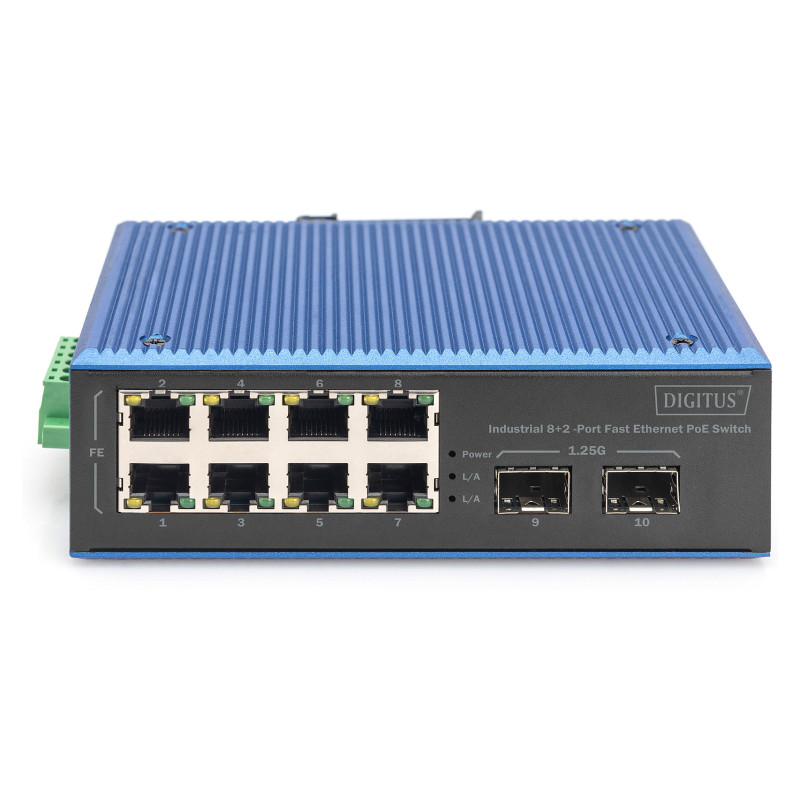

- Number of network connections: 8 port FE, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ45, PoE 802.3af/at)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)

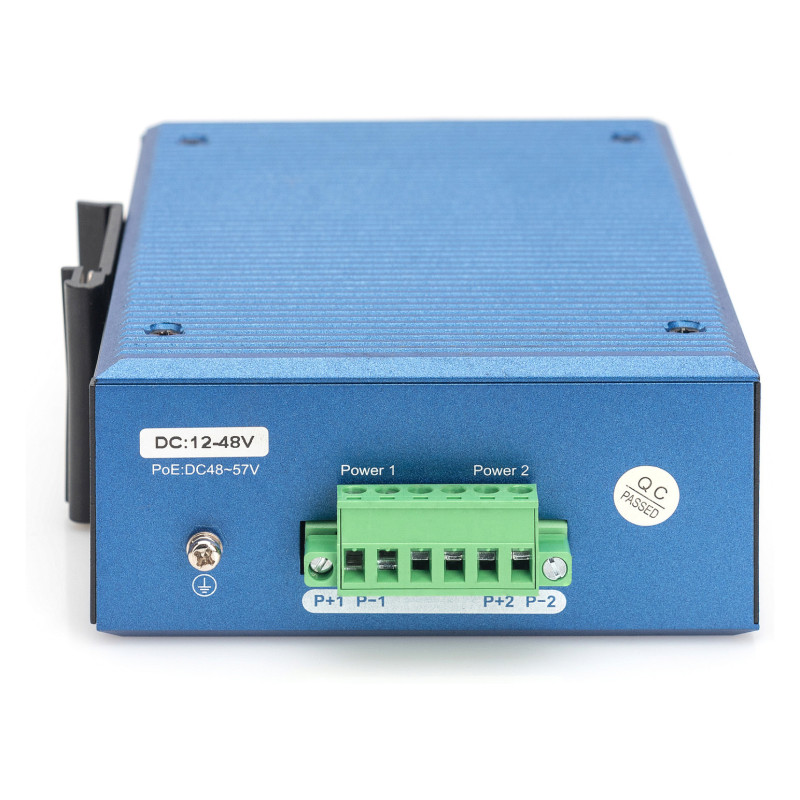

- Redundant power supply 48-57 V (DC)
- Metal housing to IP40 standard

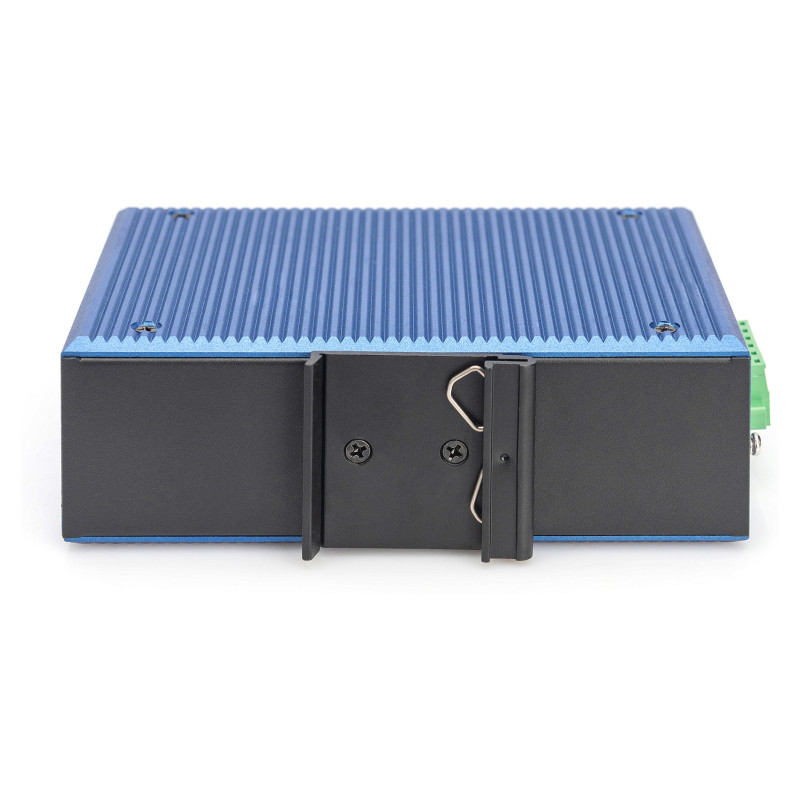

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651147 is a robust 8+2 port Industrial Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100BASE-TX RJ45 (up to 30 W PoE each) + 2x 1000Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40 to 80 .

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Installed SFP modules quantity: 2
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.3af
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 4.2 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.2 MB

Design

Product colour: Black, Blue
Housing material: Metal
International Protection (IP) code: IP40
Feature: DIN rail mounting

Performance

Feature: Plug and Play
Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 48 - 57 V
Power consumption (typical): 8 W
Feature: Surge protection
Surge protection voltage: 4 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Other features

Bandwidth: 5.6 Gbit/s
Ethernet interface type: Fast Ethernet

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 143.7 mm
Depth: 104 mm
Height: 47.7 mm
Weight: 700 g

Packaging content

Feature: Quick start guide
Feature: Manual

Packaging data

Package width: 158 mm
Package depth: 66 mm
Package height: 213 mm
Package volume: 2221.16 cm³
Package weight: 700 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
