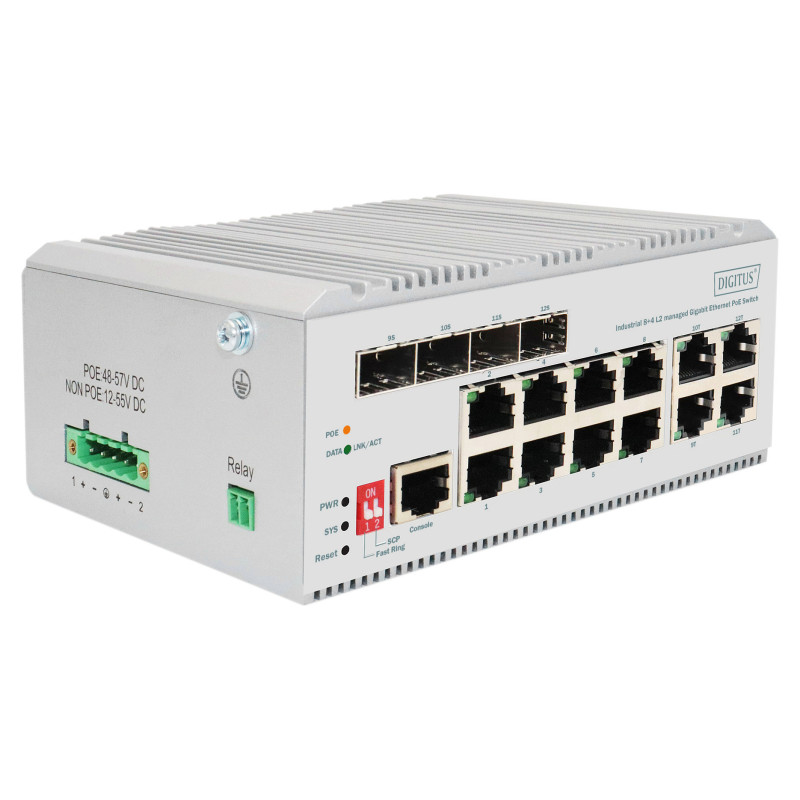

Digitus DN-651139 network switch

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, L2 managed, 4 SFP uplink. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 48 - 57 V

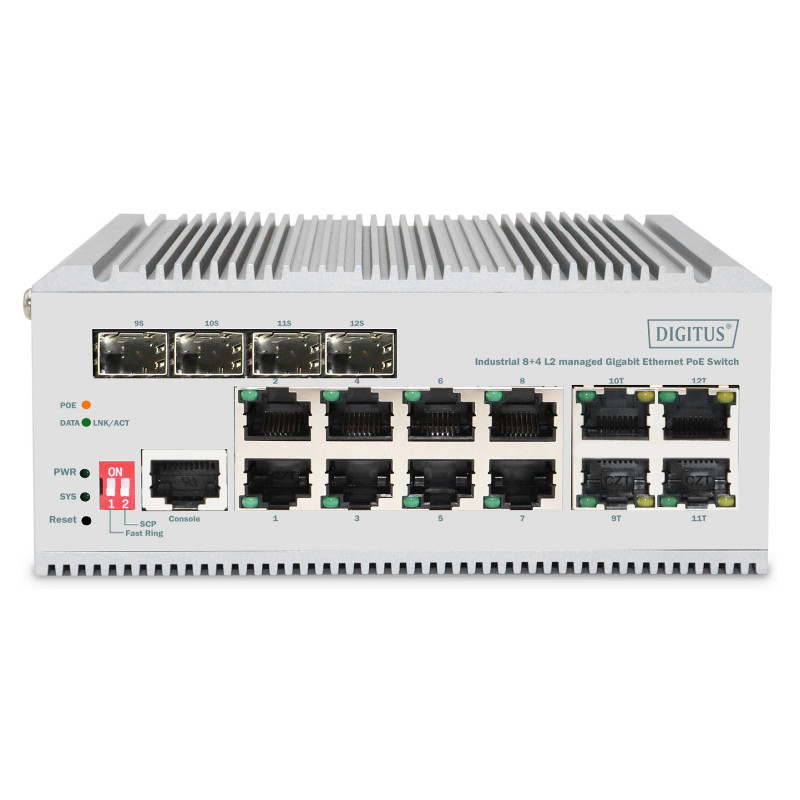

The DN-651139 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port.

- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards
- PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
- Data transmission and power supply distance is 100 meters.
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control, Panel indicators monitor working status and assist in fault analysis.
- High energy aluminum alloy roof heat conduction groove design.
- Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
- High reliability design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology.
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup.
- Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
- Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP

The DN-651139 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651139 offers excellent security policy, QoS policy, and rich VLAN function. Additionally, it has a ring network function that allows you to set up a ring network. With this feature, the switches form a ring network topology manually. The ring network is redundant, highly reliable, and won't affect data forwarding in case a link is broken. The device is designed with a no-fan, low power consumption design, making it easy to use, compact, and beautiful. It is also simple to install. The product meets Ethernet standards, has lightning protection, static protection mechanisms, and operates in a temperature range of -40°C to 75°C. This guarantees stable performance, safety, and reliability. V1 can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, among others.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Console port: RJ-45

Network

Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: MAC address auto-learning supported
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Optical fiber

Transmission distance (max): 0.1 km

Data transmission

Switching capacity: 24 Gbit/s
Forwarding rate: 17.86 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication type: RADIUS, TACACS+

Design

Product colour: Grey
Housing material: Aluminium
LED indicators: Activity, Link, PoE, Power, System

Performance

Feature: Telnet
Feature: Fanless
Mean time between failures (MTBF): 100000 h

Power

Power source: DC/PoE
DC input voltage: 48 - 57 V
Power consumption (max): 200 W
Feature: Surge protection

Power over Ethernet (PoE)

Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 185 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 109 mm
Depth: 145 mm
Height: 62 mm

Packaging data

Package width: 190 mm
Package depth: 234 mm
Package height: 86 mm
Package volume: 3823.56 cm³
Package weight: 1.48 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
