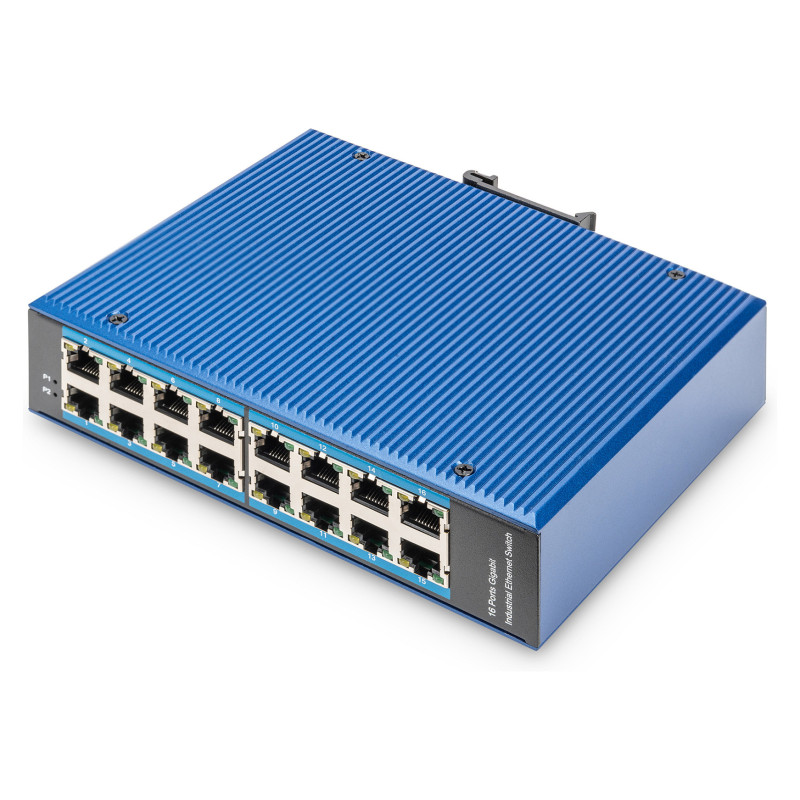

Digitus DN-651129 network switch

Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 - 52 V. Power connector: DC-in jack

Robust and durable industrial solution for high temperature ranges and rough industrial environments - redundant power supply possible

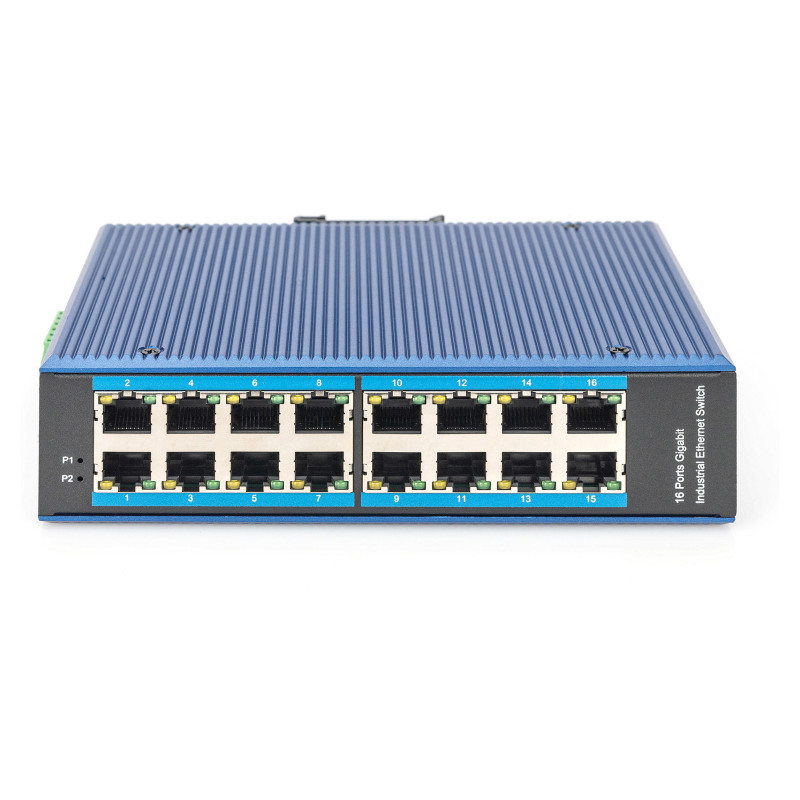

- 16 x RJ45 ports 10/100/1000 Mbps
- Suitable for high temperature ranges from -40 °C to +80 °C

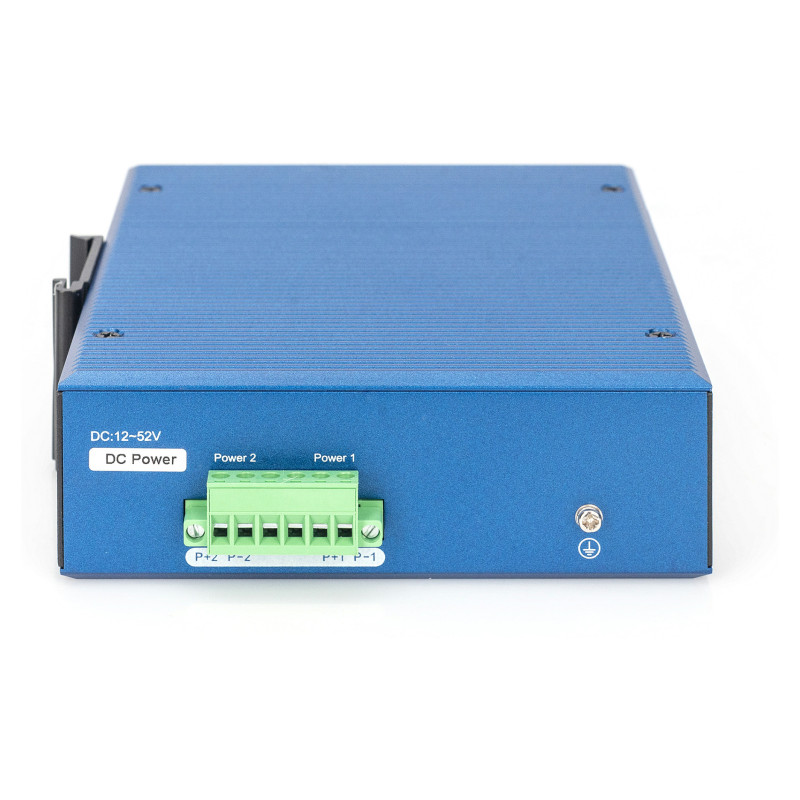

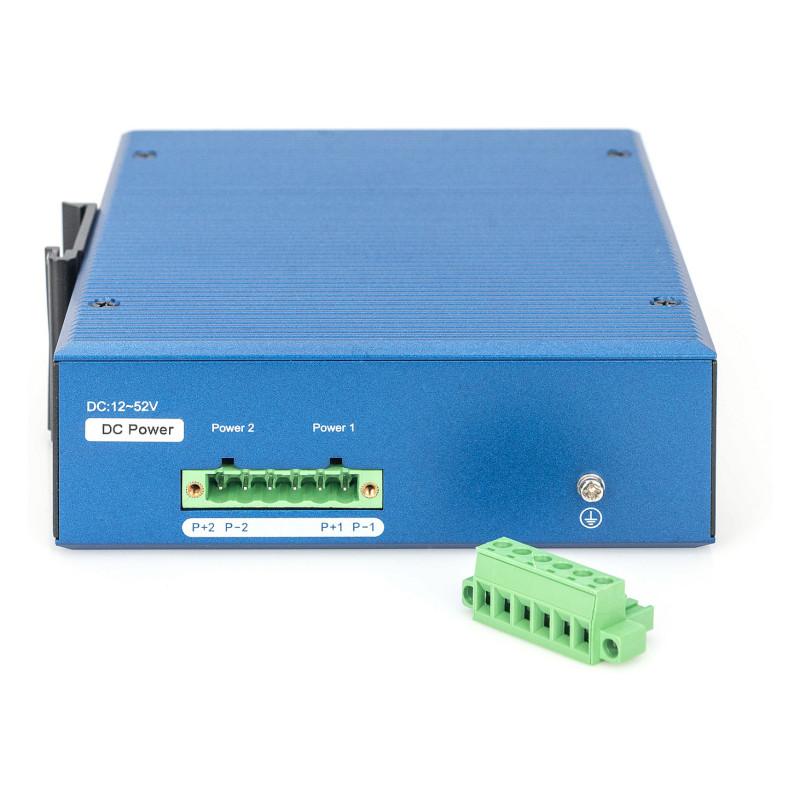

- Redundant power supply via terminal clamps

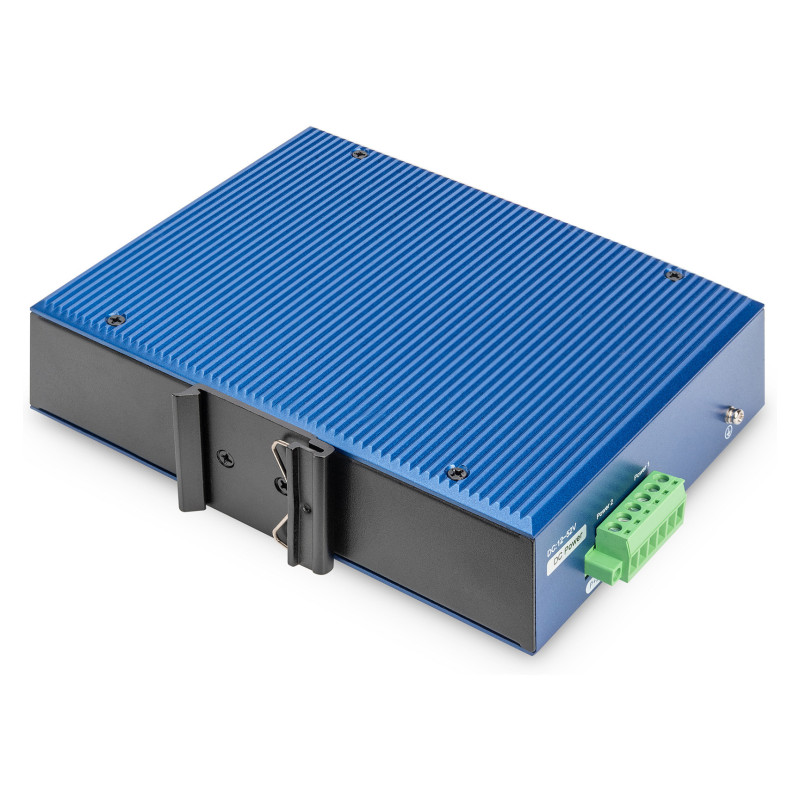

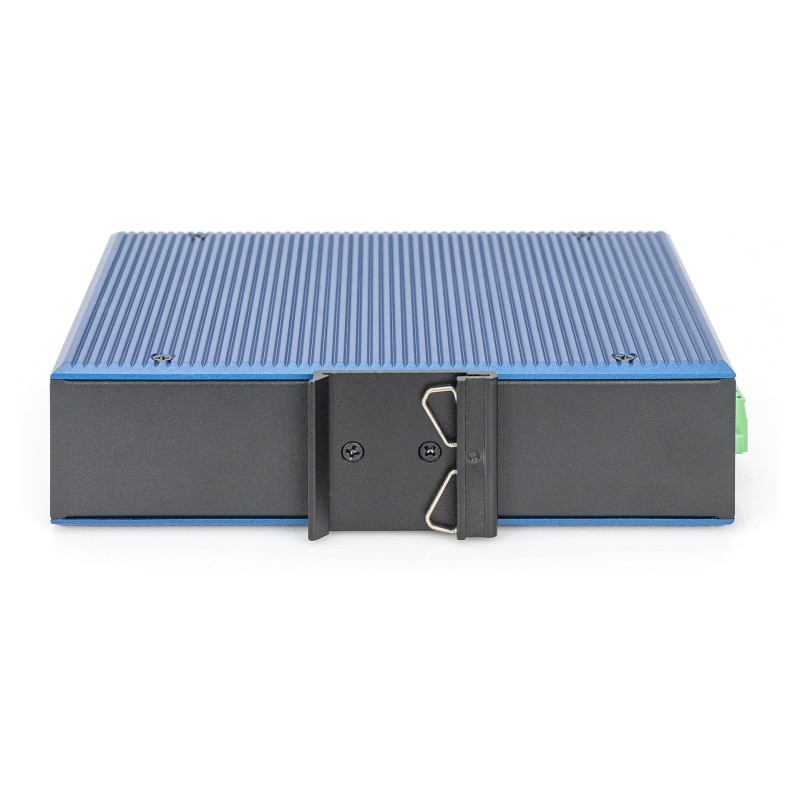

- Suitable for mounting on DIN rails (profile rail)
- Protects against impact and vibrations
- Integrated surge protection
- Full-duplex flow control IEEE802.3x
- Auto-Negotiation / Auto MDI/MDI-X Function
- Fanless design with protection type IP40

The DIGITUS® Industrial Gigabit Switch was designed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 85 °C, the Gigabit Switch with an IP40 housing can be used under the most adverse of conditions. Thanks to redundant power supply, it guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. With its 16 Gigabit Ethernet ports, it is designed for a wide range of applications.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 42 Mpps
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB

Design

Product colour: Blue
Housing material: Aluminium
International Protection (IP) code: IP40
Feature: DIN rail mounting

Performance

Feature: Fanless
Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 52 V
Power consumption (typical): 10 W
Feature: Surge protection
Surge protection voltage: 4 kV

Other features

Bandwidth: 56 Gbit/s
Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 175.6 mm
Depth: 135 mm
Height: 45.5 mm
Weight: 900 g

Packaging content

Feature: Manual

Packaging data

Package width: 208 mm
Package depth: 186 mm
Package height: 72.5 mm
Package volume: 2804.88 cm³
Package weight: 1.08 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
