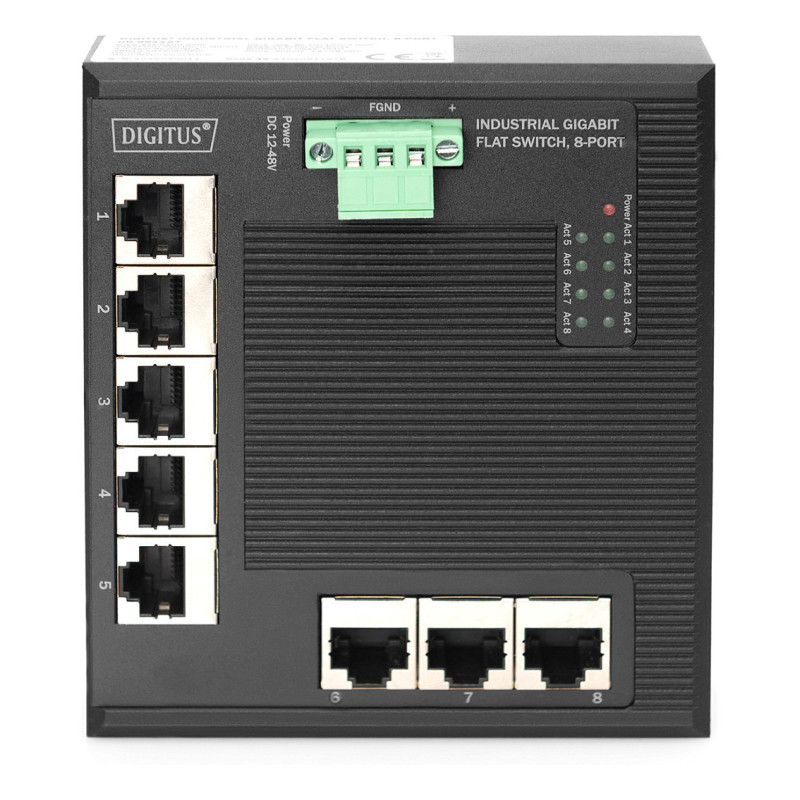

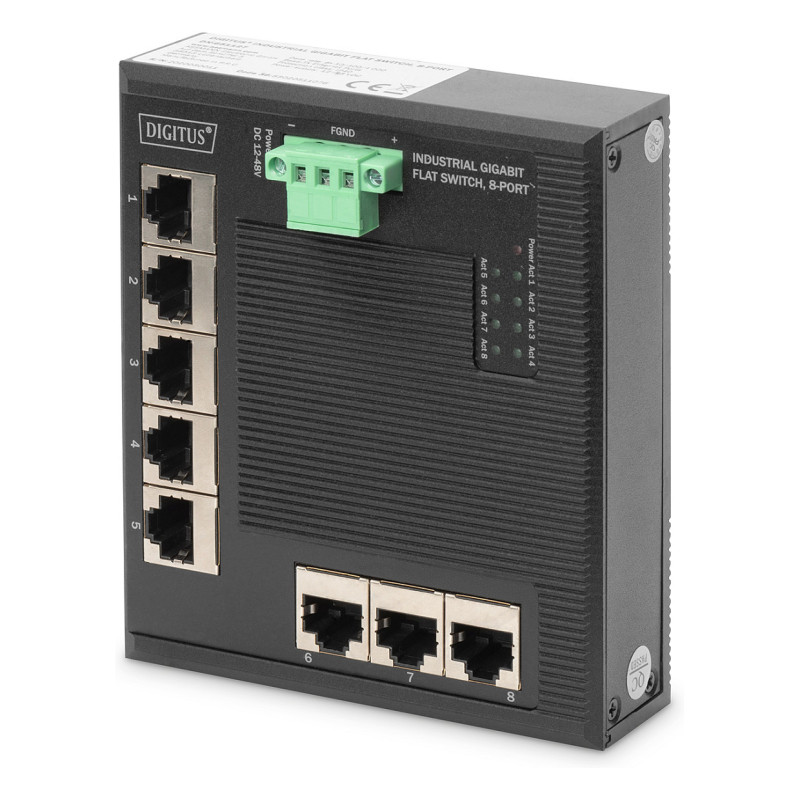

Digitus DN-651127 network switch

Digitus 8 Port Gigabit Ethernet Network Switch, Flat, Industrial, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable

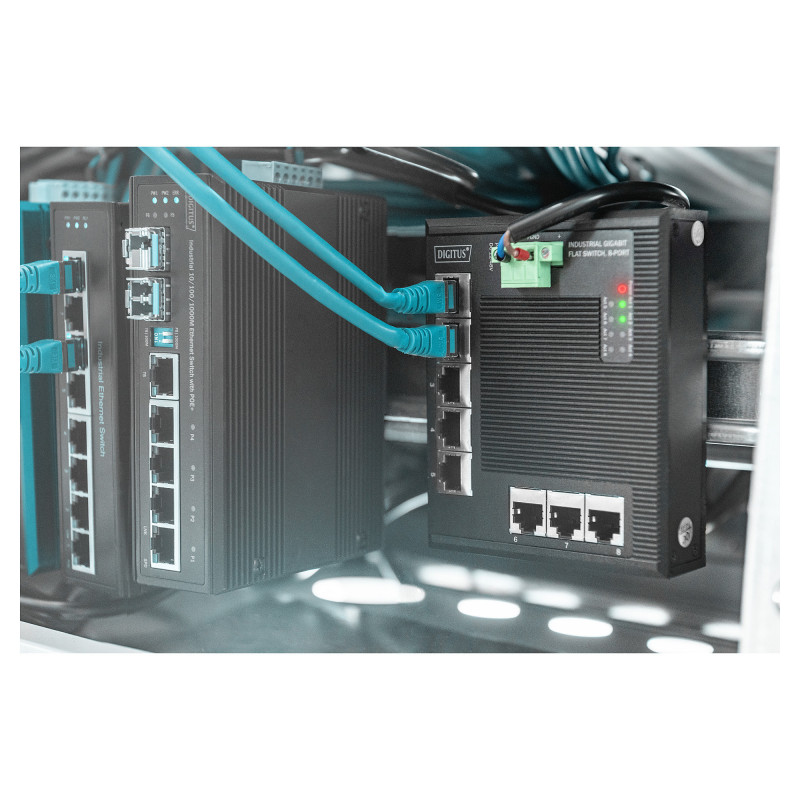

Robust industry solution, high temperature range, space-saving flat case for profile rail mounting

- 8 x 10/100/1000 Base-TX Ethernet ports

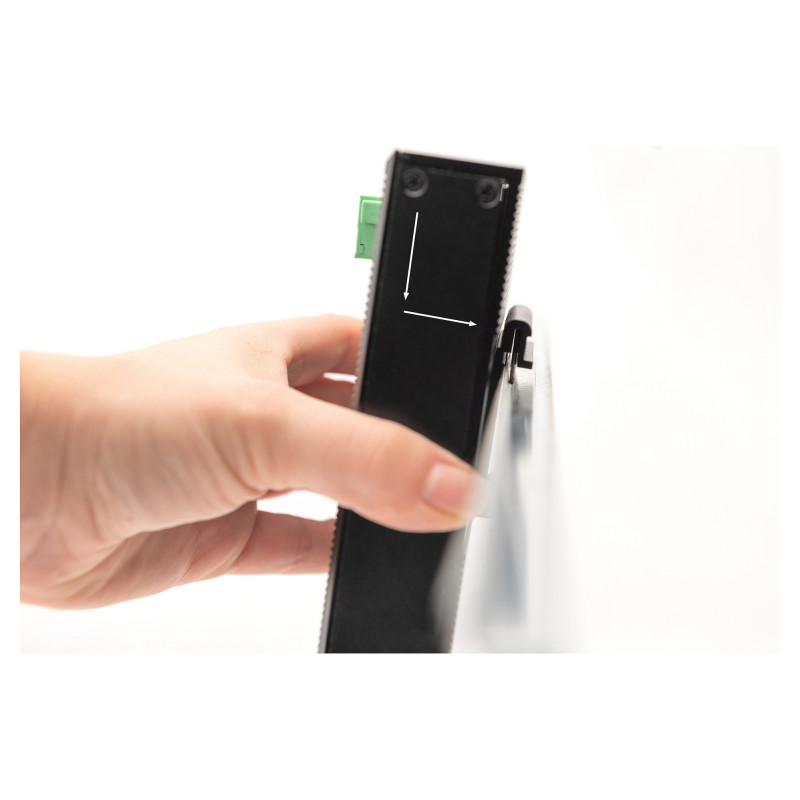

- Suitable for DIN rail (top-hat rail) mounting
- Space-saving, flat housing
- Fanless design
- Store and forward technology for optimized data transfer
- Backplane capacity: 16 Gbps
- MAC address memory: 4K (auto-learning, auto-aging)
- Excellent protection against short circuits
- Lightning and surge protection

The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

MAC address table: 4000 entries
Feature: Store-and-forward

Design

Product colour: Black
Housing material: Metal
LED indicators: Link, Power
International Protection (IP) code: IP40
Feature: Wall mountable

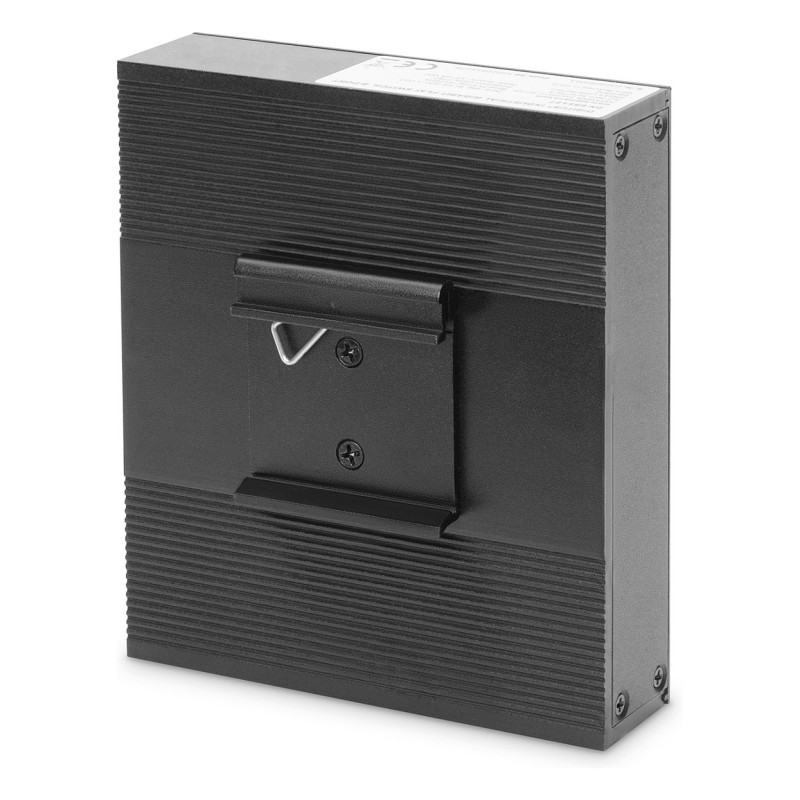

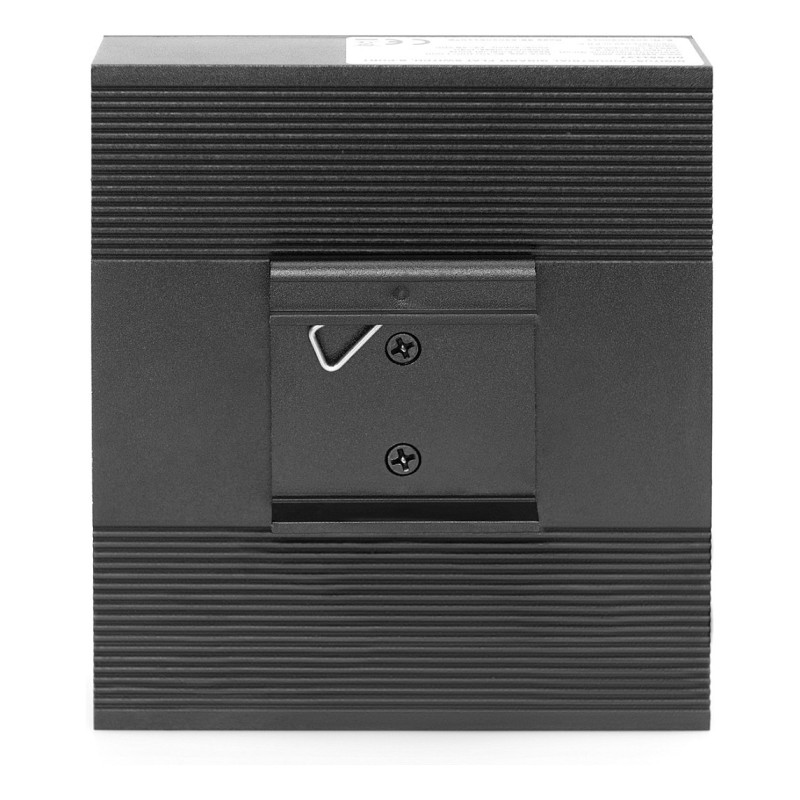

Feature: DIN rail mounting

Performance

Feature: Fanless

Power

DC input voltage: 12 - 48 V

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 135 mm
Depth: 162 mm
Height: 53 mm

Packaging content

Feature: Quick start guide

Packaging data

Package width: 155 mm
Package depth: 215 mm
Package volume: 2332.75 cm³
Package weight: 624 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
