Digitus DN-651126 network switch

Digitus 5 Port Gigabit Ethernet Network Switch Switch, Flat, Industrial, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable, Rack mounting

Robust industry solution, high temperature range, space-saving flat case for profile rail mounting

- 5 x 10/100/1000 Base-TX Ethernet ports

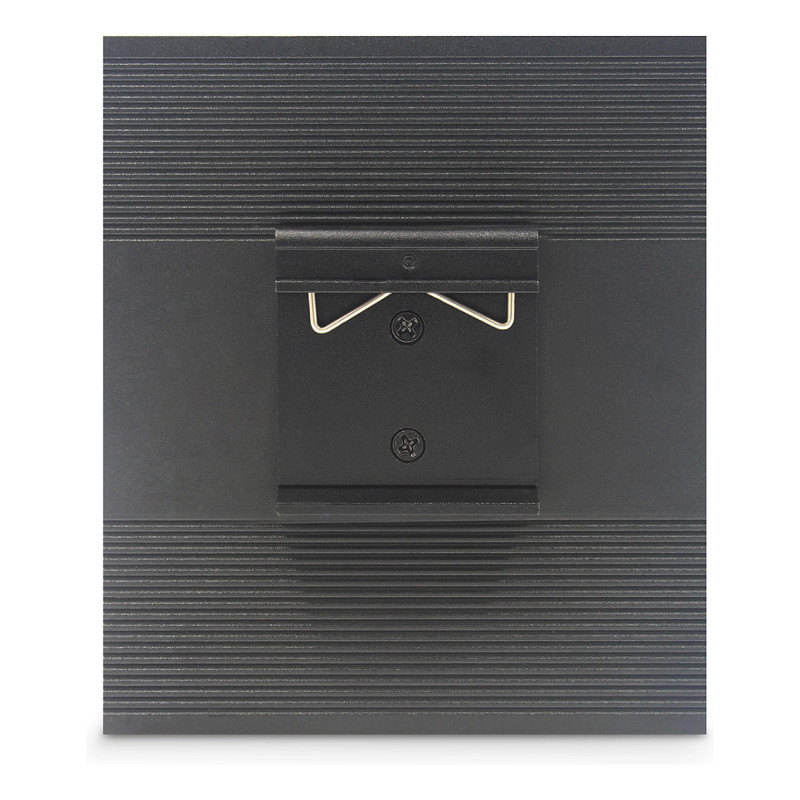

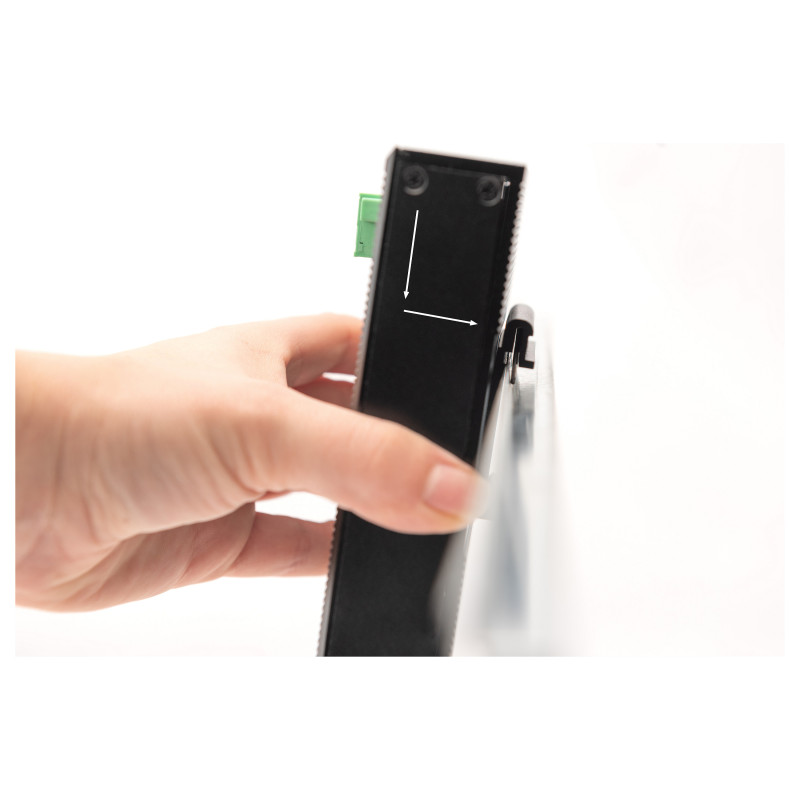

- Suitable for DIN rail (top-hat rail) mounting
- Space-saving, flat housing
- Fanless design
- Store and forward technology for optimized data transfer
- Backplane capacity: 14 Gbps
- MAC address memory: 2K (auto-learning, auto-aging)
- Excellent protection against short circuits
- Lightning and surge protection

The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Copper ethernet cabling technology: 1000BASE-TX
Feature: Half duplex
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Active link detection
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 4000 entries

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Link, Power
International Protection (IP) code: IP40
Feature: Wall mountable
Feature: DIN rail mounting

Power

Feature: Power supply included
DC input voltage: 12 - 48 V
Power consumption (max): 5 W

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 90 mm
Depth: 121 mm
Height: 37 mm

Packaging data

Package width: 120 mm
Package depth: 105 mm
Package volume: 504 cm³
Package weight: 616 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
