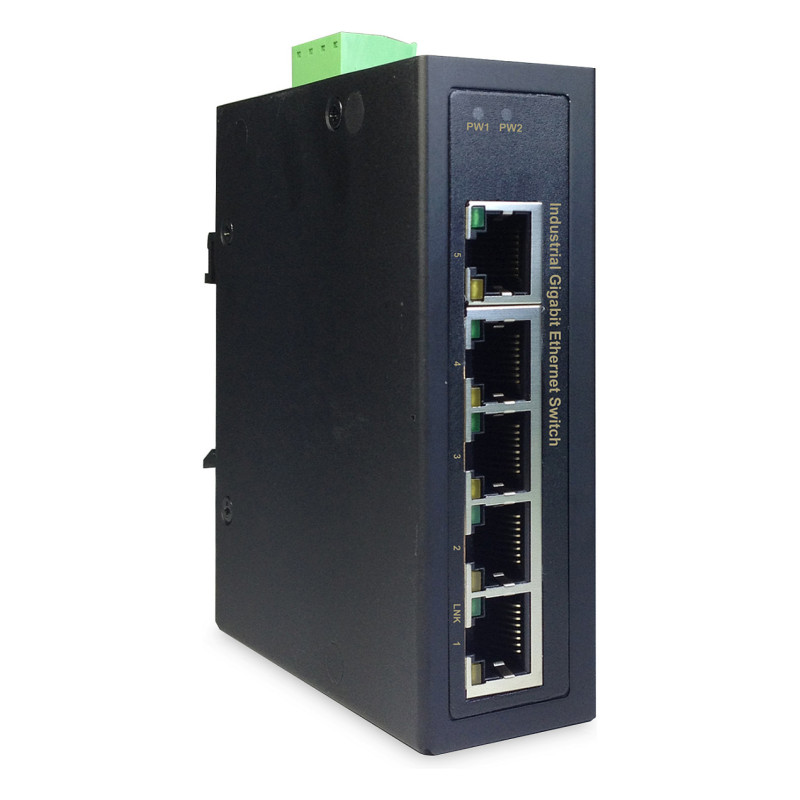

Digitus DN-651107 network switch

Digitus 5 Port Gigabit Ethernet Netzwerk Switch,Industrial, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 18 - 36 V. Wall mountable

Standard / Din Rail mounting dual purpose

- Industrial 5-Port Gigabit Switch
- 5 x 10/100/1000Base-TX Ethernet Ports
- Extended operating temperature range, -40 °C ~ +85 °C

The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward

Security

Feature: MAC address filtering

Design

Product colour: Black
Housing material: Metal
Feature: Wall mountable
Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 500000 h

Power

Feature: Redundant power supply (RPS) support
DC input voltage: 18 - 36 V
Power consumption (typical): 2.76 W
Power protection features: Over voltage, Reverse polarity, Short circuit

Other features

Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Packaging data

Package width: 65 mm
Package depth: 165 mm
Package volume: 2305.88 cm³
Package weight: 462.5 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
