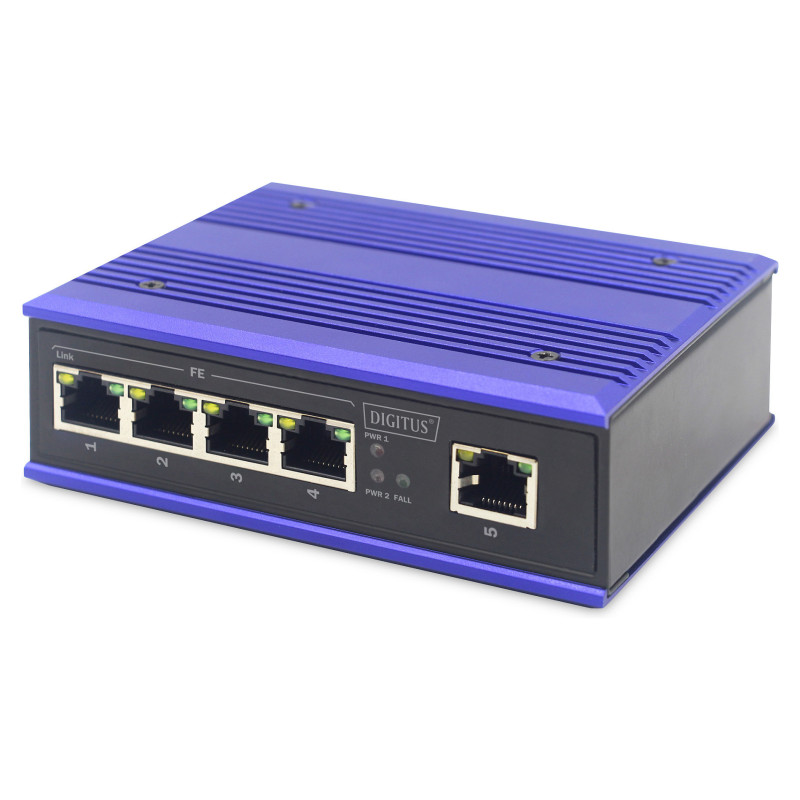

Digitus DN-650105 network switch

Digitus 4 port Fast Ethernet network switch, industrial, unmanaged, 1 RJ45 uplink. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable

Robust and durable industrial solutions with standard and top-hat rail mounting

- Industrial 5-port Fast Ethernet switch
- 5 x 10/100Base-TX Ethernet ports
- DIN rail mountable

The DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 80°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security monitoring. Thanks to the simple plug-and-play system, the Industrial Fast Ethernet Switch can be quickly integrated into the respective environment. Thanks to its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for industrial environments.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100 Mbit/s
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 1 Gbit/s
MAC address table: 2048 entries
Feature: Store-and-forward

Design

Product colour: Black, Blue
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable
Feature: DIN rail mounting
Number of fans: 0 fan(s)

Performance

Mean time between failures (MTBF): 300000 h

Power

Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 48 V
Power protection features: Overload, Short circuit

Other features

Ethernet interface type: Fast Ethernet

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 118 mm
Depth: 86 mm
Height: 39 mm
Weight: 360 g

Packaging content

Feature: Quick start guide
Feature: User guide

Packaging data

Package width: 162 mm
Package depth: 135 mm
Package height: 53 mm
Package volume: 1159.11 cm³
Package weight: 483.333 g

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
