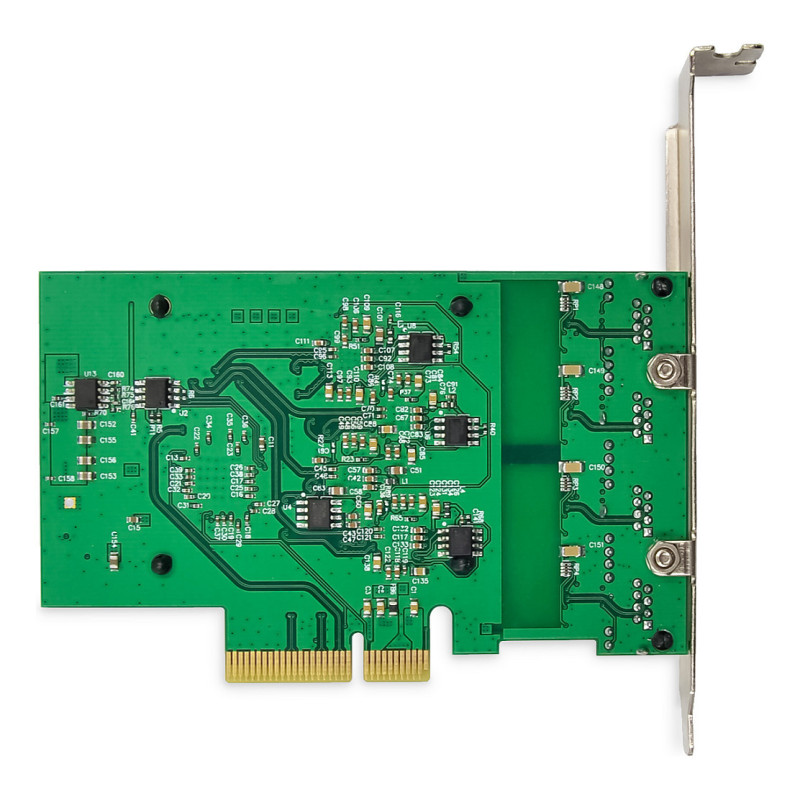

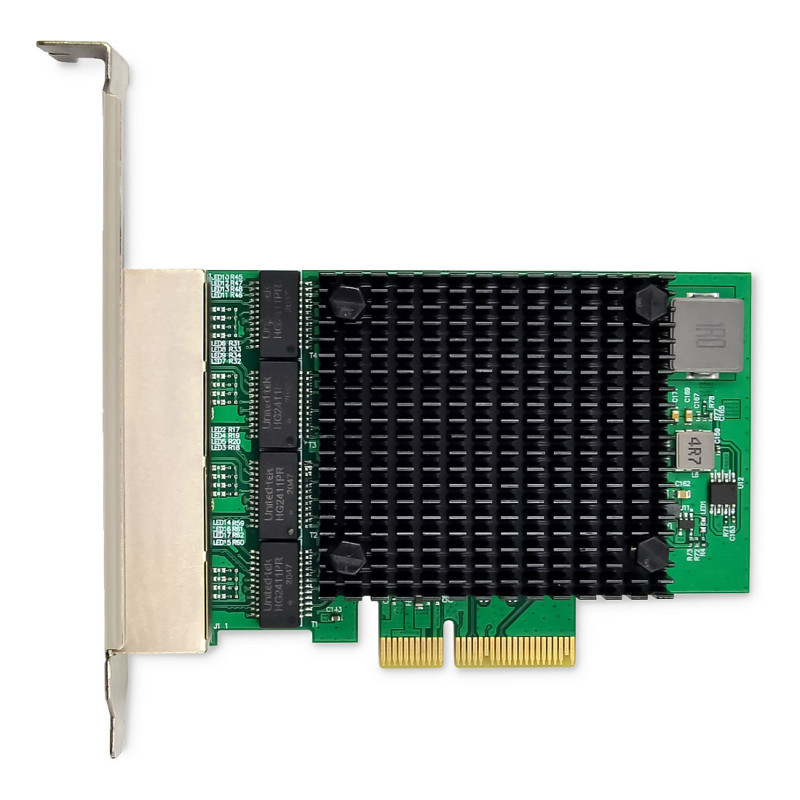

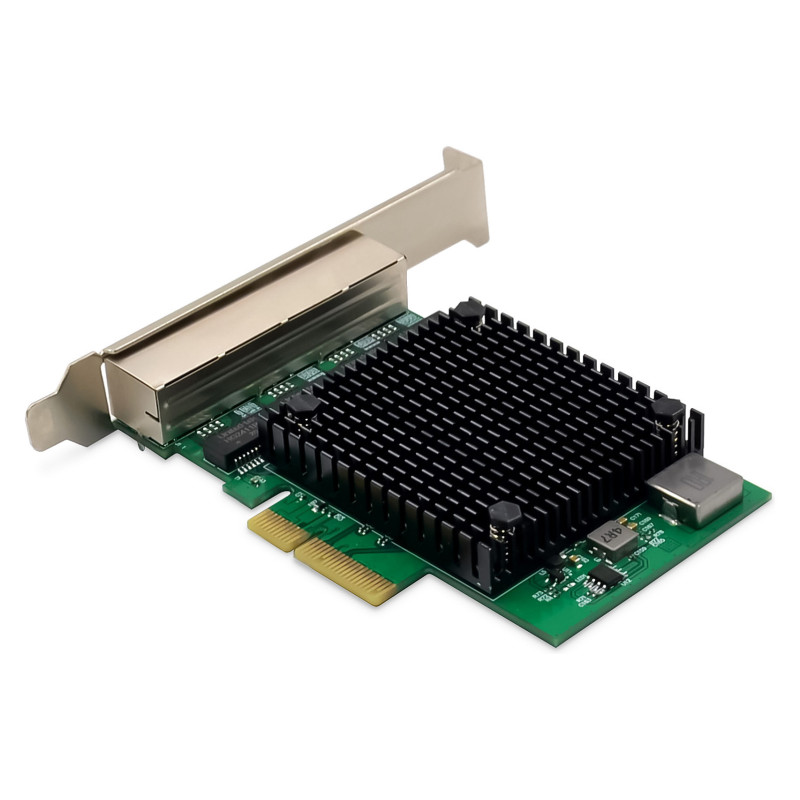

Digitus DN-10136 network card

Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction

The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 4
PCI version: 2.1

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 16000

Design

Component for: PC/Server
Product colour: Black, Green
Feature: Internal
Chipset: Realtek RTL8125B
LED indicators: Yes
Country of origin: China

Power

Output voltage: 5 - 12 V

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported: Yes
Other operating systems supported: DOS
Server operating systems supported: Windows Server 2008, Windows Server 2012

Weight & dimensions

Width: 70 mm
Depth: 20 mm
Height: 108 mm
Weight: 100 g

Packaging data

Package width: 155 mm
Package depth: 30 mm
Package height: 220 mm
Package weight: 243.5 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual

Logistics data

UK Trade Tariff code: 84718000

Other features

Package volume: 1023 cm³
