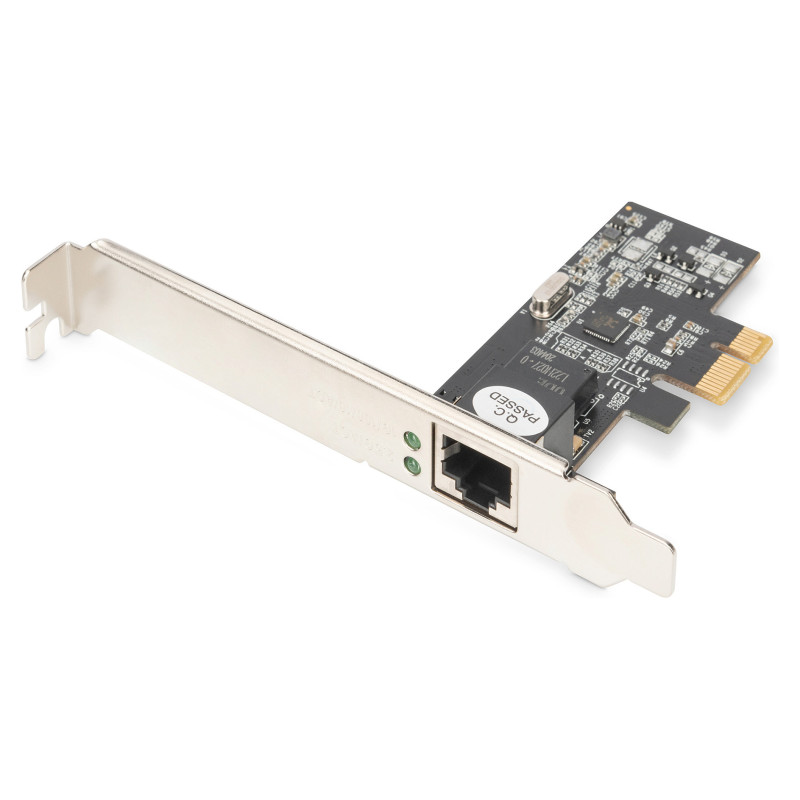

Digitus DN-10135 network card

Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed). Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black

Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot

- Gigabit data transmission with up to 2500 Mbps (2.5G)
- Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
- Ideal for streaming and gaming applications with high data rates
- Supports IEEE802.3x full-duplex flow control
- Supports IEEE802.1q VLAN tagging
- Supports Wake-on-LAN
- Additional low-profile slot bracket for use in narrow housings

This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.1
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready

Design

Component for: Server/workstation
Product colour: Black
Feature: Internal
Chipset: Realtek RTL8125B
Feature: Plug and Play
LED indicators: Yes
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Operating relative humidity (H-H): 20 - 80%

Weight & dimensions

Width: 120 mm
Depth: 98 mm
Height: 22 mm
Weight: 35.2 g

Packaging content

Feature: Mounting brackets included
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85176990
