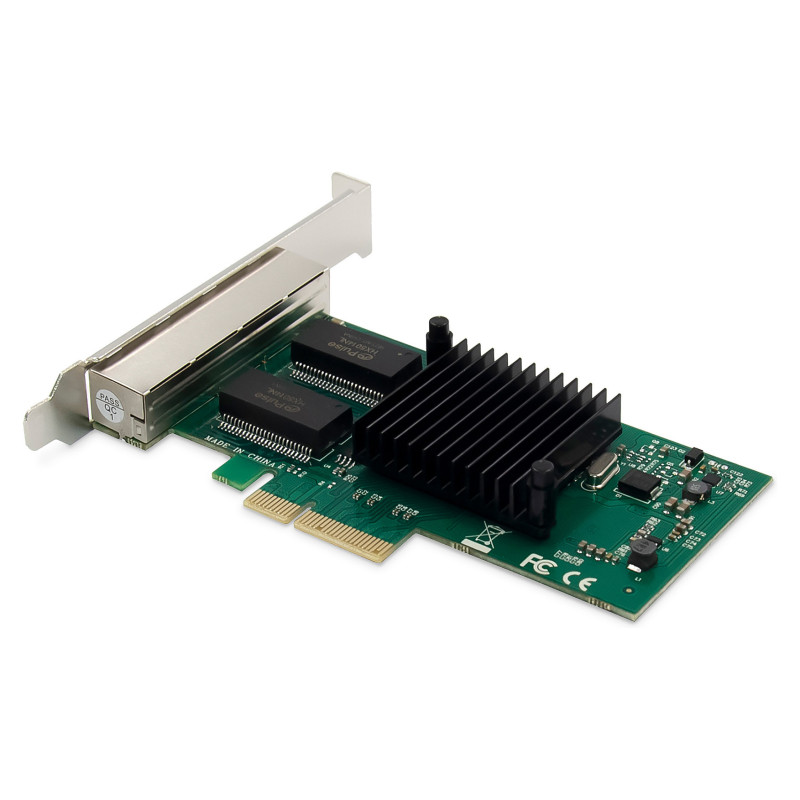

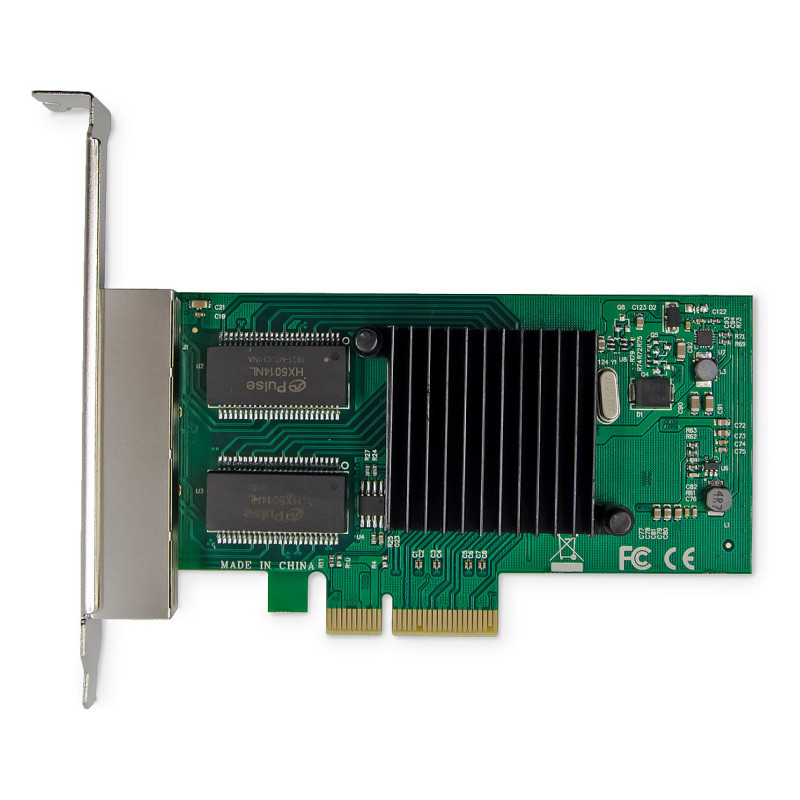

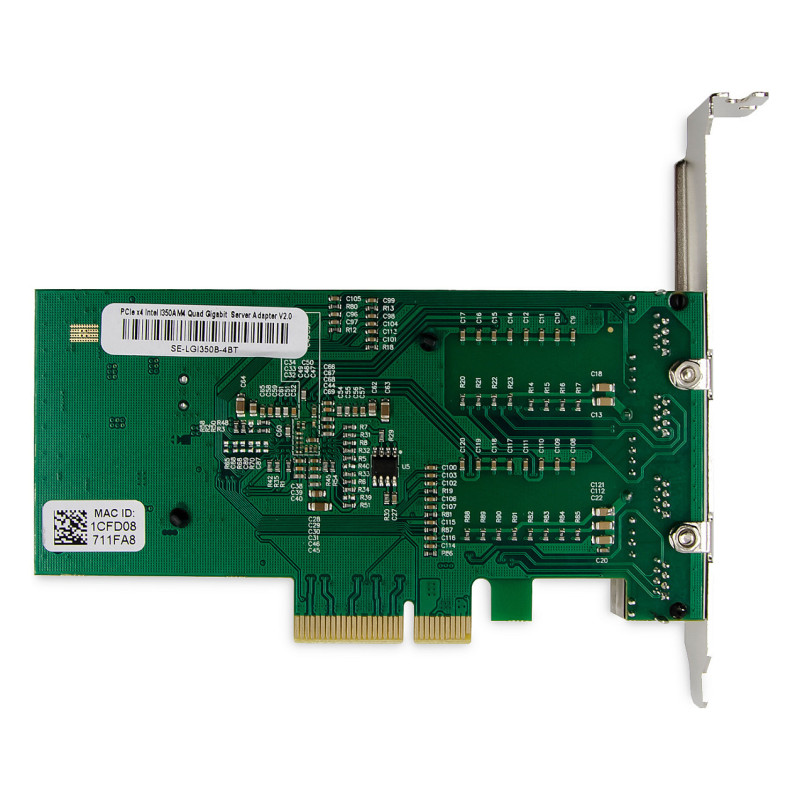

Digitus DN-10114 network card

Digitus 4 port Gigabit Ethernet network card, RJ45, PCI Express, Intel I350. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. Product colour: Black, Green

The DN-10114 four port network card is the perfect solution for those who require a reliable and high-performance Gigabit Ethernet connection. With innovative power management features such as Energy Efficient Ethernet (EEE) and DMA Coalescing, it is particularly efficient and saves energy.

- Halogen-free quad-port Gigabit Ethernet adapters with 4 RJ 45 Ports
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
- Scalable iSCSI performance delivering cost-effective SAN connectivity
- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Controller: Intel NHI350AM4
- Jumbo Frame Support:Up to 9.5 KB

The DN-10114 four port network card is the perfect solution for those who require a reliable and high-performance Gigabit Ethernet connection. With innovative power management features such as Energy Efficient Ethernet (EEE) and DMA Coalescing, it is particularly efficient and saves energy. Through flexible I/O virtualization, the DN-10114 enables port partitioning and quality of service (QoS) with up to 32 virtual ports. This provides great flexibility and allows for optimal control of the network connection. The DN-10114 also offers scalable iSCSI performance, ensuring cost-effective SAN connectivity. The high-performing bridgeless design supports PCI Express Gen 2.1 5GT/s and provides reliable Gigabit Ethernet technology from Intel Corporation. The network card is powered by the reliable Intel NHI350AM4 controller and provides a transmission rate of 10/100/1000 Mbps per port. It supports various network standards including 10BASE-T Cat3/4/5/5E/6, 100BASE-Tx Cat5/5E/6, and 1000BASE-T Cat5E/6. Jumbo frame support up to 9.5 KB ensures efficient data transfer. With an operating temperature range of 0 °C to 55 °C (32 °F to 131 °F), the DN-10114 can be used in many different environments. It features LED indicators for different transmission speeds and is powered by a PCI Express power supply (+12V±8% / +3.3V±9%). The DN-10114 is compatible with a variety of operating systems including Windows Server 2003 / 2008 /2008 R2 / 2012 /2012 R2 /2016 R2, Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later, Linux SLES 10 / 11 or later. If you require a reliable, efficient, and high-performance network connection, the DN-10114 4 port network card is the perfect solution for you.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 4
PCI version: 2.1

Network

Maximum data transfer rate: 5000 Mbit/s
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Jumbo frames support
Jumbo frames: 9500

Design

Component for: PC/Server
Product colour: Black, Green
Feature: Internal
Chipset: Intel® I350
LED indicators: Yes
Country of origin: China

Power

Output voltage: 5 - 12 V

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 0 - 55 °C

Sustainability

Doesn't contain: Halogen

Weight & dimensions

Width: 70 mm
Depth: 20 mm
Height: 130 mm
Weight: 80 g

Packaging data

Package width: 155 mm
Package depth: 30 mm
Package height: 220 mm
Package weight: 232.5 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual

Logistics data

UK Trade Tariff code: 84718000

Other features

Package volume: 1023 cm³
