Diagnostic Tool - Ancel PB500 Circuit Tester 12-24V, 7 Modes, TFT Screen
Product reference:
14-6978281190052
Ancel PB500 circuit tester is designed for automotive diagnostics, operating in the 12-24 volt voltage range. It has seven diagnostic modes, including voltage measurement, resistance testing and injector circuit checks, and the results are displayed on a color TFT screen in real time.
Diagnostic Tool - Ancel PB500 Circuit Tester 12-24V, 7 Modes, TFT Screen
Product reference:
14-6978281190052
Ancel PB500 circuit tester is designed for automotive diagnostics, operating in the 12-24 volt voltage range. It has seven diagnostic modes, including voltage measurement, resistance testing and injector circuit checks, and the results are displayed on a color TFT screen in real time.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

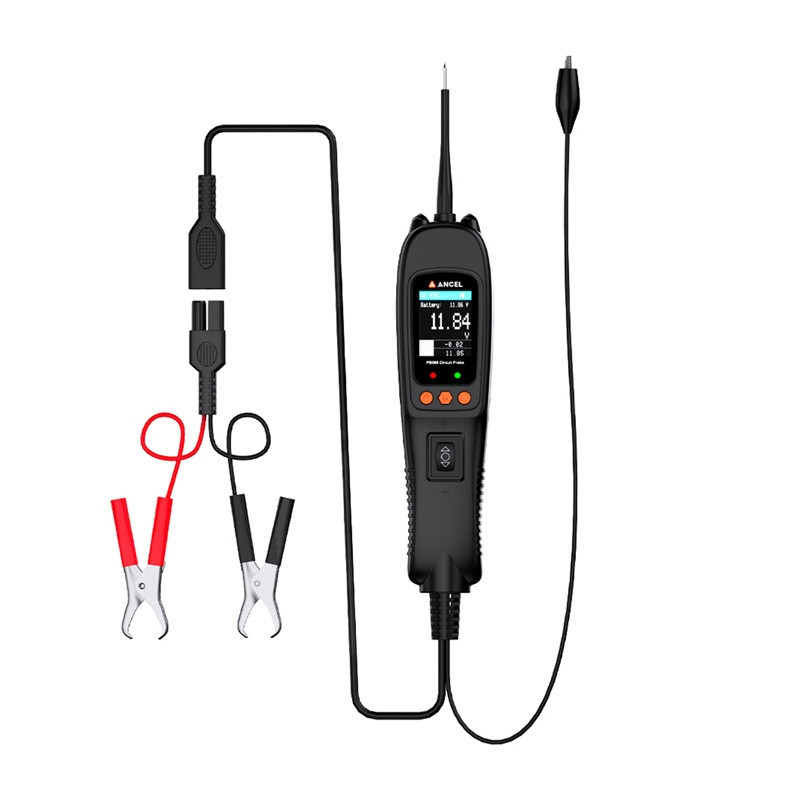

Ancel PB500 circuit tester
Ancel PB500 circuit tester is designed for diagnosing electrical problems in cars, operating in the 12-24 volt voltage range. It has 7 diagnostic modes, including voltage measurement, resistance testing and injector circuit tests, displayed on a color TFT screen in real time.
- Circuit tester for 12-24V applications, suitable for cars, trucks, motorcycles and boats.
- Offers 7 diagnostic modes including voltage measurement, resistance, diode test, frequency, duty cycle and injector circuit tests.
- Real-time parameter analysis with color TFT display for fast fault localization.
- Built-in overload protection and LED light at the end of the probe for safe and convenient use in dark places.
Features | |
|---|---|
| Product type | Circuit tester |
| Brand | Ancel |
| Model | PB500 |
Specifications | |
| Operating voltage | 12 - 24 V |
| Screen | TFT color display (160×128 dpi) |
| Operating temperature | -10°C to 60°C |
| Dimensions | 200 × 52 × 39 mm |
| Weight | 0.48 kg |
| Supply voltage range | 8 V DC - 30 V DC |
| AC/DC voltage measurement | -110V to +110V |
| Frequency measurement | 0Hz - 1MHz |
| Duty cycle | 0.0% - 100.0% |
| Nozzle test | Voltage 0-180 V, time 0-25 ms |
| Resistance measurement | 0 - 1 MΩ |
| Diode test | Germanium and silicon diodes |
| Rated current | 1A - 8A |
Included accessories | |
| |
Safety warning | |
| Use the product for its intended purpose to avoid hazards. | |
| Height | 100mm |
| Length | 250mm |
| Weight | 720g |
| Width | 150mm |
