Devolo Magic 2 LAN Triple Starter Kit

Devolo Magic 2 LAN triple Starter Kit. Maximum data transfer rate: 2400 Mbit/s, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, Power plug: Type F. Power consumption (typical): 5 W, Power consumption (standby): 0.9 W, AC input voltage: 196 - 250 V. Product colour: White, LED indicators: PLC, Certification: CE. Width: 143 mm, Depth: 72 mm, Height: 41 mm. Package width: 188 mm, Package depth: 231 mm, Package height: 92 mm

Performance

Maximum data transfer rate: 2400 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports: 3
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Power plug: Type F
Feature: Built-in power socket
Modulation: 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK
Security algorithms: 128-bit AES
Maximum operating distance: 500 m
Damping filter: 2 - 80 MHz
Filter characteristics: -22 - -45 dB
Feature: Plug and Play

Power

Power consumption (typical): 5 W
Power consumption (standby): 0.9 W
AC input voltage: 196 - 250 V
AC input frequency: 50 Hz
Current: 16 A

Design

LED indicators: PLC
Product colour: White
Certification: CE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 143 mm
Depth: 72 mm
Height: 41 mm

Packaging data

Package width: 188 mm
Package depth: 231 mm
Package height: 92 mm
Package weight: 810 g
Package type: Box

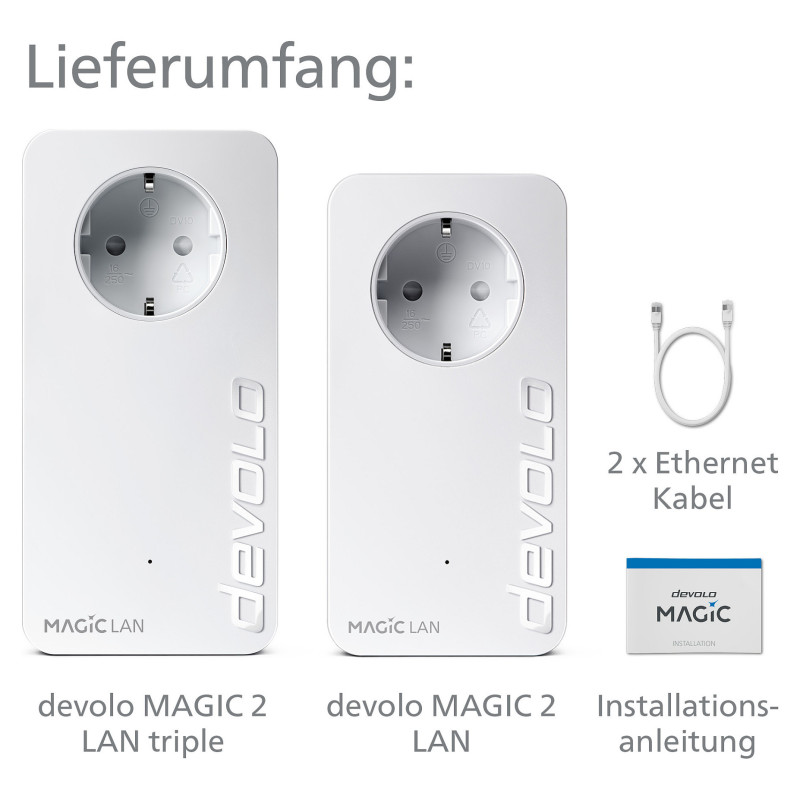

Packaging content

Quantity per pack: 2 pc(s)
Feature: Quick installation guide
Feature: Manual
Cables included: LAN (RJ-45)
