DeLOCK 95277 interface cards / adapter

DeLOCK 95277. Host interface: Mini PCI Express, Output interface: Parallel, RS-232. Product colour: Green, Country of origin: China. Connector 1 gender: Male, Connector 2 gender: Female, Connector 1 form factor: Straight. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Server operating systems supported: Windows Server 2022. Width: 30 mm, Depth: 51 mm, Height: 10 mm

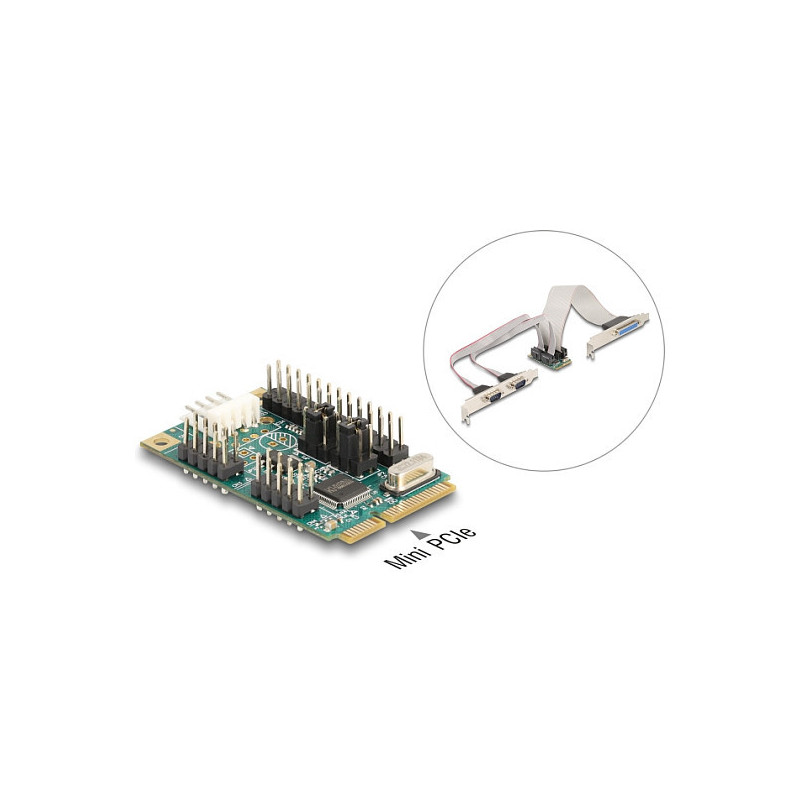

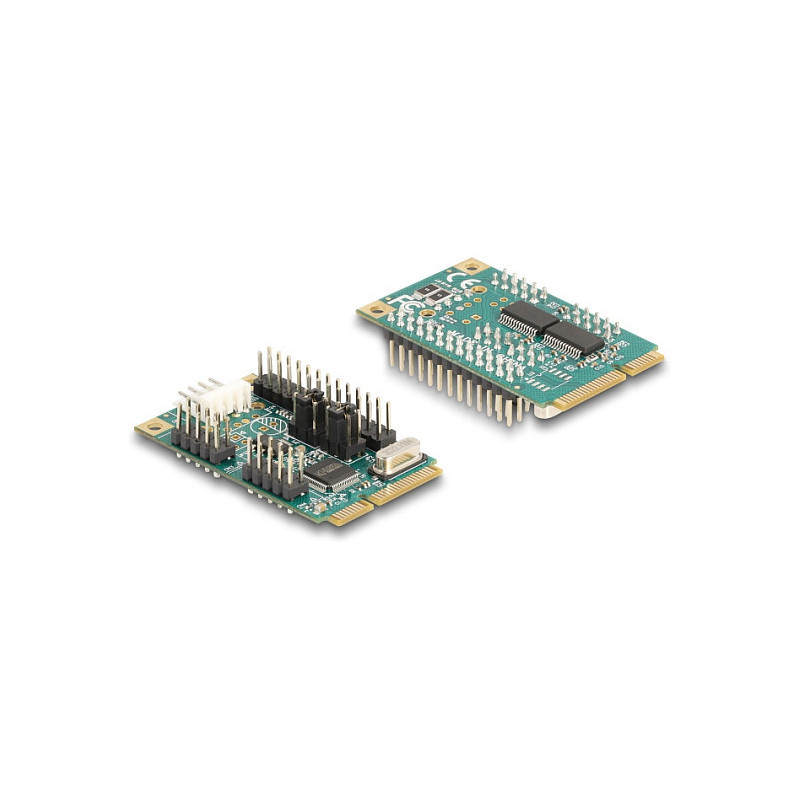

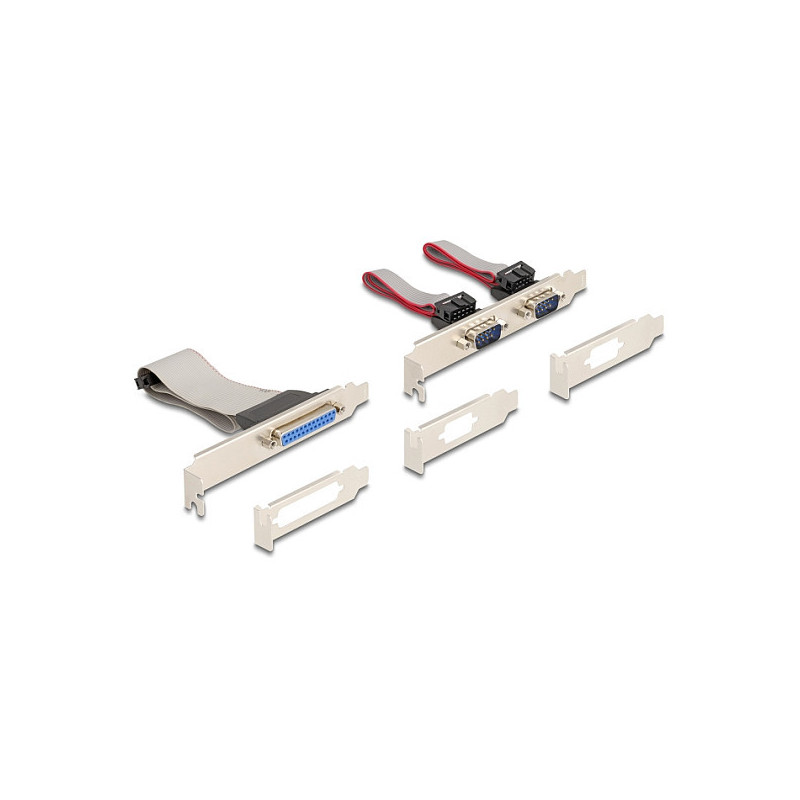

The Mini PCIe module by Delock expands your system by two serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V.

Ports & interfaces

Host interface: Mini PCI Express
Output interface: Parallel, RS-232

Design

Feature: Internal
Product colour: Green
Country of origin: China

Features

Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 2
Parity bit: Even, Mark, No, Odd, Space

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Server operating systems supported: Windows Server 2022

Weight & dimensions

Width: 30 mm
Depth: 51 mm
Height: 10 mm

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package type: Box
