DeLOCK 95271 network card

DeLOCK Mini PCIe I/O PCIe half size 1 x RJ45 2.5 Gigabit LAN. Internal. Connectivity technology: Wired, Host interface: Mini PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s

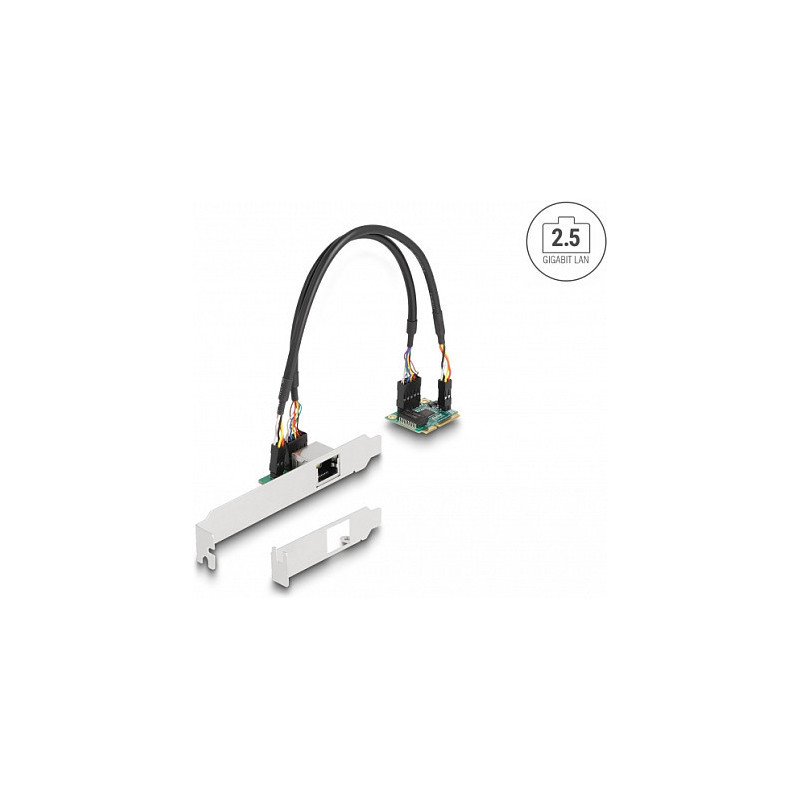

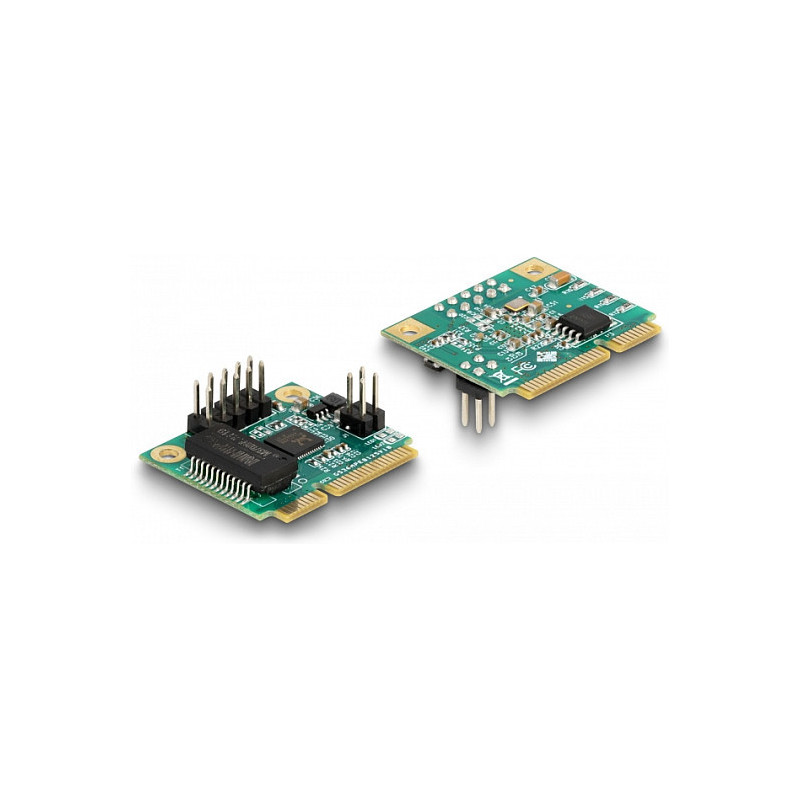

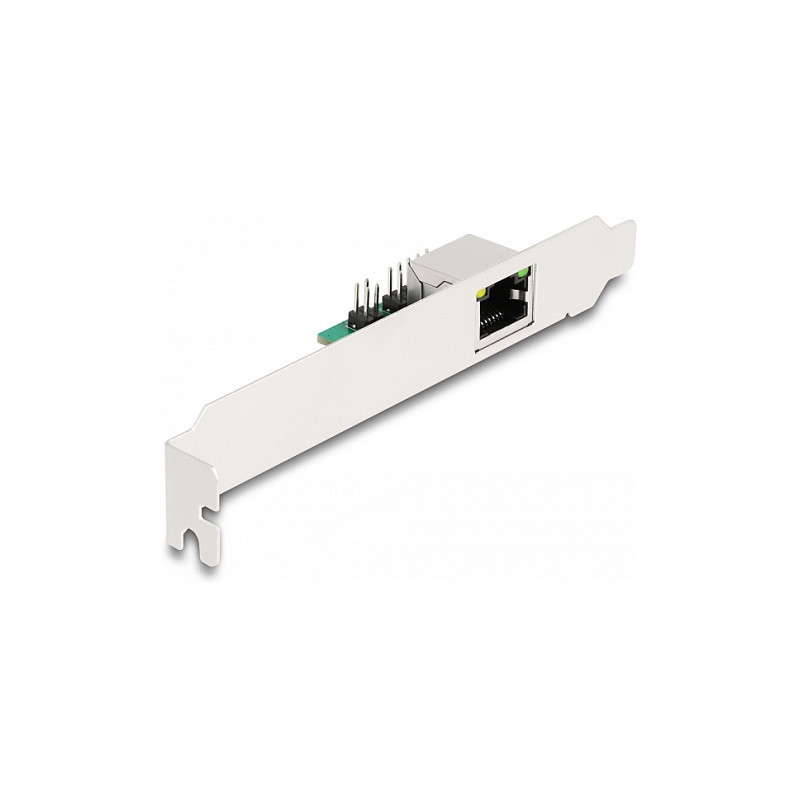

This Mini PCIe module by Delock expands a system by one 2.5 Gigabit LAN interface, which can be lead out via the slot bracket.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Ports & interfaces

Connectivity technology: Wired
Host interface: Mini PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.1

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Component for: PC
Feature: Internal
Chipset: Realtek RTL8125B
LED indicators: Activity, Link

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 8.1

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual
