DeLOCK 90777 interface cards / adapter

DeLOCK Express x16 Card to 4 x internal SFF-8643 NVMe - Bifurcation - Low Profile Form Factor. Host interface: PCIe, Output interface: SFF-8643. Product colour: Green, White, Purpose: PC, Country of origin: China. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Linux operating systems supported: Linux Kernel 6.2. Quantity per pack: 1 pc(s), Package type: Box

Description

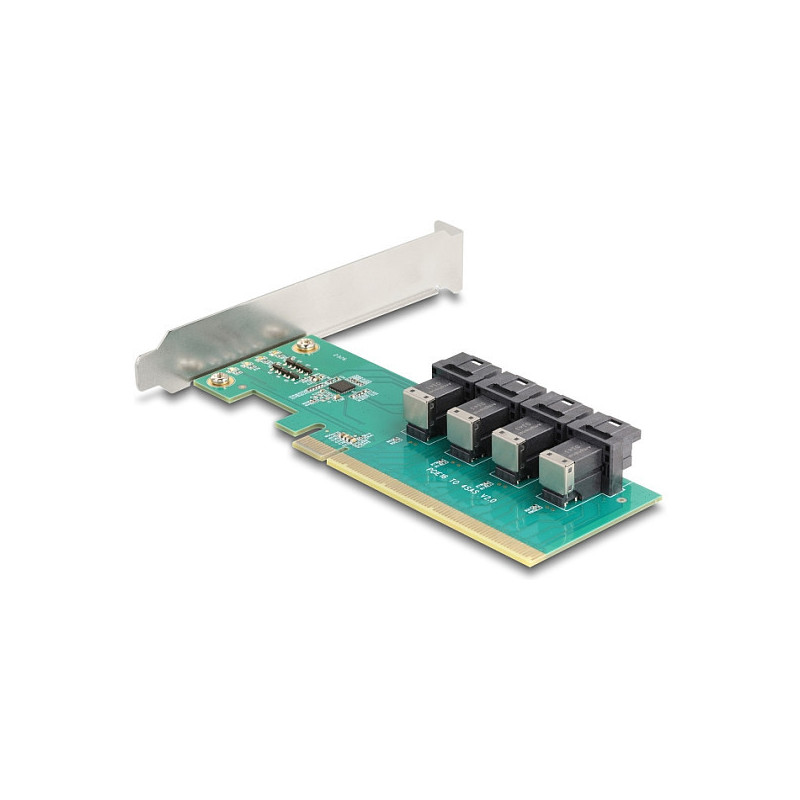

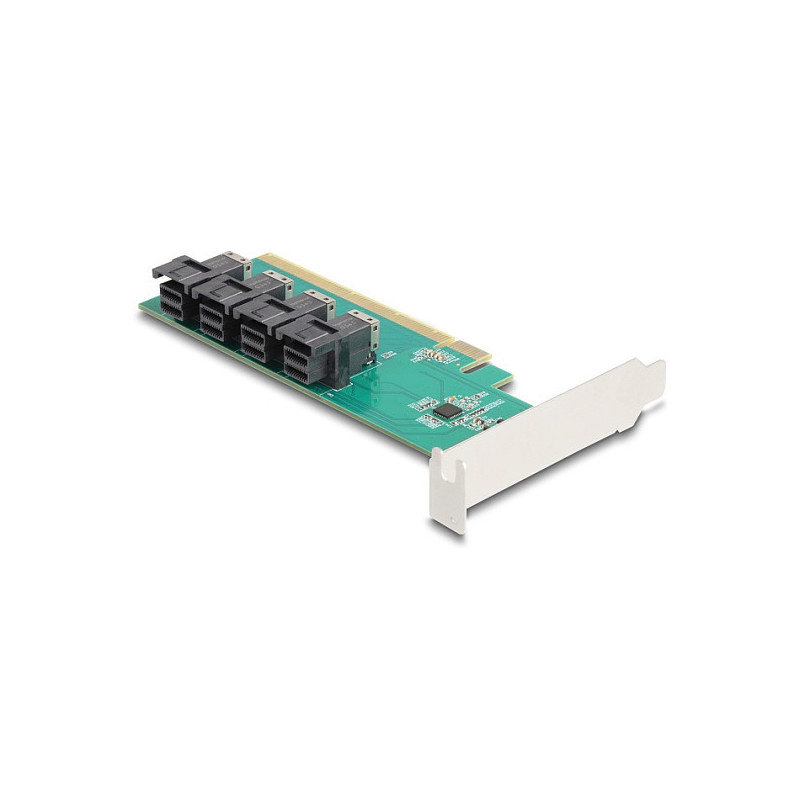

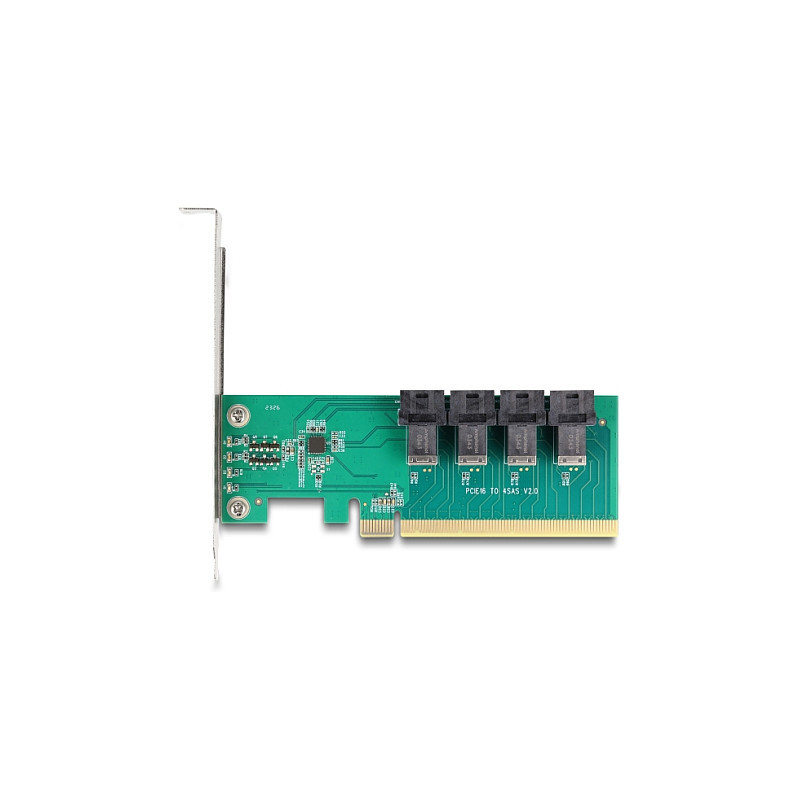

This PCI Express card by Delock expands the PC by four SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first SFF-8643 port of the card can be used.

Ports & interfaces

Host interface: PCIe
Output interface: SFF-8643
Feature: NVMe
PCI Express slots quantity: 1

Design

Feature: Internal
Product colour: Green, White
Purpose: PC
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Linux operating systems supported: Linux Kernel 6.2

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package type: Box
