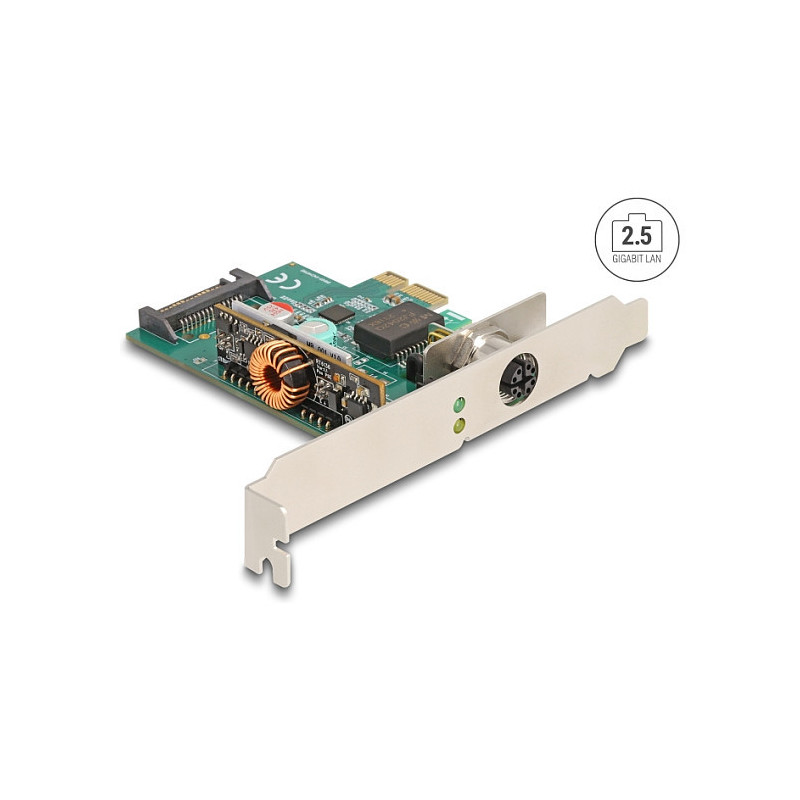

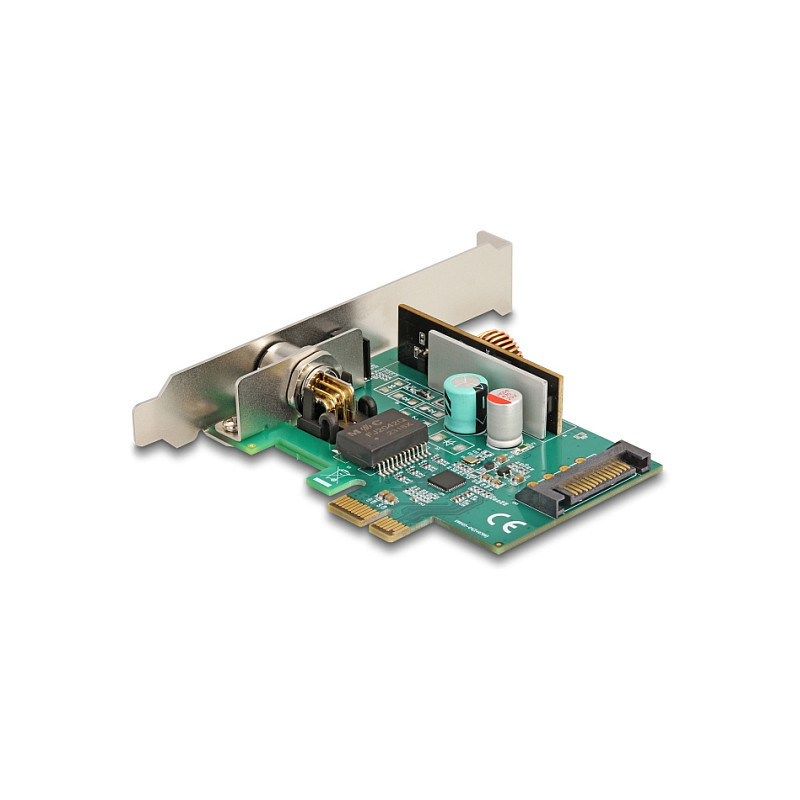

DeLOCK 90760 network card

DeLOCK 90760. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Green, Stainless steel

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps. This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

PoE support
The M12 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
PCI version: 2.1

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 16000

Design

Component for: Server
Product colour: Green, Stainless steel
Feature: Internal
LED indicators: Activity, Link
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11

Packaging content

Feature: Manual
