DeLOCK 90492 interface cards / adapter

DeLOCK PCI Express x4 Card to 1 x external USB Type-C female + 2 x external USB Type-A female SuperSpeed USB 10 Gbps + 1 x internal USB 5 Gbps Pin Header. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64. Package type: Box

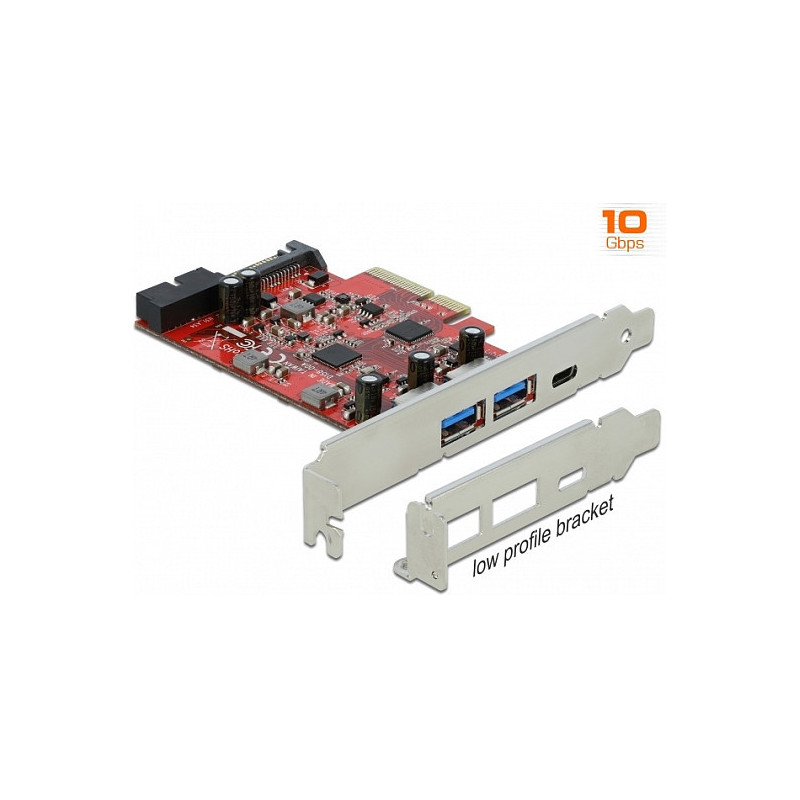

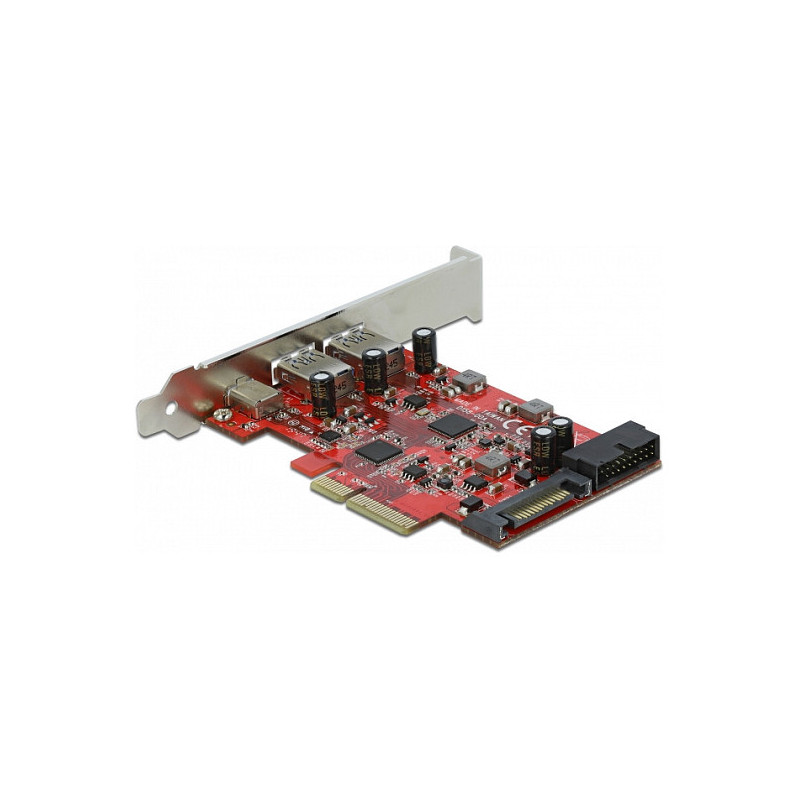

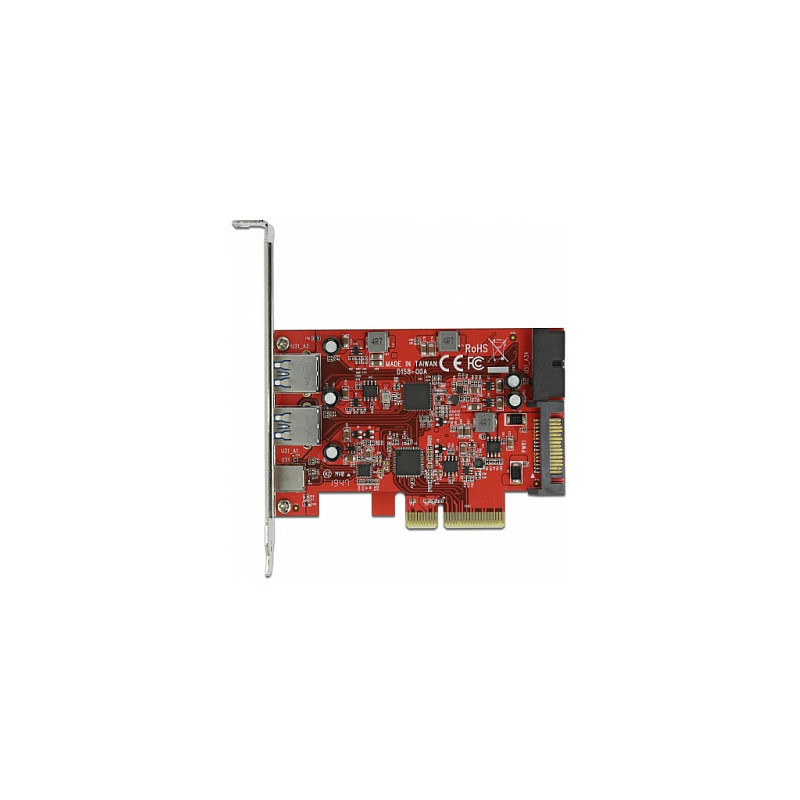

This PCI Express card by Delock expands the PC by three external USB 3.2 ports as well as one internal pin header. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Data transfer rate 5 Gbps internal and 10 Gbps external
The card allows a data transfer rate of 10 Gbps on the external ports, as well as 5 Gbps on the internal pin header.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Design

Feature: Internal

Features

Data transfer rate (max): 10 Gbit/s
Feature: UASP support

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Packaging data

Feature: Mounting brackets included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
