DeLOCK 90486 interface cards / adapter

DeLOCK PCI Express x16 Card to 1 x M.2 Key B + 1 x NVMe M.2 Key M + 1 x mSATA - Low Profile Form Factor. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Low-profile. Country of origin: China. Windows operating systems supported: Windows 10, Windows 8.1. Cables included: SATA, Package type: Box

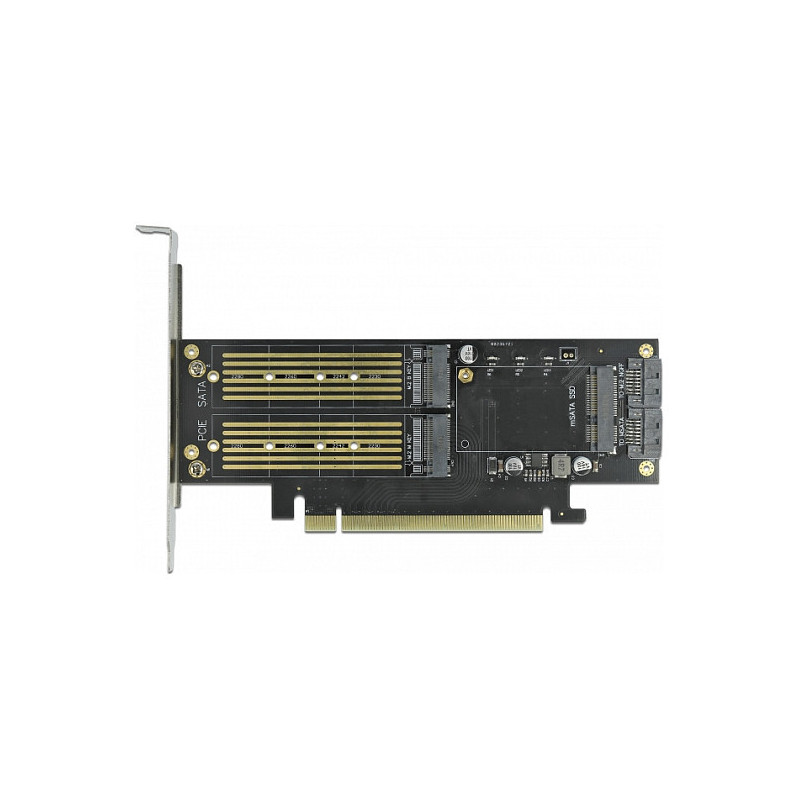

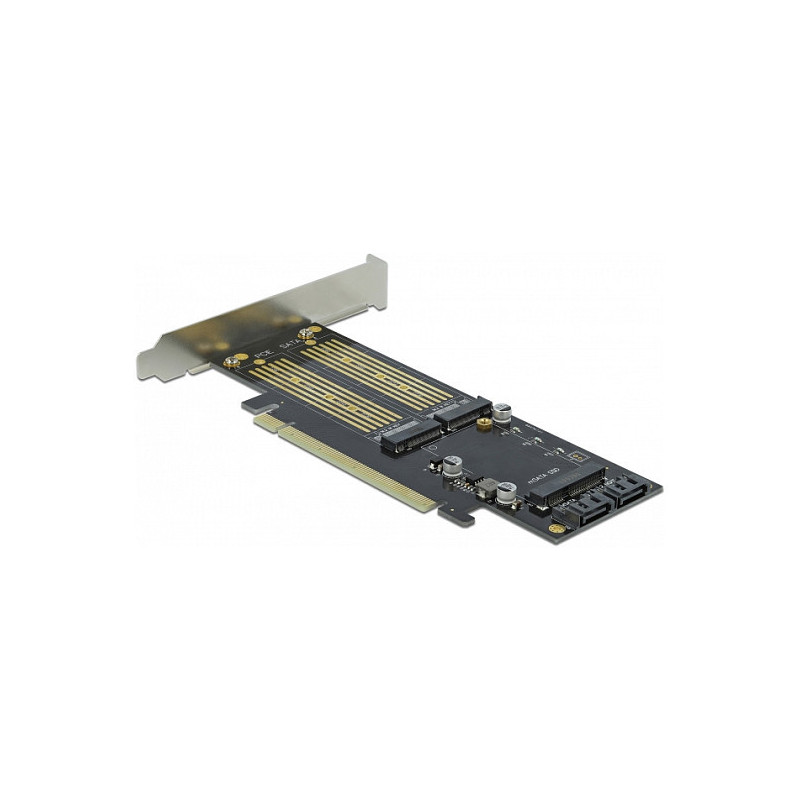

This PCI Express card by Delock expands the PC by two M.2 slots as well as an mSATA slot. One M.2 SATA module can be connected in format 2280, 2260, 2242, 2230 with this card and connected via SATA cable to the motherboard. Furthermore, one M.2 NVMe / PCIe module in format 2280, 2260, 2242, 2230 can be connected. Additionally, one mSATA memory can be connected via SATA cable to the motherboard. All slots can be used separate or at the same time.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe
SATA revision: 3.0
Internal mSATA ports quantity: 1
Number of M.2 (M) slots: 1
Number of M.2 (B) slots: 1

Design

Feature: Internal
LED indicators: Yes
Feature: Hot-swap
Country of origin: China

Features

Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: Native Command Queuing (NCQ)

System requirements

Windows operating systems supported: Windows 10, Windows 8.1
Linux operating systems supported: Yes

Packaging data

Quantity: 1

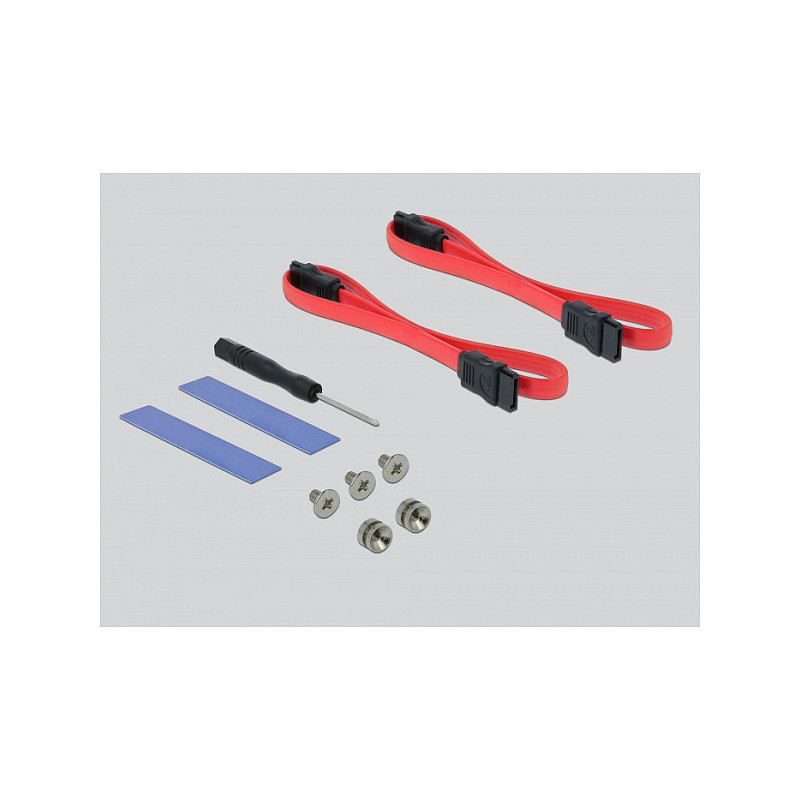

Cables included: SATA
Feature: Manual
Package type: Box
