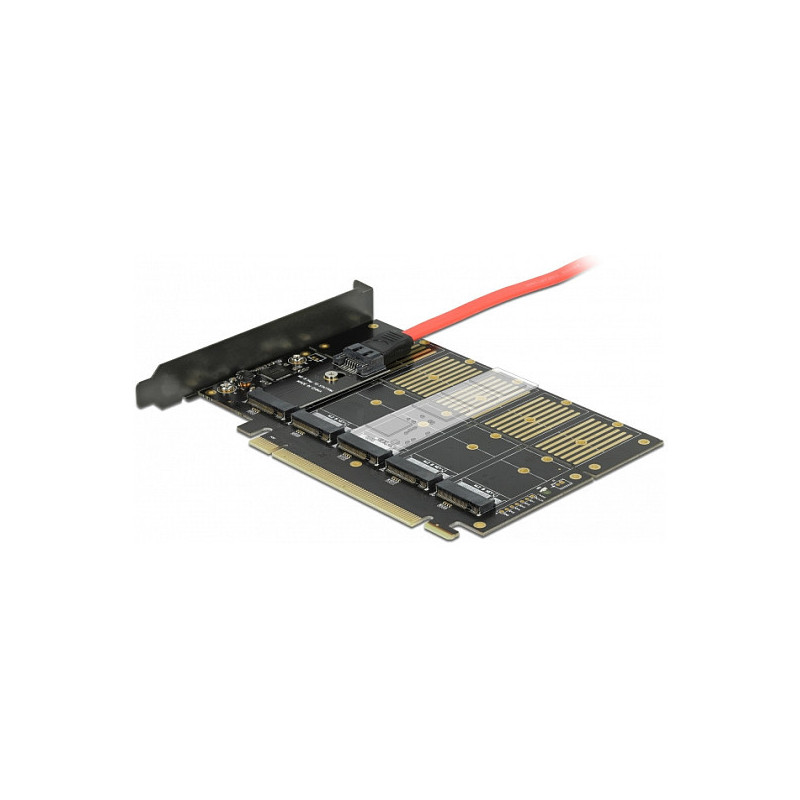

DeLOCK 90435 interface cards / adapter

DeLOCK PCI Express x16 Card to 5 x internal M.2 Key B / SATA. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 3.0. Maximum cable length: 0.5 m, Country of origin: China. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Cables included: SATA, Package type: Box

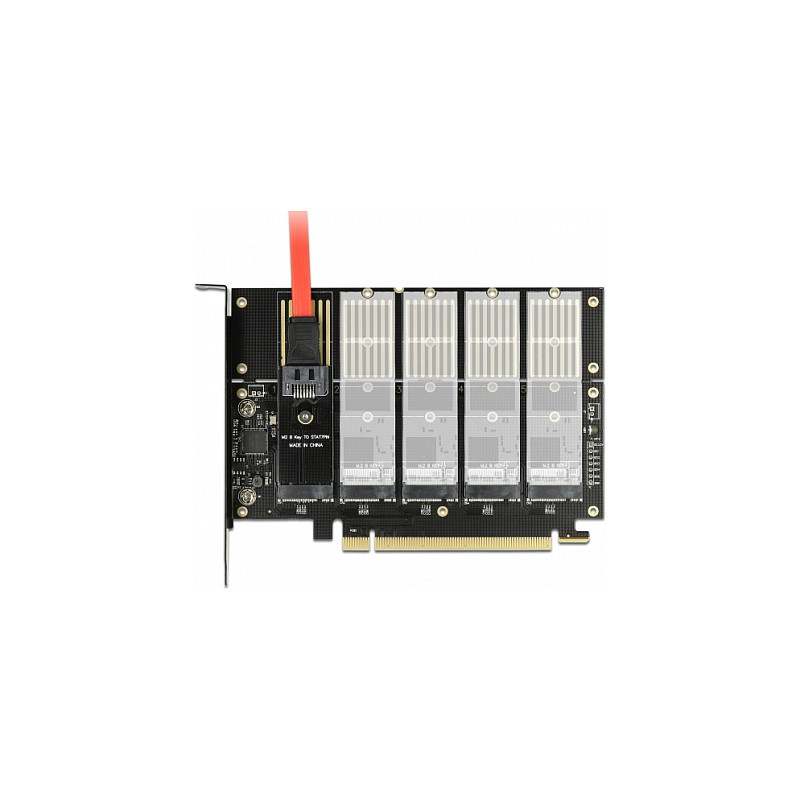

This PCI Express card by Delock expands the PC by five M.2 slots. Up to five M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card.

SATA devices
Furthermore it is possible to connect up to five SATA devices to the card. Therefor the scope of delivery includes adapters and SATA cables. A combination of SATA devices and M.2 SSDs is also possible.

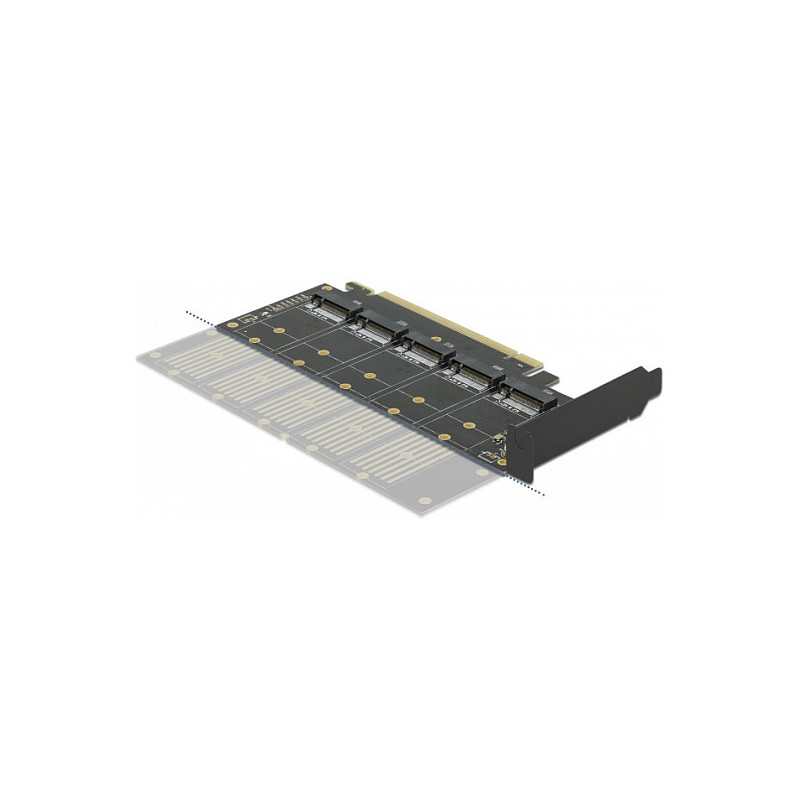

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 3.0
Number of M.2 (B) slots: 5

Design

Feature: Internal
Maximum cable length: 0.5 m
LED indicators: Yes
Feature: Hot-swap
Country of origin: China

Features

Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: Native Command Queuing (NCQ)

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Linux operating systems supported: Yes

Packaging data

Quantity: 1
Cables included: SATA
Feature: Mounting brackets included
Feature: Manual
Package type: Box
