DeLOCK 90433 interface cards / adapter

DeLOCK PCI Express x2 Card for 4 x SATA HDD / SSD RAID. Host interface: PCIe, Output interface: SATA, Expansion card standard: PCIe 2.0. Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64. Width: 120 mm, Depth: 227 mm, Height: 20 mm. Package type: Box

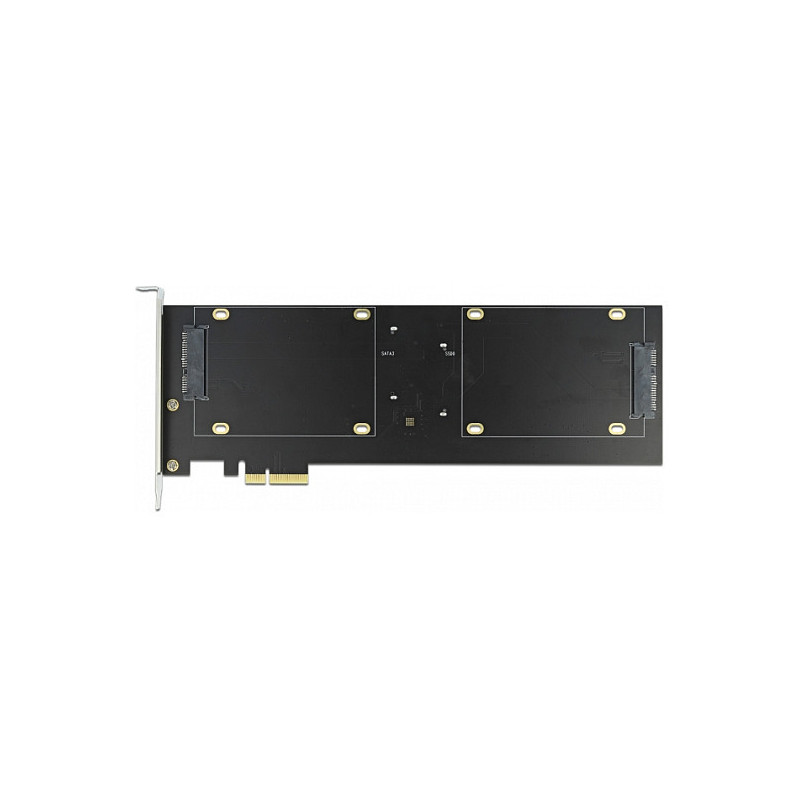

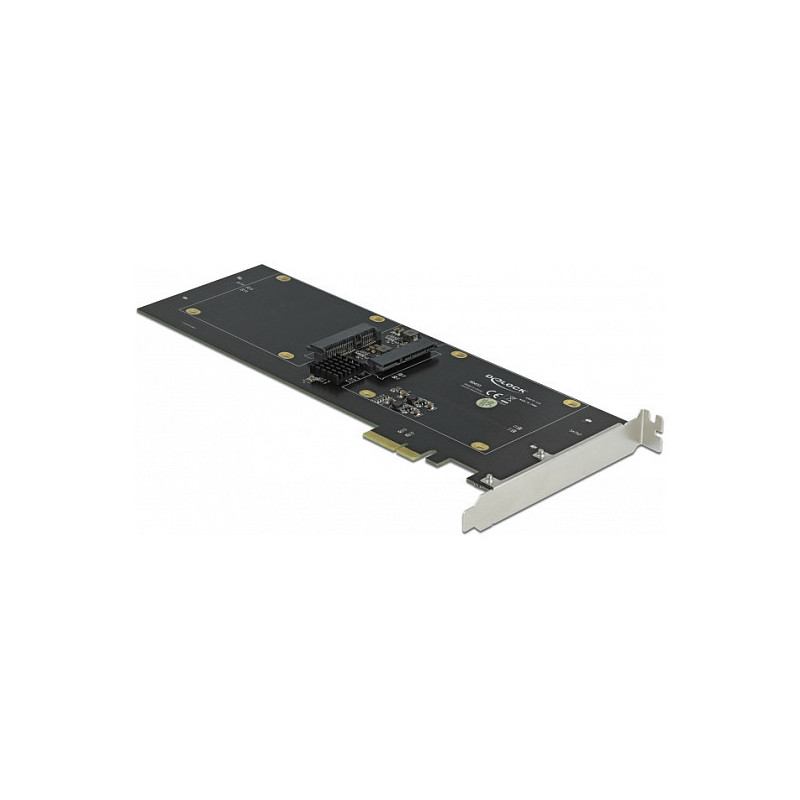

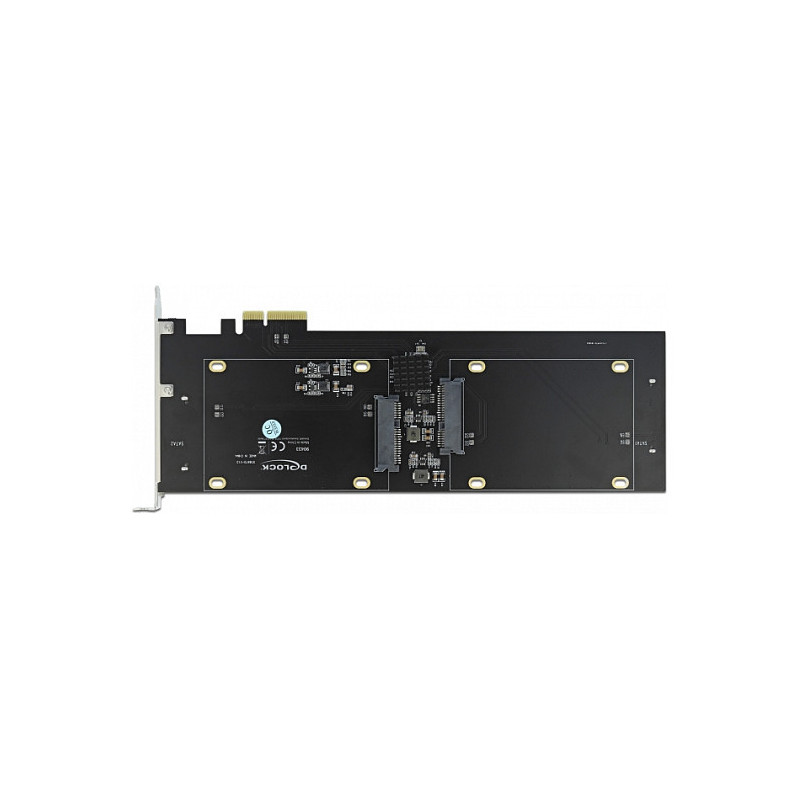

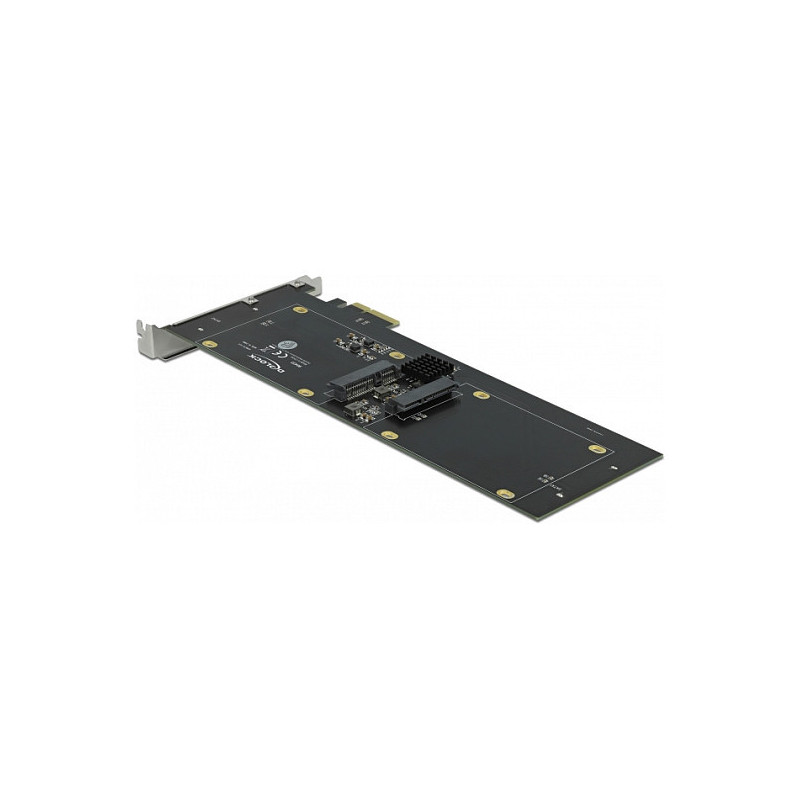

This PCI Express card by Delock expands the PC by four SATA 22 pin ports. Up to four 2.5″ SSD / HDD can be connected to this card. When using more than one SATA port, there is the possibility to use different RAID modes.

HyperDuo support
The card supports a HyperDuo function. With this function it combines an SSD and an HDD to use the advantages of both data mediums, the speed of an SSD and the capacity of an HDD.

RAID support
Furthermore, the card also supports various RAID modes such as RAID 0, 1, 10 or JBOD. Also, if enough SSD or HDD are installed, two different RAID modes can be used at the same time. For example, two hard disks with RAID 0 and two hard disks can be configured in HyperDuo or RAID 0 and RAID 1.

Ports & interfaces

Host interface: PCIe
Output interface: SATA
Expansion card standard: PCIe 2.0
SATA revision: 3.0
Serial ports quantity: 4
Serial interface type: SATA

Design

Feature: Internal
Feature: Hot-swap

Features

Data transfer rate (max): 6 Gbit/s
Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: Native Command Queuing (NCQ)

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Weight & dimensions

Width: 120 mm
Depth: 227 mm
Height: 20 mm

Packaging data

Quantity: 1

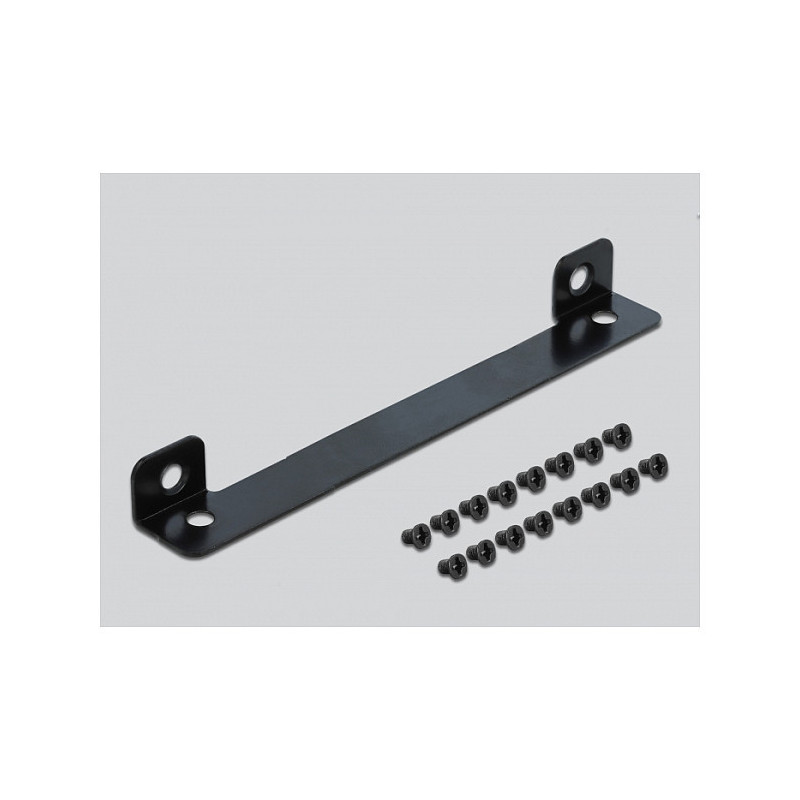

Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box
