DeLOCK 90344 interface cards / adapter

DeLOCK 90344. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB Type-C, Expansion card standard: PCIe 3.0. Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Home x64, Windows 11. Package type: Box

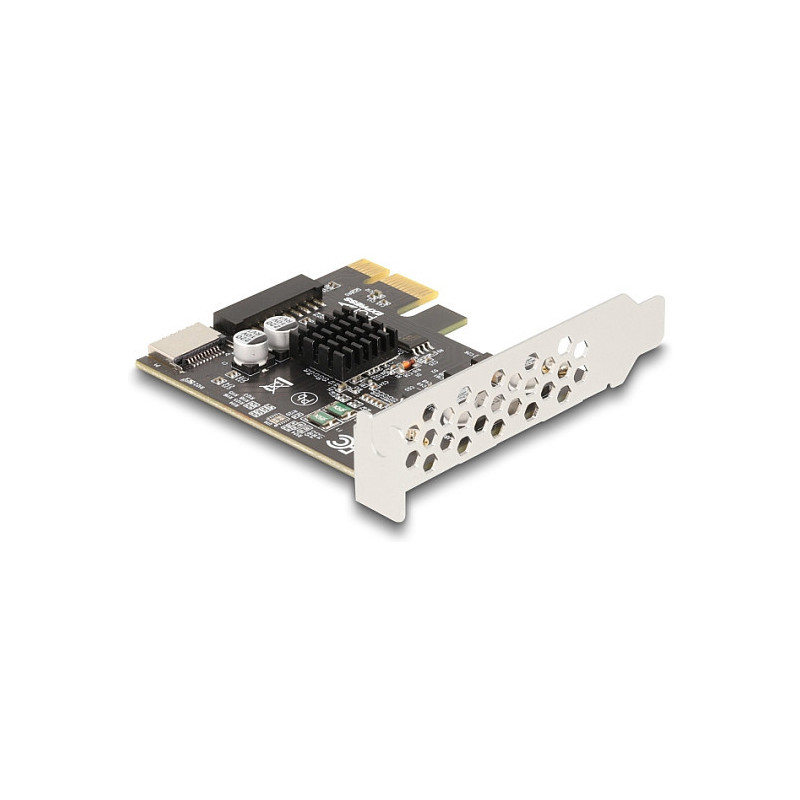

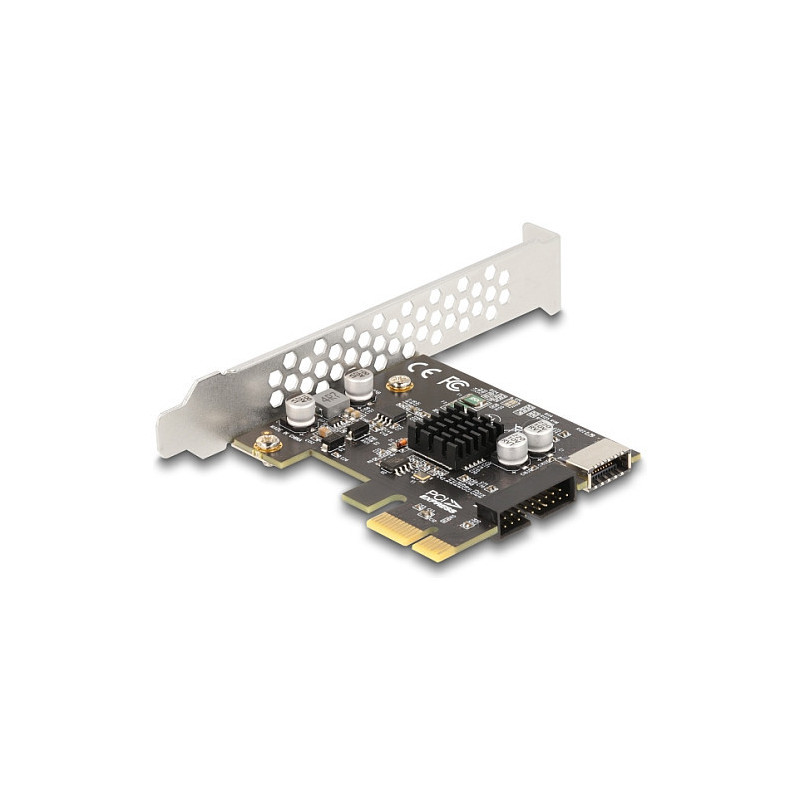

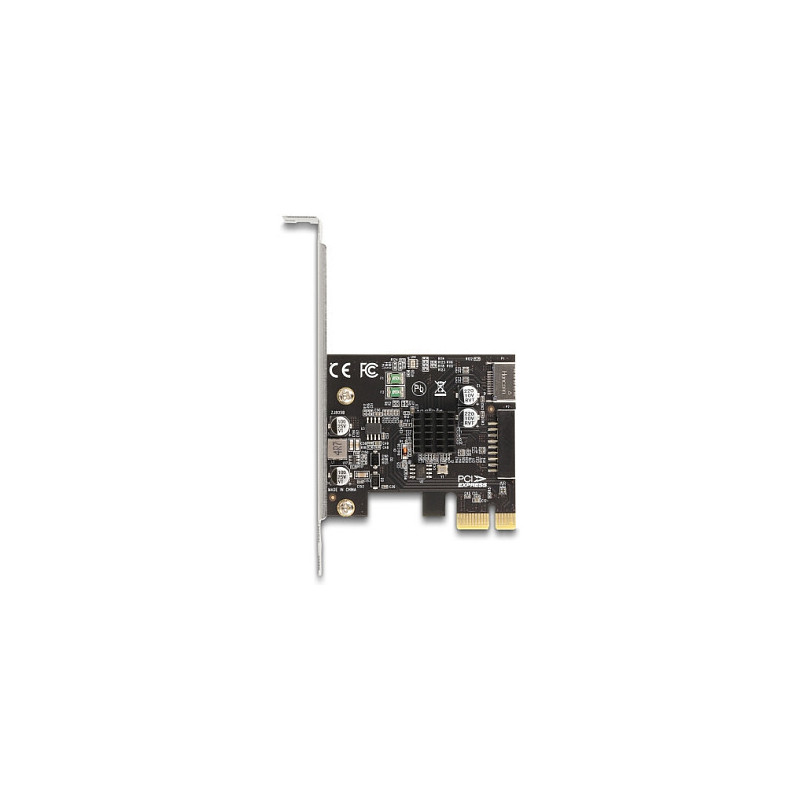

This PCI Express card by Delock expands the PC by one internal USB 5 Gbps Type-E key A female port and one 19 pin USB pin header male. Various cables can be connected to the card, to provide either one USB Type-C™ or one USB Type-A interface.

Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB Type-C
Expansion card standard: PCIe 3.0
PCI Express slots quantity: 1
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1

Design

Feature: Internal

Features

Data transfer rate (max): 5 Gbit/s
Feature: UASP support

System requirements

Windows operating systems supported: Windows 10, Windows 10 Home x64, Windows 11
Linux operating systems supported: Yes

Packaging data

Feature: Mounting brackets included
Feature: Manual
Package type: Box
