DeLOCK 90210 interface cards / adapter

DeLOCK PCI Express x16 Card to 4 x internal NVMe M.2 Key M with heat sink - Bifurcation (LxW: 145 x 111 mm). Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Metallic. Server operating systems supported: Windows Server 2019. Width: 95 mm, Depth: 144 mm, Height: 8 mm. Quantity per pack: 1 pc(s)

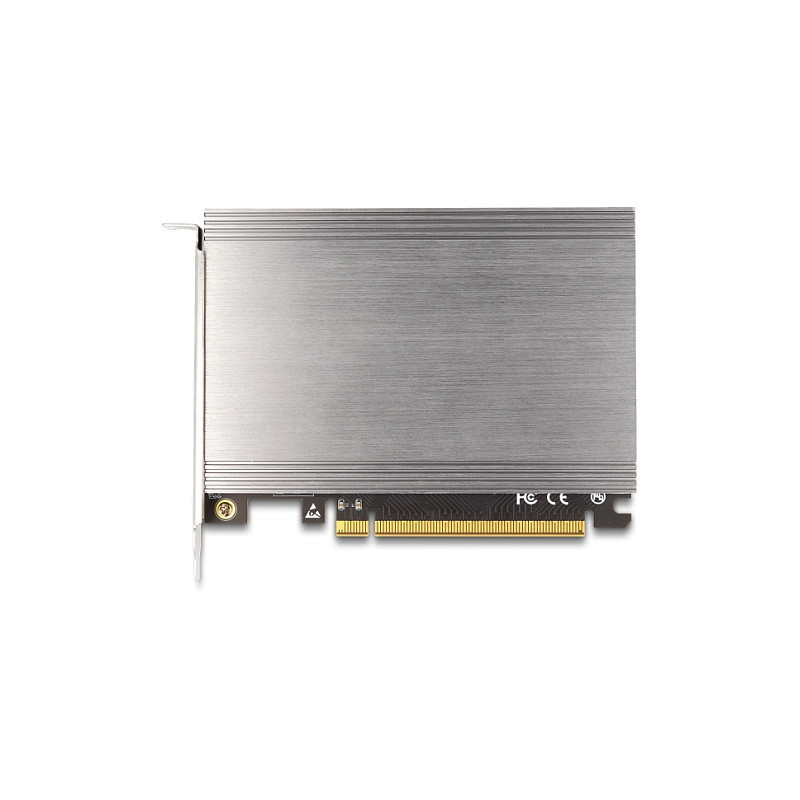

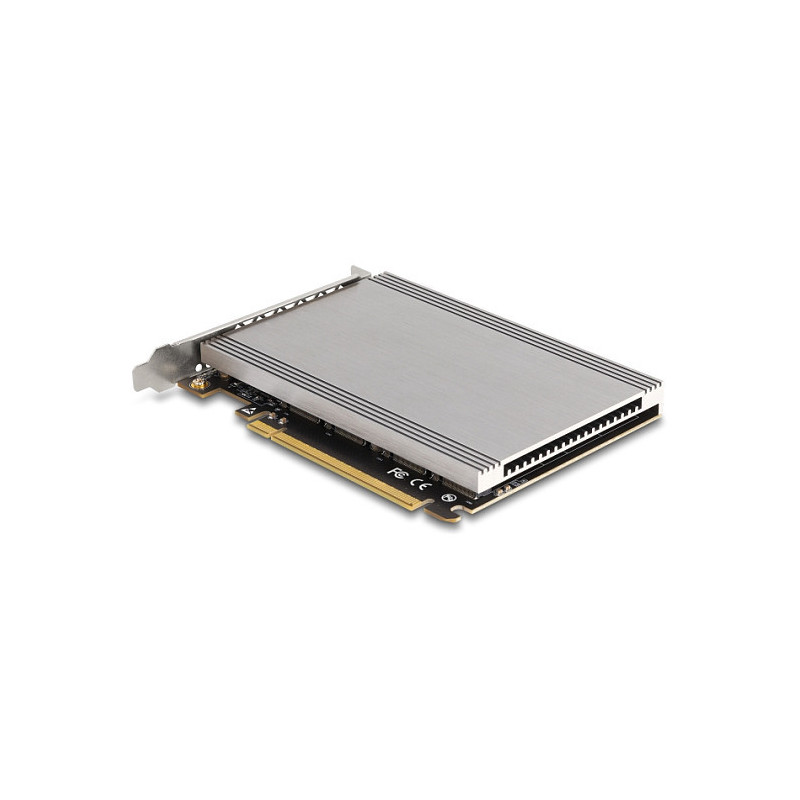

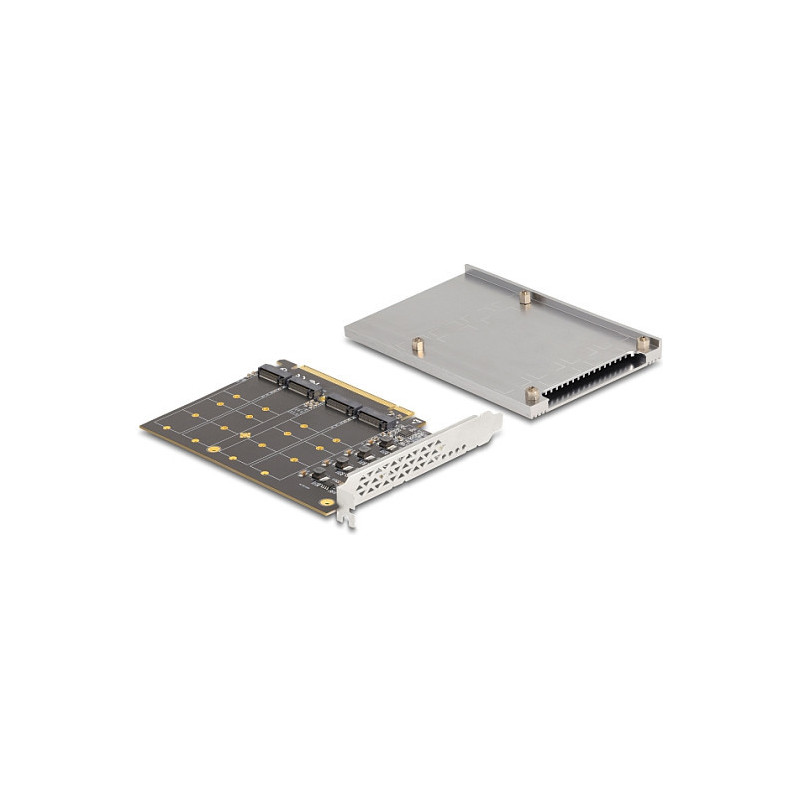

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0
Feature: NVMe
Number of M.2 (M) slots: 4

Design

Feature: Internal
Product colour: Black, Metallic

Features

Feature: S.M.A.R.T. support
Feature: TRIM support

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019

Weight & dimensions

Width: 95 mm
Depth: 144 mm
Height: 8 mm

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
