DeLOCK 90106 interface cards / adapter

DeLOCK PCI Express x4 Card to 2 x external USB 10 Gbps Type-A female - Low Profile Form Factor. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Low-profile. Product colour: Green, Grey, Purpose: PC. Chipset: Asmedia ASM3142, Data transfer rate (max): 10 Gbit/s. Output voltage: 5 V. Quantity per pack: 1 pc(s), Package type: Box

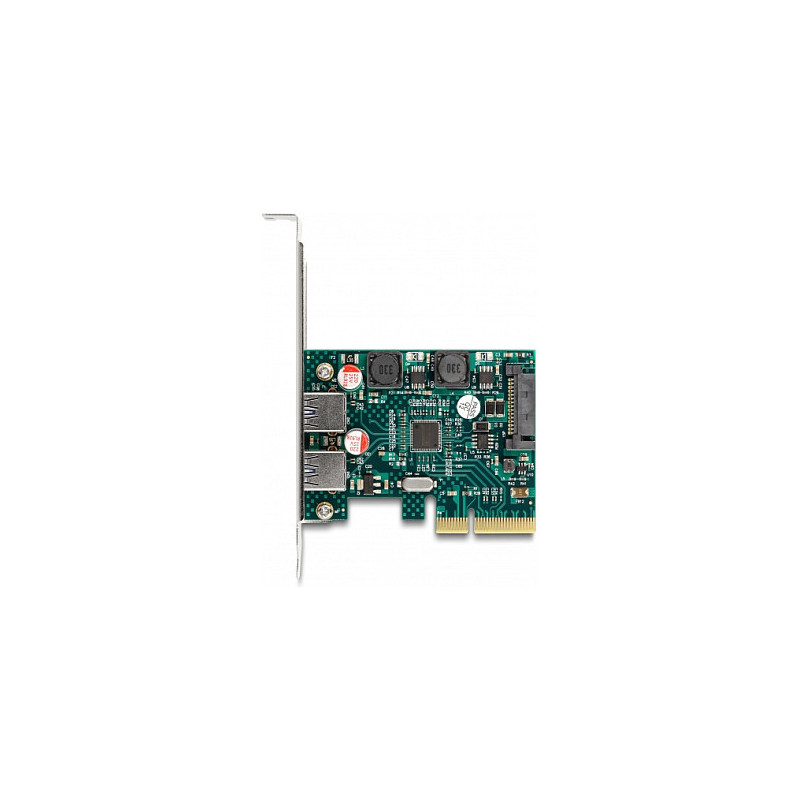

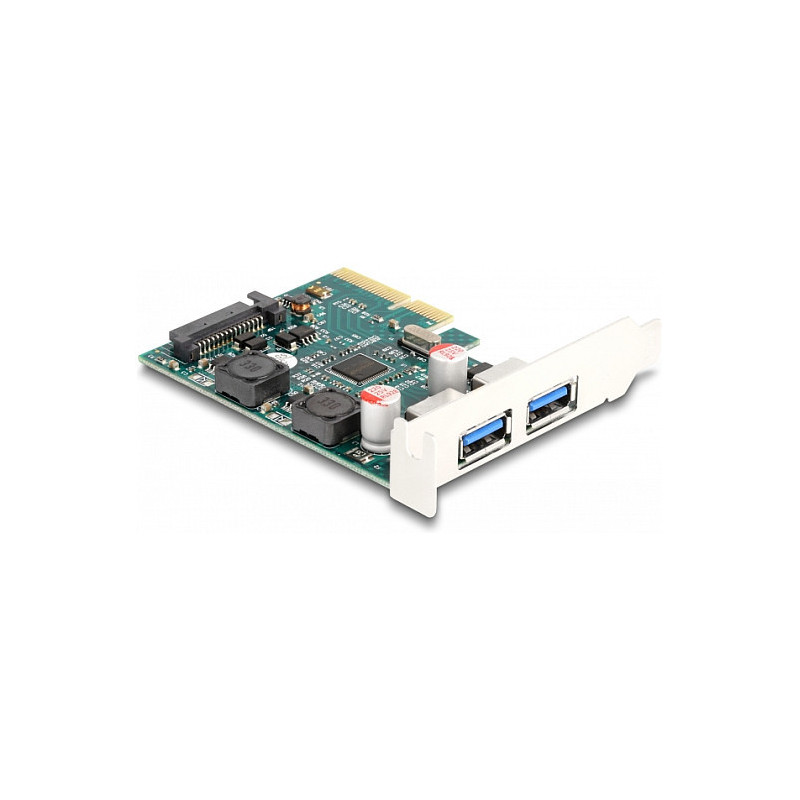

This PCI Express card by Delock expands the PC by two external USB 10 Gbps ports. Different USB Type-A devices, such as docking stations, card readers, external enclosure etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Internal SATA ports quantity: 1
SATA power connector type: SATA 15-pin

Design

Feature: Internal
Product colour: Green, Grey
Purpose: PC

Features

Chipset: Asmedia ASM3142
Data transfer rate (max): 10 Gbit/s
Feature: UASP support

Power

Output voltage: 5 V

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Packaging data

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
Feature: Manual
Package type: Box
