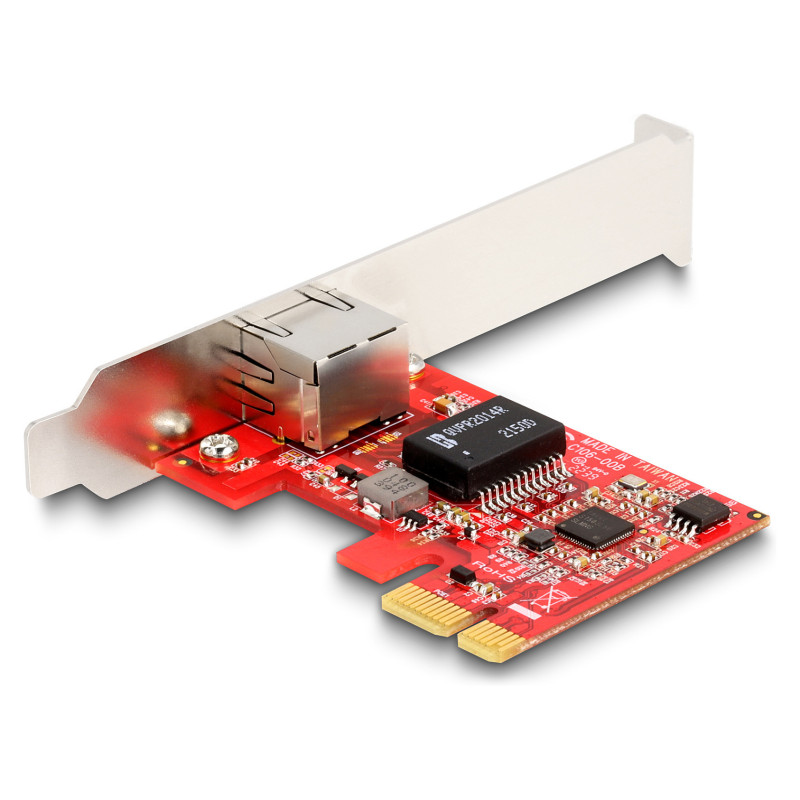

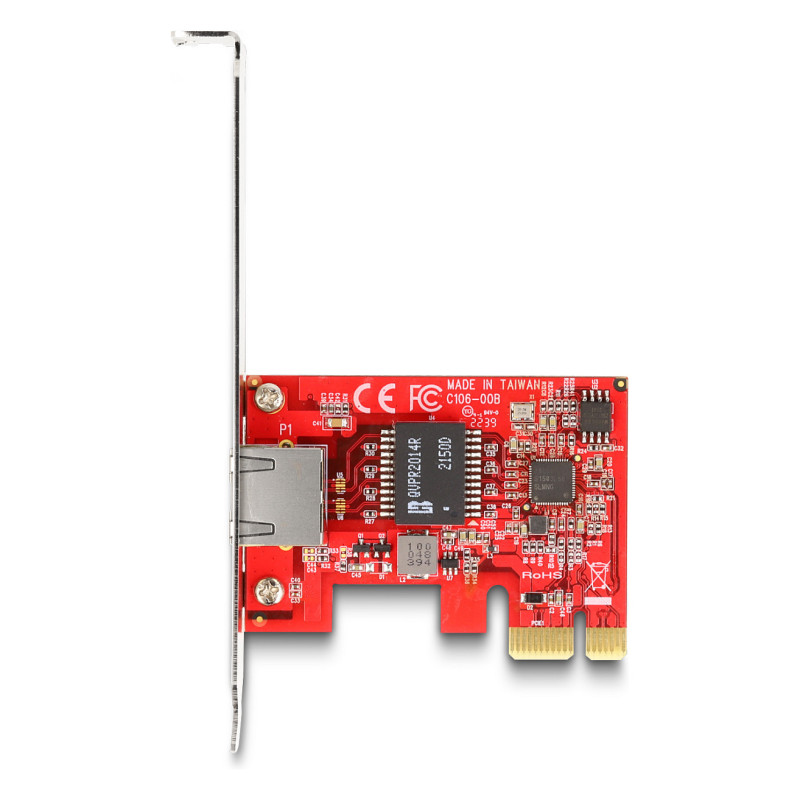

DeLOCK 90100 network card

DeLOCK PCI Express x1 Card to 1 x RJ45 2.5 Gigabit LAN i225 NBASE-T - Low Profile Form Factor. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s
The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps .
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Ports interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: NBase-T
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
LAN controller: Intel I225-V

Design

Feature: Internal
Chipset: Intel I225-V
LED indicators: Activity, Link
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Linux Kernel 5.15

Packaging content

Feature: Mounting brackets included
Feature: Manual
