DeLOCK 90091 interface cards / adapter

DeLOCK PCI Express 4.0 x8 Card to 2 x internal U.2 NVMe SFF-8639 - Bifurcation. Host interface: PCIe, Output interface: U.2, Expansion card standard: PCIe 4.0. Product colour: Green, Grey, Cooling type: Passive. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64, Server operating systems supported: Windows Server 2019. Quantity per pack: 1 pc(s), Package type: Box

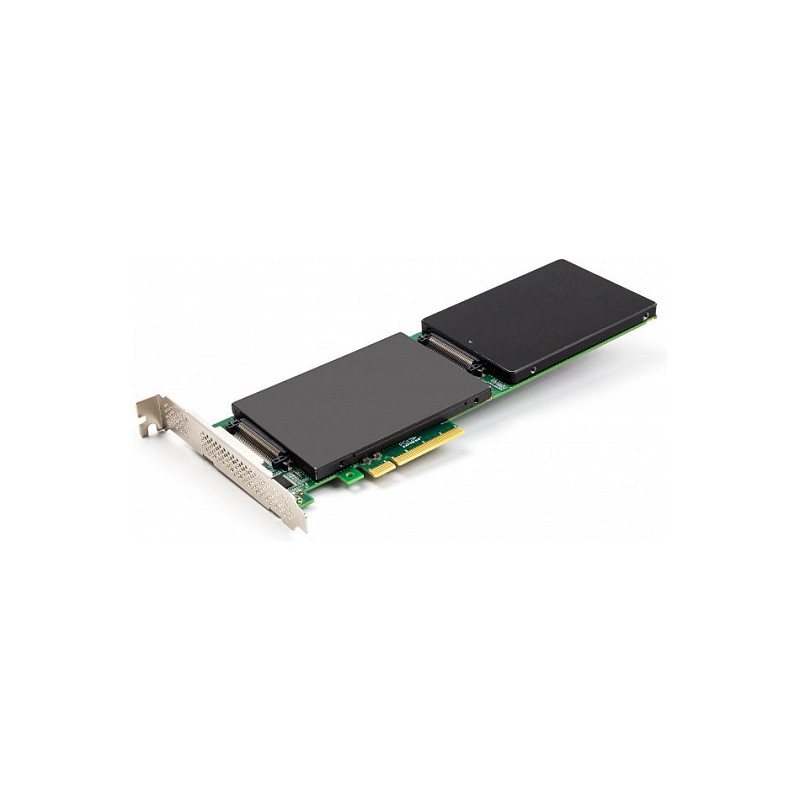

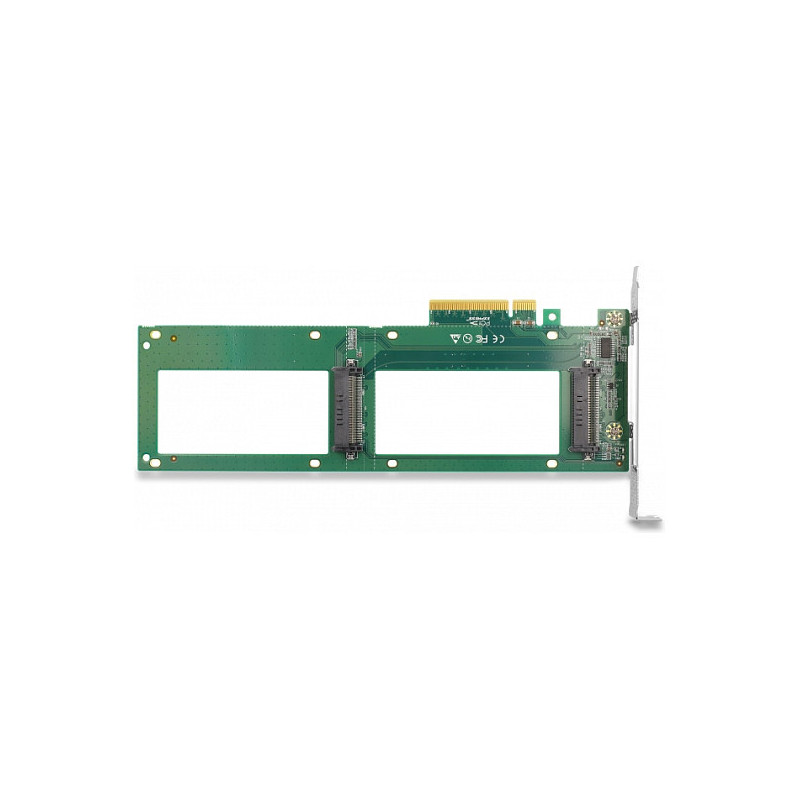

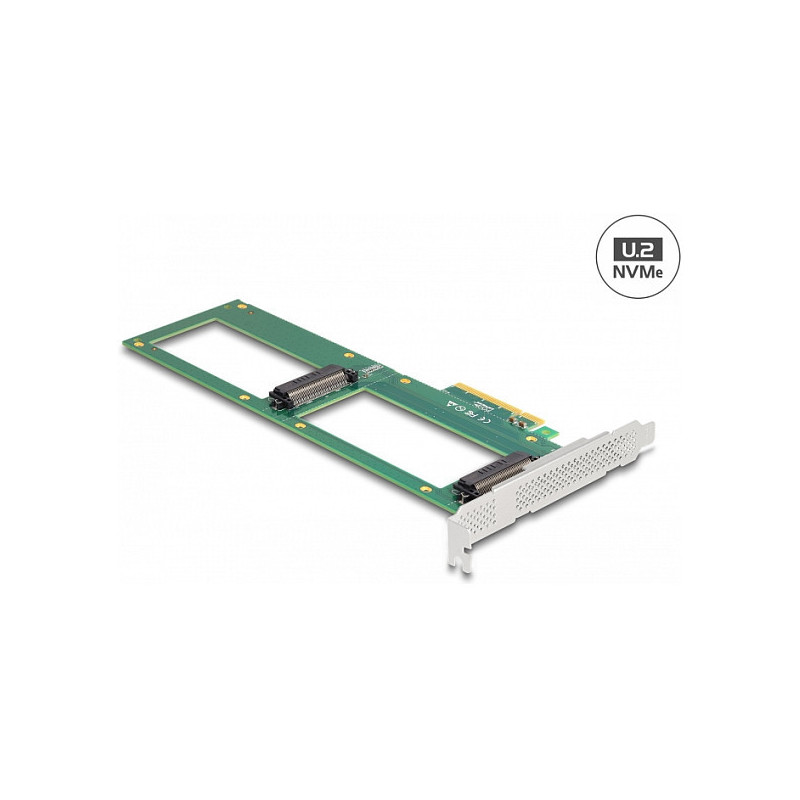

This PCI Express card by Delock expands the PC by two U.2 interfaces. It supports the connection of up to two U.2 SSDs in 2.5″ format.

PCIe Bifurcation

The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note

Without PCIe bifurcation only the first SFF-8639 port of the card can be used.

Ports & interfaces

Host interface: PCIe
Output interface: U.2
Expansion card standard: PCIe 4.0
Feature: NVMe
Connector(s): SFF-8639

Design

Feature: Internal
Product colour: Green, Grey
Cooling type: Passive
LED indicators: Yes

Features

Feature: S.M.A.R.T. support
Feature: TRIM support
PCI Express CEM revision: 4.0

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package type: Box
