DeLOCK 90076 interface cards / adapter

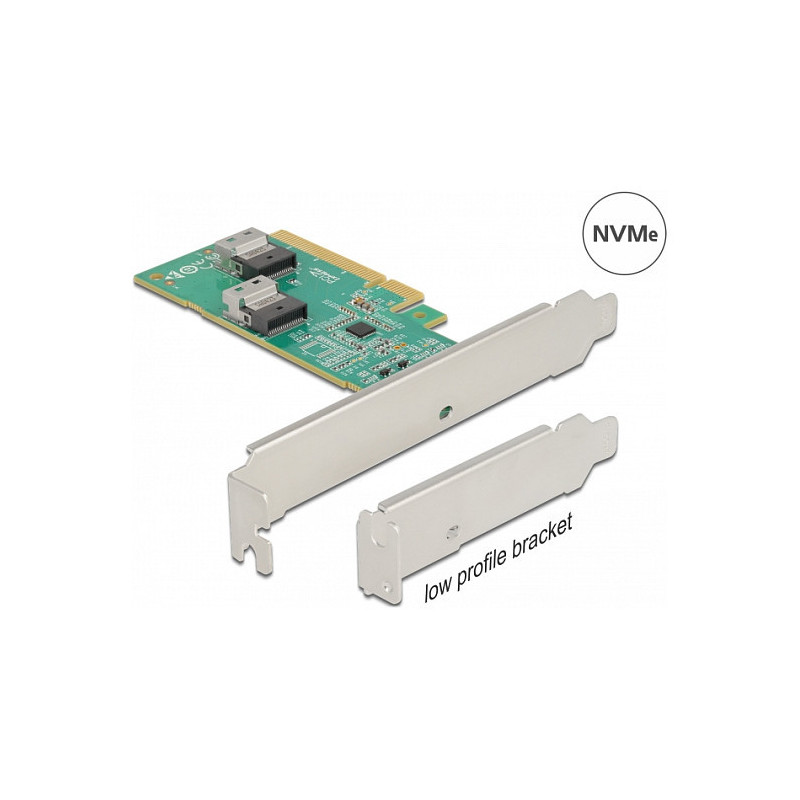

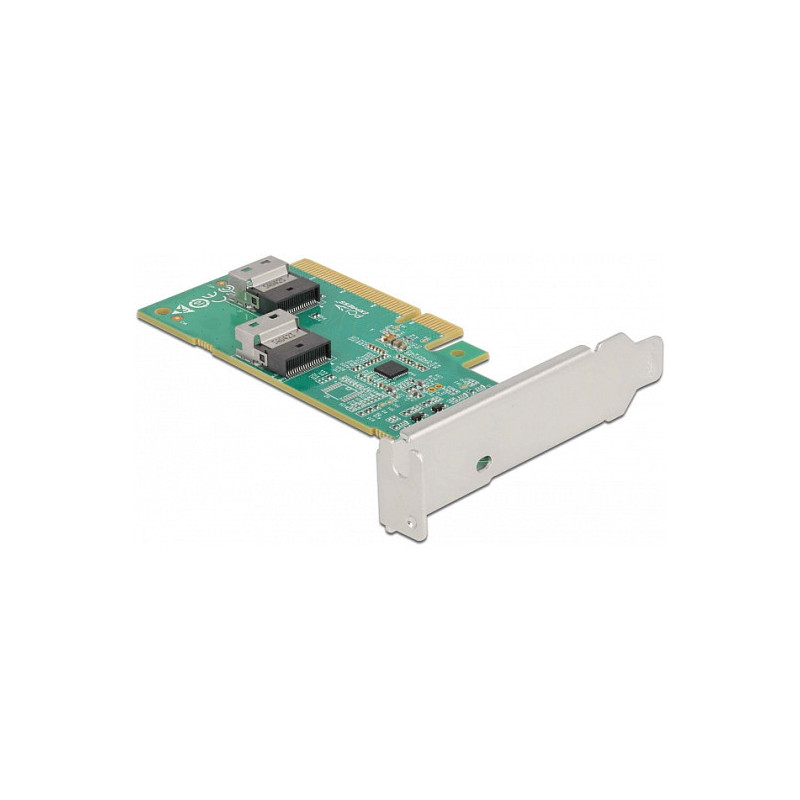

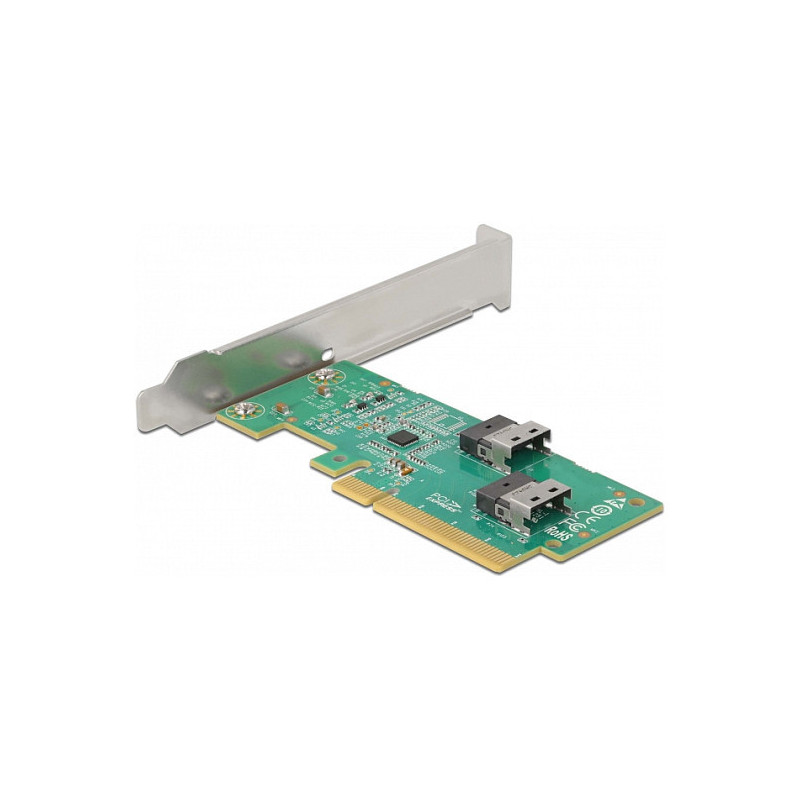

DeLOCK PCI Express 4.0 x8 Card to 2 x internal SFF-8654 4i NVMe - Bifurcation - Low Profile Form Factor. Host interface: PCIe, Output interface: SFF-8654, Expansion card form factor: Low-profile. Product colour: Stainless steel, Country of origin: China. Connector 1 gender: Female, Connector 2 gender: Female, Data transfer rate (max): 64 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Linux operating systems supported: Linux Kernel 5.8, Server operating systems supported: Windows Server 2019. Quantity per pack: 1 pc(s), Package type: Box

This PCI Express card by Delock expands the PC by two SFF-8654 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. The card transmits PCI Express signals using the NVMe protocol.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Ports & interfaces

Host interface: PCIe
Output interface: SFF-8654
Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe

Design

Feature: Internal
Product colour: Stainless steel
LED indicators: Yes
Country of origin: China

Features

Connector 1 gender: Female
Connector 2 gender: Female
Data transfer rate (max): 64 Gbit/s
Feature: S.M.A.R.T. support
Feature: TRIM support

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Linux Kernel 5.8
Server operating systems supported: Windows Server 2019

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package type: Box
