DeLOCK 90054 interface cards / adapter

DeLOCK PCI Express x16 Card to 4 x internal NVMe M.2 Key M with heat sink - Bifurcation. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Purpose: PC, Cooling type: Passive. Windows operating systems supported: Windows 10, Windows 8.1, Server operating systems supported: Windows Server 2016. Package type: Box

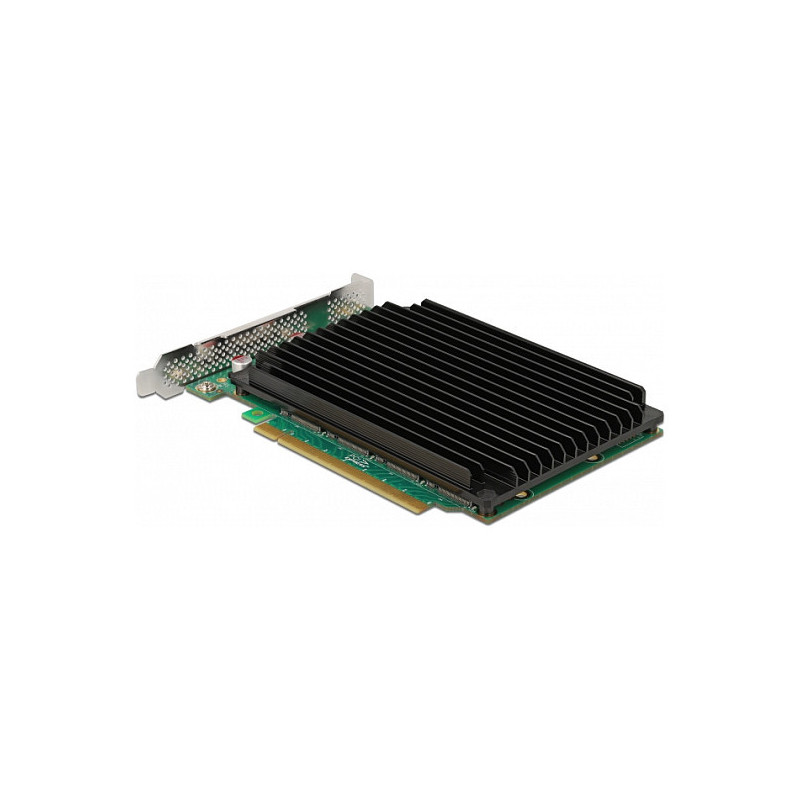

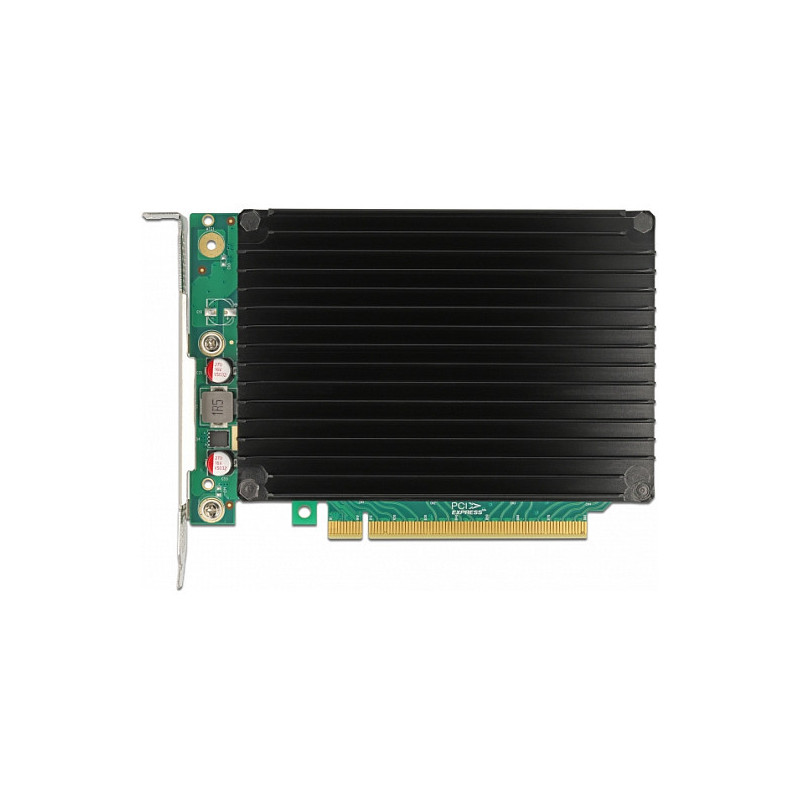

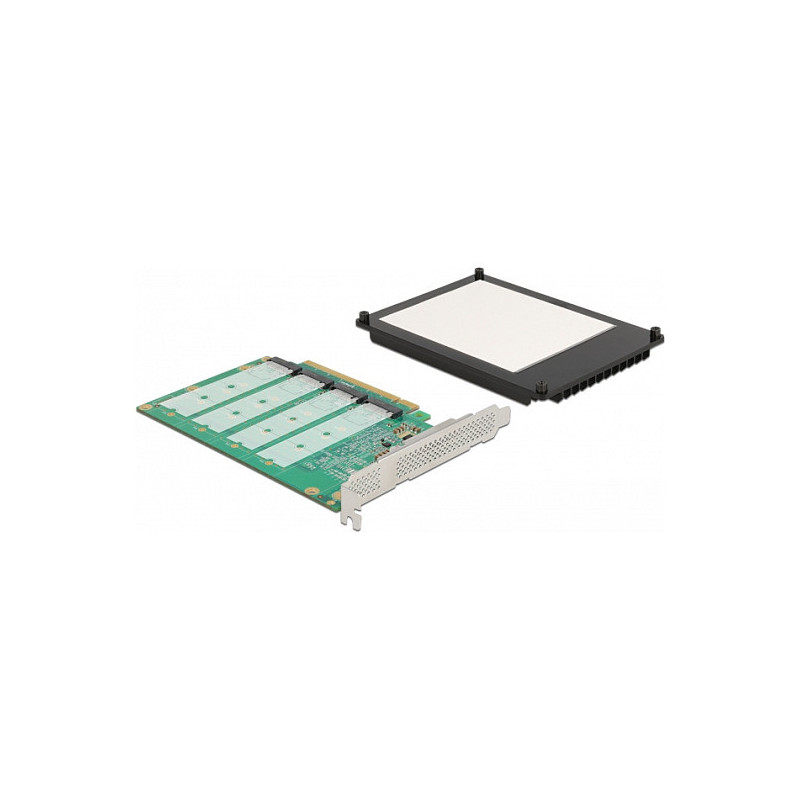

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0
Feature: NVMe
Number of M.2 (M) slots: 4

Design

Feature: Internal
Product colour: Black
Purpose: PC
Cooling type: Passive
LED indicators: Yes
Country of origin: China

Features

Feature: S.M.A.R.T. support
Feature: TRIM support

System requirements

Windows operating systems supported: Windows 10, Windows 8.1
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016

Packaging data

Quantity: 1
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
