DeLOCK 90046 interface cards / adapter

DeLOCK PCI Express x1 Card to 2 x Serial RS-232. Host interface: PCIe, Output interface: RS-232, Expansion card standard: PCIe 2.0. Purpose: PC, Country of origin: China. Data transfer rate (max): 0.0009216 Gbit/s, FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, 9. Windows operating systems supported: Windows 10, Windows 8, Windows 8.1. Quantity per pack: 1 pc(s), Package type: Box

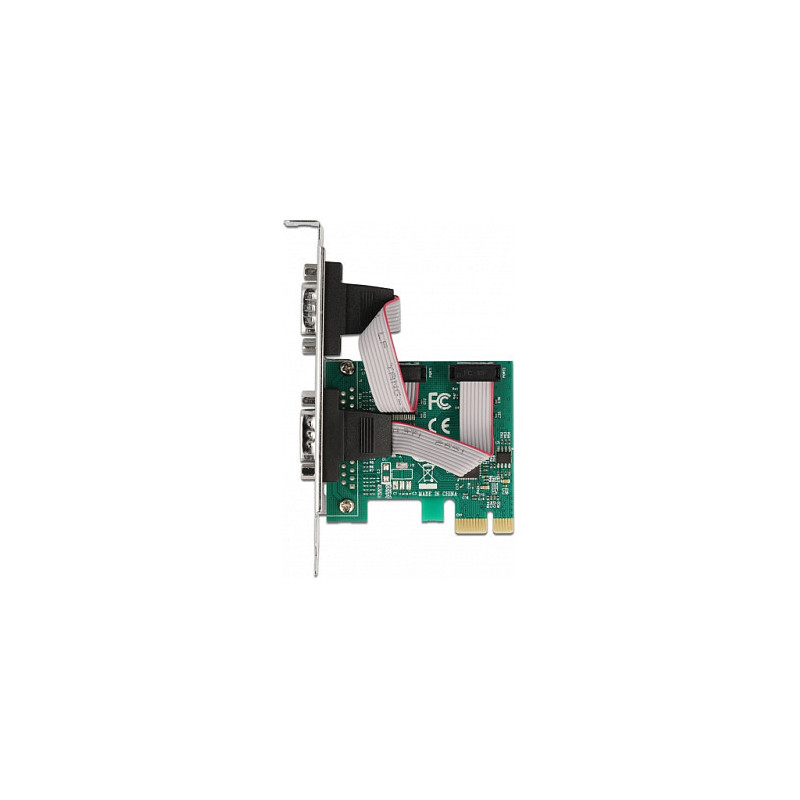

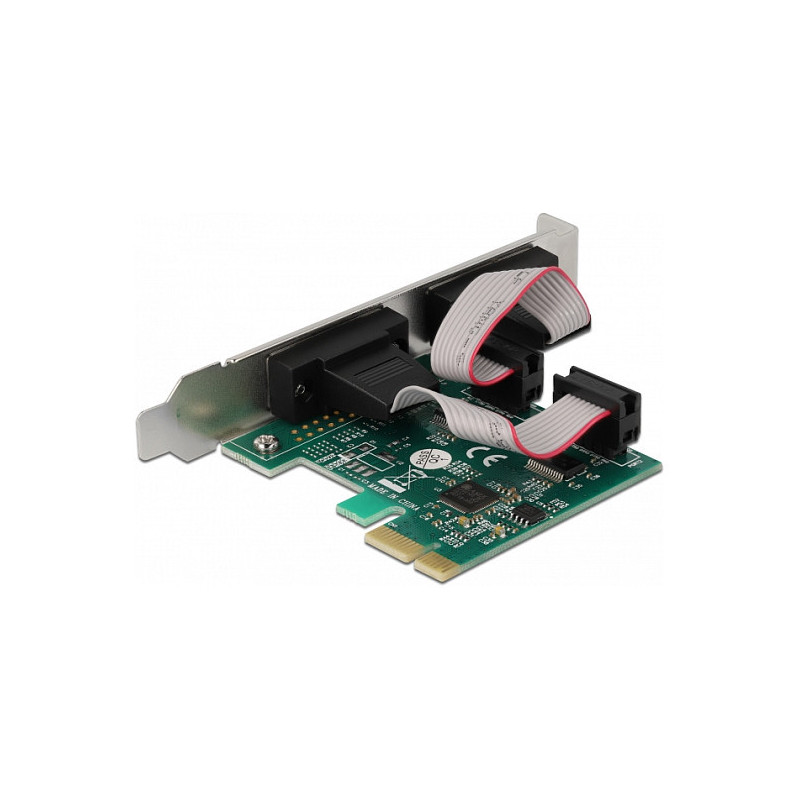

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

Low Profile Form Factor

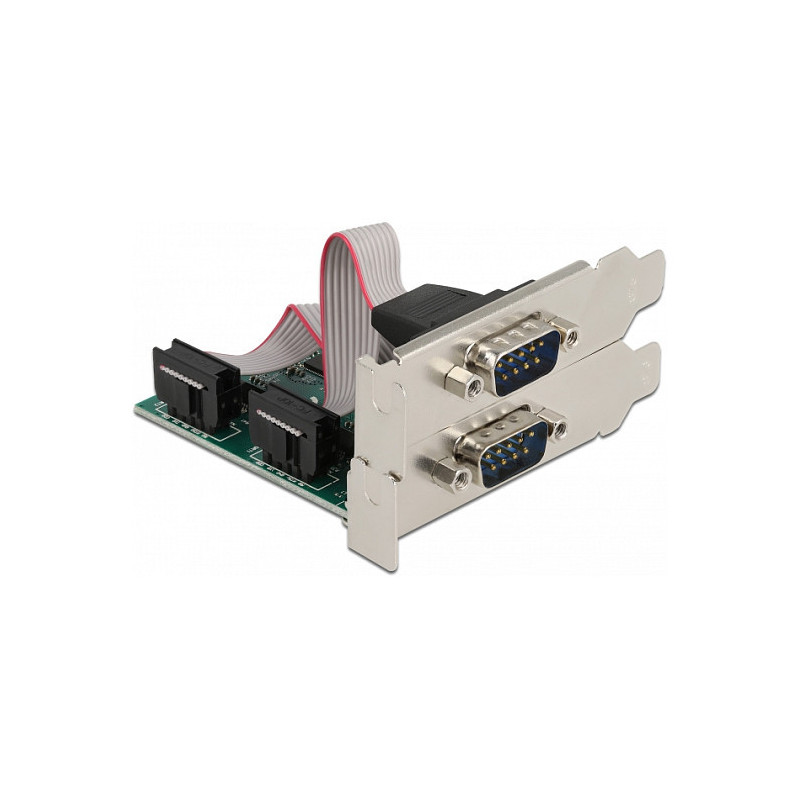

By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Output interface: RS-232
Expansion card standard: PCIe 2.0
Serial ports quantity: 2
Serial interface type: RS-232

Design

Feature: Internal
Purpose: PC
Country of origin: China

Features

Data transfer rate (max): 0.0009216 Gbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Feature: Flow control support
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): 0 - 70 °C

System requirements

Windows operating systems supported: Windows 10, Windows 8, Windows 8.1

Packaging data

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box
