DeLOCK 90000 interface cards / adapter

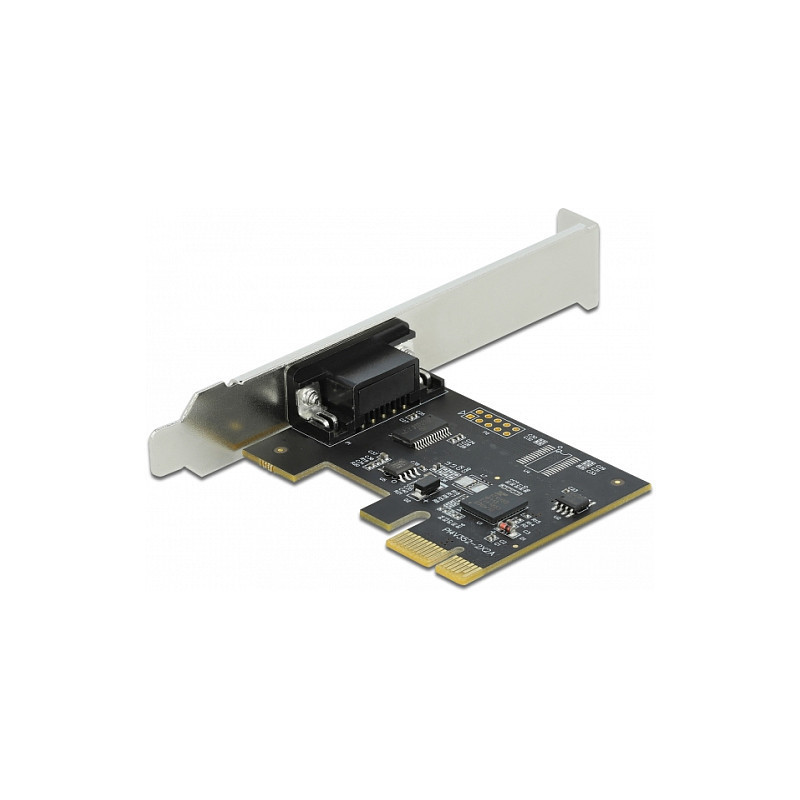

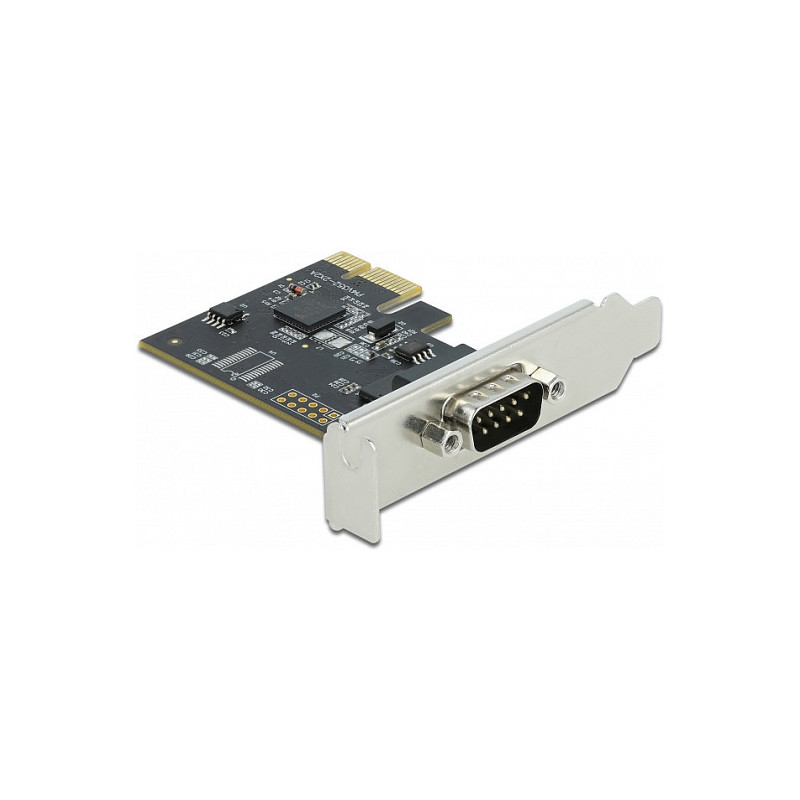

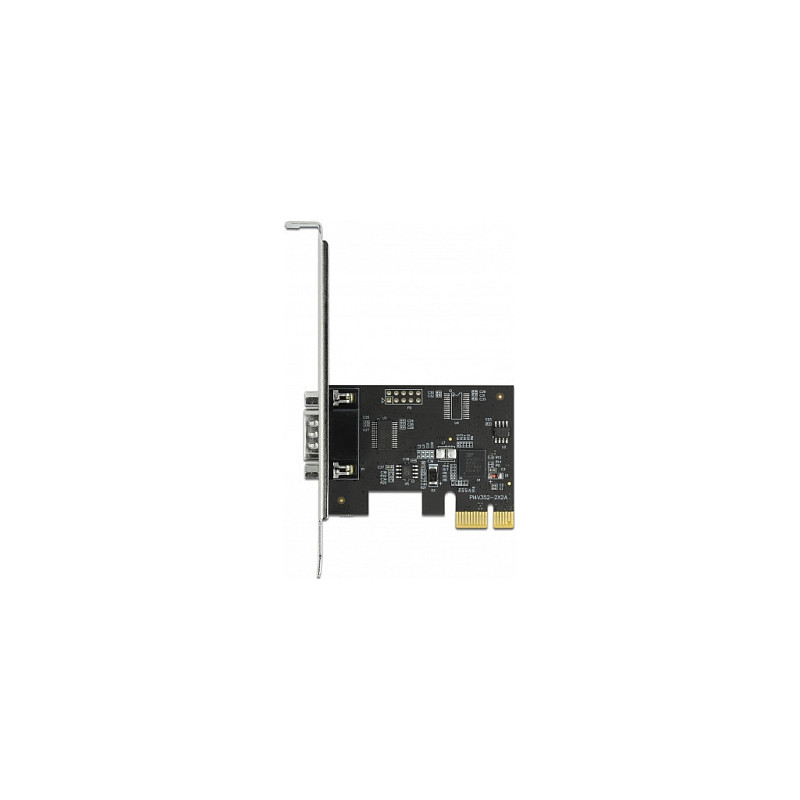

DeLOCK PCI Express x1 Card to 1 x Serial RS-232. Host interface: PCIe, Output interface: RS-232, Expansion card standard: PCIe 2.0. FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, Stop bits: 1, 1.5, 2. Windows operating systems supported: Windows 10, Windows 8.1. Width: 45 mm, Depth: 64 mm. Package type: Box

The Delock PCI Express card expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Output interface: RS-232
Expansion card standard: PCIe 2.0
Serial ports quantity: 1
Serial interface type: RS-232

Design

Feature: Internal

Features

FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Full duplex
Feature: Flow control support
Parity bit: Even, Mark, Odd, Space
Flow Control type: RTS/CTS, XON/XOFF
Feature: Bidirectional

System requirements

Windows operating systems supported: Windows 10, Windows 8.1

Weight & dimensions

Width: 45 mm
Depth: 64 mm

Packaging data

Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: User guide
Package type: Box
