DeLOCK 89938 interface cards / adapter

DeLOCK PCI Express x1 Card to 4 x Serial RS-232 with voltage supply. Host interface: PCIe, Expansion card form factor: Full-height / Low-profile, Expansion card standard: PCIe 1.1. Product colour: Green. Chipset: WCH384L, Baud rate: 230.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1. Quantity per pack: 1 pc(s), Cables included: Serial

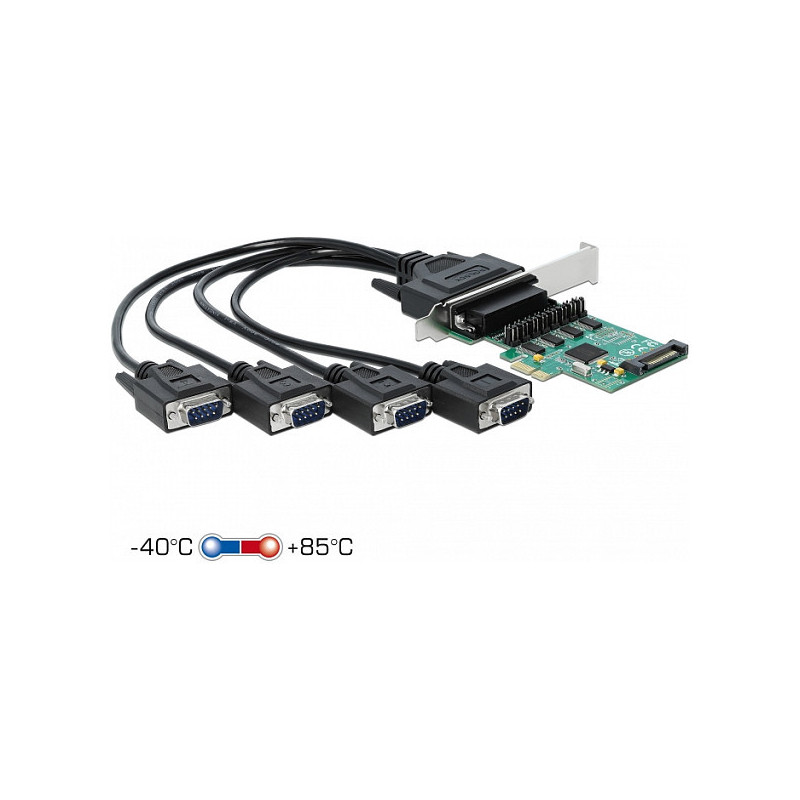

The PCI Express card by Delock expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V.

Low Profile Form Factor

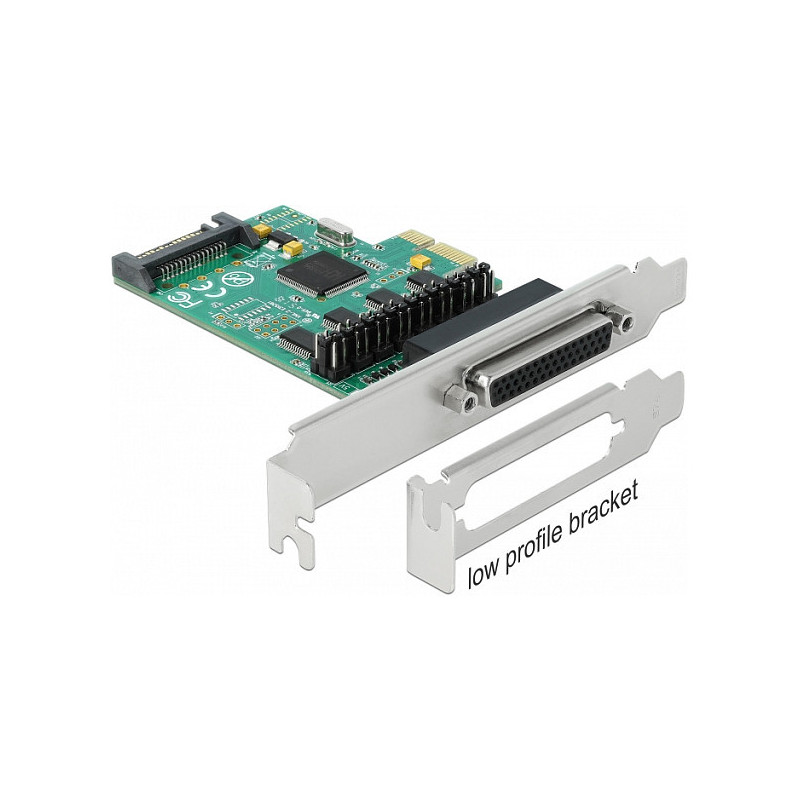

By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 1.1
Internal SATA ports quantity: 1

Design

Feature: Internal
Product colour: Green

Features

Chipset: WCH384L
Baud rate: 230.4 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 4, 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Flow control support

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1

Packaging data

Quantity per pack: 1 pc(s)
Quantity: 1
Cables included: Serial
Feature: Mounting brackets included
Feature: User guide
